1997 Suzuki VS800GLV Cylinder Head Diagram

← All diagrams

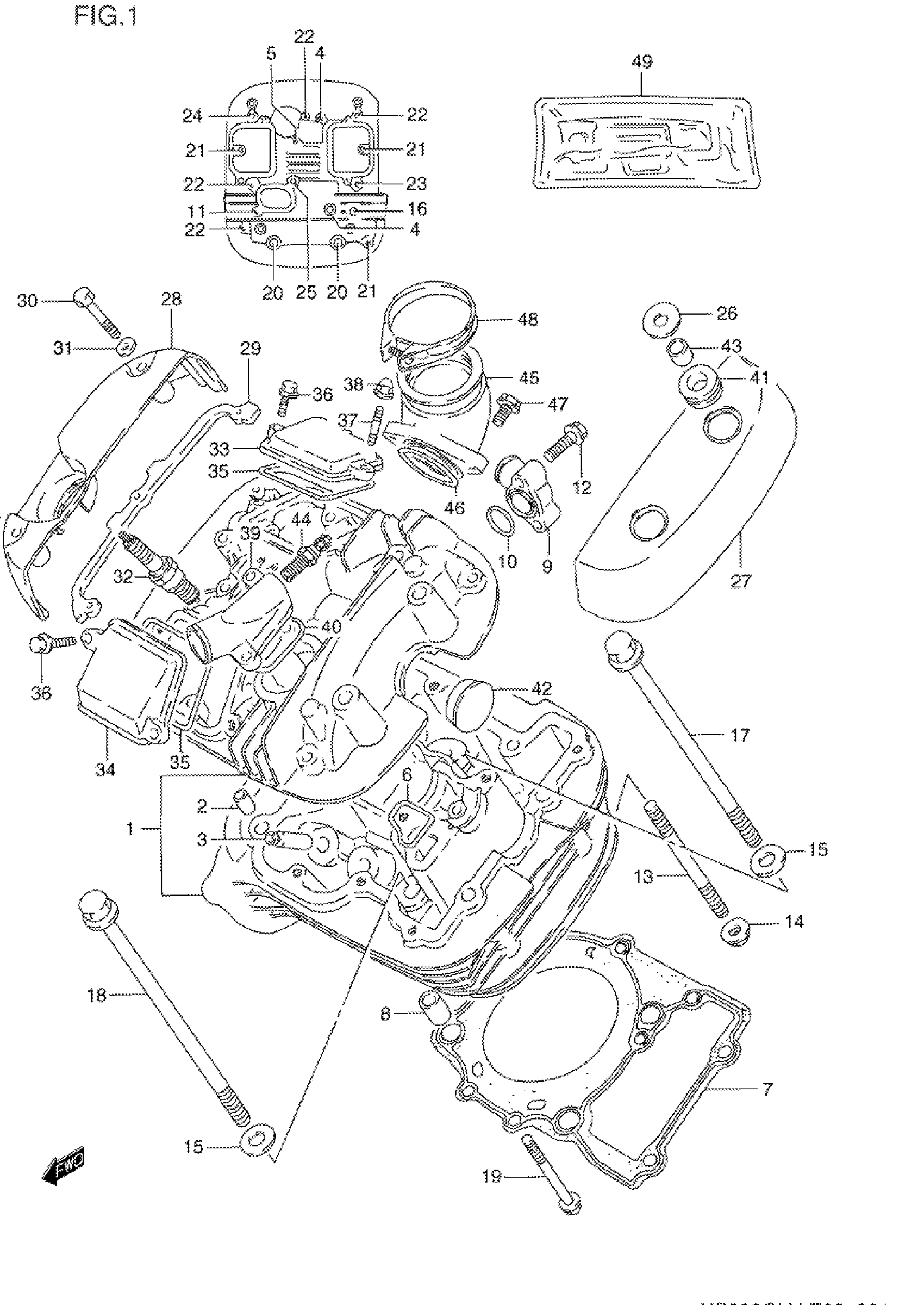

Find the part on the Cylinder Head diagram for your 1997 Suzuki VS800GLV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki VS800GLV Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER FRONT | MODEL N/P/R This part replaces 11101-38A01.

11101-38A02

1
Out of stock

1

HEAD ASSY, CYLINDER FRONT | MODEL S/T/V; Includes Item(s) 2 - 5

11101-38A02

1
Out of stock

2

GUIDE, VALVE (OS 0.3) This part replaces 11115-38A71.

11115-41F70

4
Out of stock

3

PIN (11X14) | MODEL N/P/R/S/T This part replaces 09206-11011.

09206-11004

2
Out of stock

3

PIN | MODEL V

09206-11004

2
Out of stock

4

BOLT (6X50)

09103-06101

2
Out of stock

5

BOLT (6X55)

09103-06102

1
Out of stock

6

GASKET, CYLINDER HEAD COVER

11123-38A00

1
Out of stock

7

GASKET, CYLINDER HEAD FRONT

11141-45C00

1
Out of stock

8

PIN | MODEL N/P This part replaces 09206-13001.

04211-13189

2
Out of stock

8

PIN | MODEL R/S/T/V

04211-13189

2
Out of stock

9

UNION, CYLINDER HEAD WATER | MODEL N This part replaces 11169-38A00.

11169-45C10

1
Out of stock

9

UNION, CYLINDER HEAD WATER | MODEL P/R/S/T/V

11169-45C10

1
Out of stock

10

1

$5.01

In stock

11

BOLT

01550-06207

1
Out of stock

12

BOLT | MODEL N/P/R

01547-06257

2
Out of stock

12

BOLT, FINAL GEAR CASE COVER | MODEL S/T/V This part replaces 01547-06253.

01547-0625B

2
Out of stock

13

STUD BOLT (L:40)

09108-08144

1
Out of stock

14

NUT

08316-10087

1
Out of stock

15

WASHER | MODEL N/P/R/S/T

09160-10039

4
Out of stock

15

WASHER (10.5X22X2.3) | MODEL V This part replaces 09160-10060.

09160-10039

4
Out of stock

16

BOLT (8X140)

09103-08040

1
Out of stock

17

BOLT (10X155)

09103-10133

2
Out of stock

18

BOLT (10X165)

09103-10134

2
Out of stock

19

BOLT

01550-06407

2
Out of stock

20

BOLT (8X245)

09103-08180

2
Out of stock

21

BOLT

01550-06257

3
Out of stock

22

BOLT

01550-06307

4
Out of stock

23

BOLT

07120-06307

1
Out of stock

24

BOLT

01550-06407

1
Out of stock

25

BOLT (6X55)

09103-06102

1
Out of stock

26

WASHER This part replaces 09160-08098.

09160-08130

2
Out of stock

27

CAP, HEAD COVER LH

11171-38A02

1
Out of stock

28

CAP, HEAD COVER RH

11172-38A03

1
Out of stock

29

CUSHION, HEAD COVER CAP

11272-38A00

1
Out of stock

30

BOLT (L:40) | MODEL N/P/R

01204-06407

2
Out of stock

30

2

$4.70

In stock

31

WASHER | MODEL N/P/R

08322-01067

2
Out of stock

32

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

1
Out of stock

32

SPARK PLUG (DENSO,X24EPR-U9) This part replaces 09482-00335-111.

09482-00335

1
Out of stock

32

SPARK PLUG (NGK,DPR7EA-9) | OPT

09482-00354

1
Out of stock

32

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355-111.

09482-00354

1
Out of stock

32

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

1
Out of stock

32

SPARK PLUG (DENSO,X27EPR-U9) | OPT This part replaces 09482-00331-111.

09482-00331

1
Out of stock

33

CAP, INSPECTION INTAKE | MODEL N This part replaces 11175-38A01.

11175-38A11

1
Out of stock

33

CAP, INSPECTION INTAKE | MODEL P/R/S/T/V This part replaces 11175-38A10.

11175-38A11

1
Out of stock

34

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 11176-38A01.

11176-38A02

1
Out of stock

34

CAP, INSPECTION EXHAUST | MODEL P/R/S/T/V This part replaces 11176-38A10.

11176-38A11

1
Out of stock

35

GASKET, INSPECTION CAP

11177-38A00

2
Out of stock

36

BOLT

01547-06207

3
Out of stock

37

1

$2.05

In stock

38

NUT

08313-20067

1
Out of stock

39

UNION, WATER OUTLET | MODEL N This part replaces 11181-38A01.

11181-38A02

1
Out of stock

39

UNION, WATER OUTLET | MODEL P/R/S/T/V

11181-38A02

1
Out of stock

40

GASKET, WATER UNION

11182-38A00

1
Out of stock

41

CUSHION

09320-13015

2
Out of stock

42

PLUG, HEAD | MODEL N/P This part replaces 09241-30006.

09241-30004

1
Out of stock

42

PLUG, CYLINDER HEAD | MODEL R/S/T/V

09241-30004

1
Out of stock

43

BUSH

09301-08007

2
Out of stock

44

SENDING UNIT, WATER TEMP | MODEL N/P/R

34850-05A10

1
Out of stock

44

SENDING UNIT, WATER TEMP | MODEL S/T/V

34850-50A00

1
Out of stock

46

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

1
Out of stock

47

BOLT | MODEL N/P This part replaces 01517-06164.

01550-0616A

2
Out of stock

47

BOLT | MODEL R/S/T/V This part replaces 01550-06163.

01550-0616A

2
Out of stock

48

CLAMP, INTAKE PIPE | MODEL N/P This part replaces 13170-05A00.

09402-52501

1
Out of stock

48

CLAMP, INTAKE PIPE | MODEL R/S/T/V

09402-52501

1
Out of stock

49

GASKET SET | MODEL N/P This part replaces 11402-45811.

11402-45818

1
Out of stock

49

GASKET SET | MODEL R This part replaces 11402-45812.

11402-45818

1
Out of stock

49

GASKET SET | MODEL S/T/V This part replaces 11402-45814.

11402-45818

1
Out of stock
