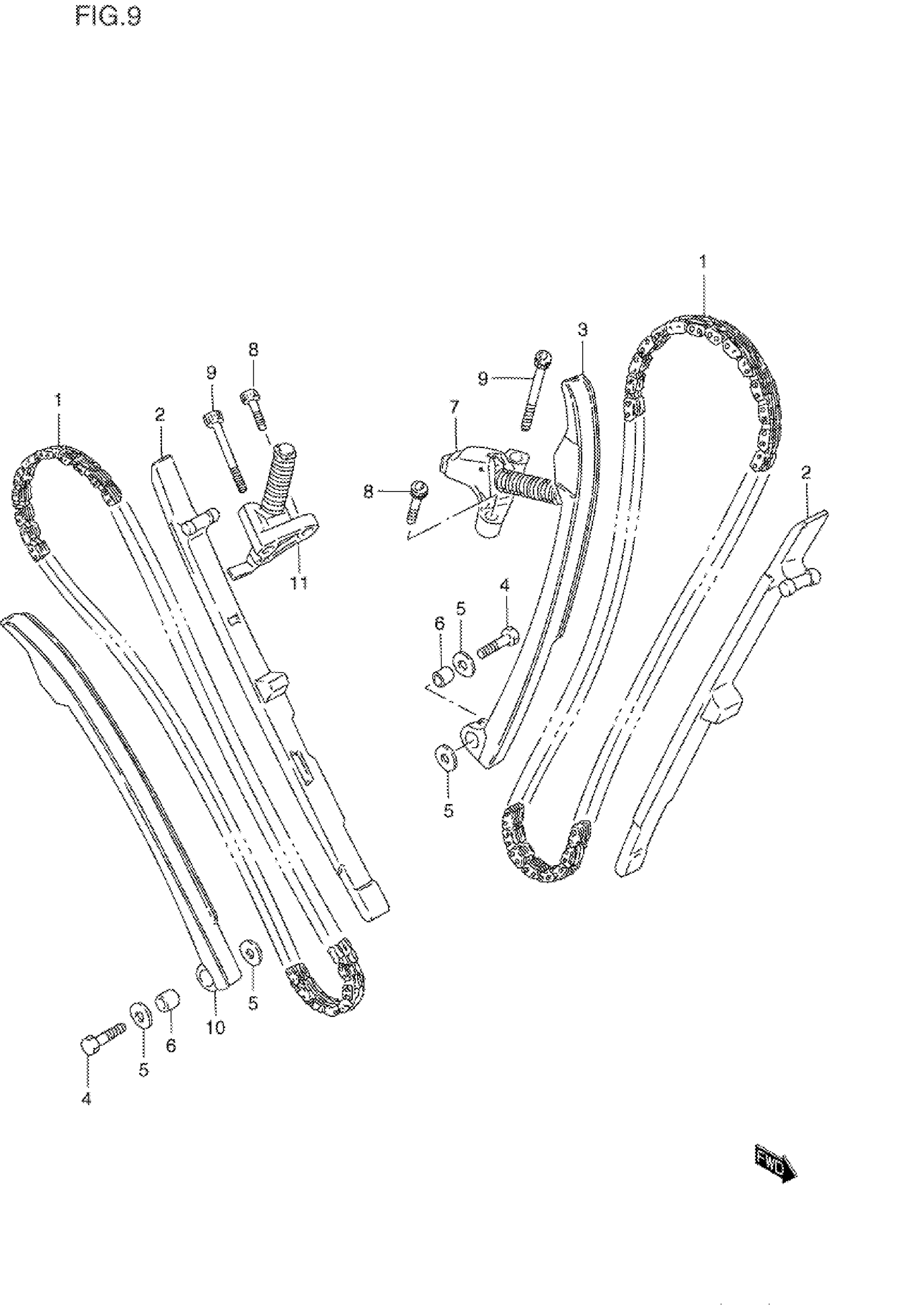

Suzuki VS800GLV (1997) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE | MODEL N/P/R/S This part replaces 12760-38A10.

12760-38A11

$213.98

1

CHAIN, CAM SHAFT DRIVE REAR (DID SCA-0412A SV X 128LE) | MODEL T/V This part replaces 12760-38A20.

12760-38A21

$208.25

2

GUIDE, CAM CHAIN | MODEL N/P/R/S/V

12771-38A02

$71.43

2

GUIDE, CAM CHAIN | MODEL T This part replaces 12771-38A10.

12771-38A02

$71.43

3

TENSIONER, CAM CHAIN FRONT

12811-38A01

$71.43

4

BOLT (6X26)

09100-06129

$2.58

5

WASHER

08211-06182

$2.08

6

SPACER

09180-06148

Unavailable

7

ADJUSTER ASSY, TENSIONER FRONT This part replaces 12831-38A00.

12831-38A01

$168.88

8

BOLT, FRONT BRG HOUSING | MODEL N/P This part replaces 07110-06205.

07130-0620B

$2.80

8

BOLT, FRONT BRG HOUSING | MODEL R/S/T/V This part replaces 07130-06203.

07130-0620B

$2.80

9

BOLT | MODEL N/P This part replaces 07110-06455.

07130-0645B

$4.45

9

BOLT | MODEL R/S/T/V This part replaces 07130-06453.

07130-0645B

$4.45

10

TENSIONER, CAM CHAIN REAR

12816-38A01

$68.80

11

ADJUSTER ASSY, TENSIONER REAR This part replaces 12832-38A00.

12832-38A01

$173.67
