1995 Suzuki VS800GL Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 1995 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

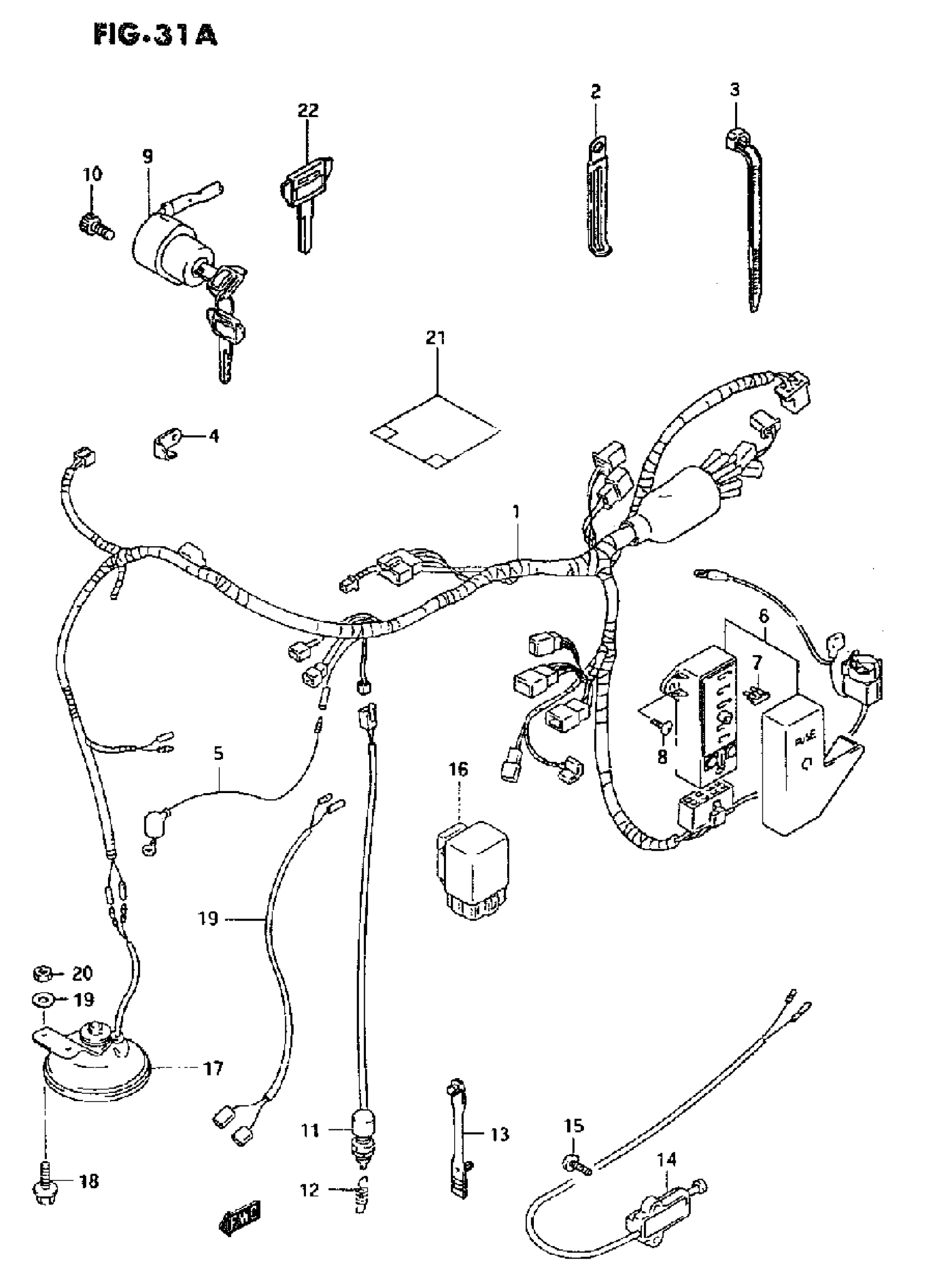

1995 Suzuki VS800GL Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING

36610-39AC0

1
Out of stock

2

CLAMP (L:60)

09404-06429

2
Out of stock

2

CLAMP This part replaces 09404-06431.

09404-06039

3
Out of stock

3

CLAMP (L:95)

09407-11401

1
Out of stock

3

CLAMP (L:125)

09407-14403

3
Out of stock

3

CLAMP This part replaces 09407-18403.

09407-18402

7
Out of stock

4

PLATE, COUPLER HOLDER

36687-38A00

1
Out of stock

5

WIRE, WATER TEMP GAUGE

36851-17E00

1
Out of stock

6

FUSE BOX ASSY

36740-39A00

1
Out of stock

7

FUSE (10A)

09481-10101

5
Out of stock

7

.FUSE (25A) This part replaces 09481-25101.

09481-25103

2
Out of stock

8

SCREW This part replaces 02142-06163.

02142-0616A

2
Out of stock

9

SWITCH ASSY, IGNITION This part replaces 37110-38A03.

37110-38A04

1
Out of stock

10

BOLT This part replaces 07130-05163.

07130-0516A

1
Out of stock

11

SWITCH ASSY, STOP LAMP

37740-31D00

1
Out of stock

12

SPRING

09443-06046

1
Out of stock

13

CLAMP, SIDE STAND

09407-05403

1
Out of stock

14

SWITCH ASSY,SD This part replaces 37840-39A22.

37840-39A23

1
Out of stock

15

SCREW This part replaces 02112-76203.

02112-7620B

2
Out of stock

16

RELAY ASSY, SIDE STAND

38740-24X50

1
Out of stock

17

HORN ASSY

38500-39A00

1
Out of stock

18

BOLT This part replaces 01550-06303.

01550-0630A

1
Out of stock

19

.WASHER This part replaces 08322-01063.

08322-0106B

1
Out of stock

20

NUT This part replaces 08310-00063.

08310-0006A

1
Out of stock

21

1

$21.28

In stock

22

KEY, BLANK TYPE C | OPT

37146-03A00

1
Out of stock

22

KEY, BLANK TYPE D | OPT

37146-03A10

1
Out of stock

22

KEY, BLANK TYPE E | OPT

37146-03A20

1
Out of stock

22

KEY, BLANK TYPE F | OPT

37146-03A30

1
Out of stock

22

LOCK SET | MODEL S, T This part replaces 95079-38A10-XXX.

37100-38836

1
Out of stock

22

LOCK SET | MODEL S, T CA ONLY This part replaces 95079-38A20-XXX.

37000-38840

1
Out of stock
