1995 Suzuki VS800GL Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 1995 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

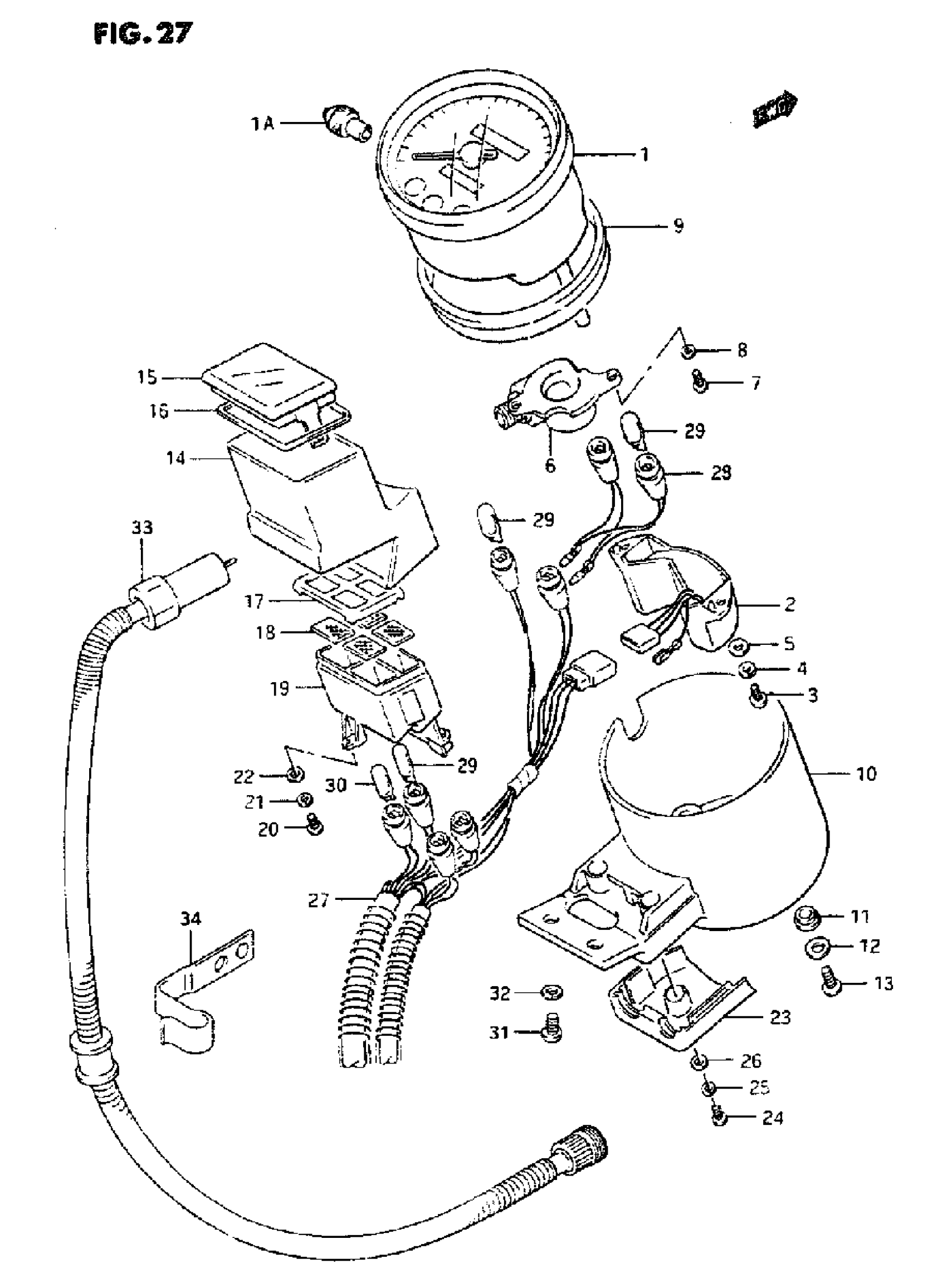

1995 Suzuki VS800GL Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER (MILE/KILO)

34110-39A60

1
Out of stock

1

KNOB, TRIP

34124-39A10

1
Out of stock

2

UNIT, WATER TEMP WARNING

34490-39A10

1
Out of stock

3

SCREW This part replaces 02112-03083.

02112-0308A

2
Out of stock

4

LOCK WASHER This part replaces 08321-21033.

08321-2103B

2
Out of stock

5

WASHER This part replaces 08322-01033.

08322-0103B

2
Out of stock

6

BOX, METER GEAR This part replaces 34131-38B00.

34131-38A00

1
Out of stock

7

SCREW

02112-04107

2

$1.67

In stock

8

LOCK WASHER This part replaces 08321-01043.

08321-0104A

2
Out of stock

9

CUSHION, METER

34288-39A00

1
Out of stock

10

COVER, METER

34193-39A20

1
Out of stock

11

CUSHION This part replaces 34189-05A30.

34189-05A31

2
Out of stock

12

WASHER

34181-38A00

2
Out of stock

13

2

$1.20

In stock

14

BOX, PILOT LAMP

36381-39A20

1
Out of stock

15

LENS, PILOT BOX

36393-38A00

1
Out of stock

16

CUSHION

36395-38A00

1
Out of stock

17

PLATE, PILOT LENS

36386-38A00

1
Out of stock

18

LENS SET, PILOT LAMP

36300-38810

1
Out of stock

19

CASE, PILOT LAMP

36382-38B30

1
Out of stock

20

SCREW This part replaces 02112-03083.

02112-0308A

2
Out of stock

21

LOCK WASHER This part replaces 08321-21033.

08321-2103B

2
Out of stock

22

WASHER This part replaces 08322-01033.

08322-0103B

2
Out of stock

23

COVER, PILOT BOX This part replaces 34152-39A20.

34152-39A21

1
Out of stock

24

SCREW

02112-04087

3

$1.20

In stock

25

LOCK WASHER This part replaces 08321-01043.

08321-0104A

3
Out of stock

26

WASHER

08322-01047

3
Out of stock

27

SOCKET, METER NO.1 | MODEL N This part replaces 34173-39A20.

34173-39A21

1
Out of stock

27

SOCKET, METER NO.1 | MODEL P/R/S

34173-39A21

1
Out of stock

28

SOCKET, WATER NO.2

34174-39A10

1
Out of stock

29

BULB (12V, 3W)

09471-12103

1
Out of stock

30

.BULB (12V1.7W)

09471-12108

1
Out of stock

31

SCREW | MODEL N/P/R

02112-06167

2
Out of stock

31

BOLT | MODEL S This part replaces 01550-06163.

01550-0616A

2
Out of stock

32

LOCK WASHER

08321-01067

2

$2.28

In stock

33

CABLE ASSY, SPEEDOMETER

34910-39A00

1
Out of stock

34

GUIDE, METER CABLE

34938-38A02

1
Out of stock
