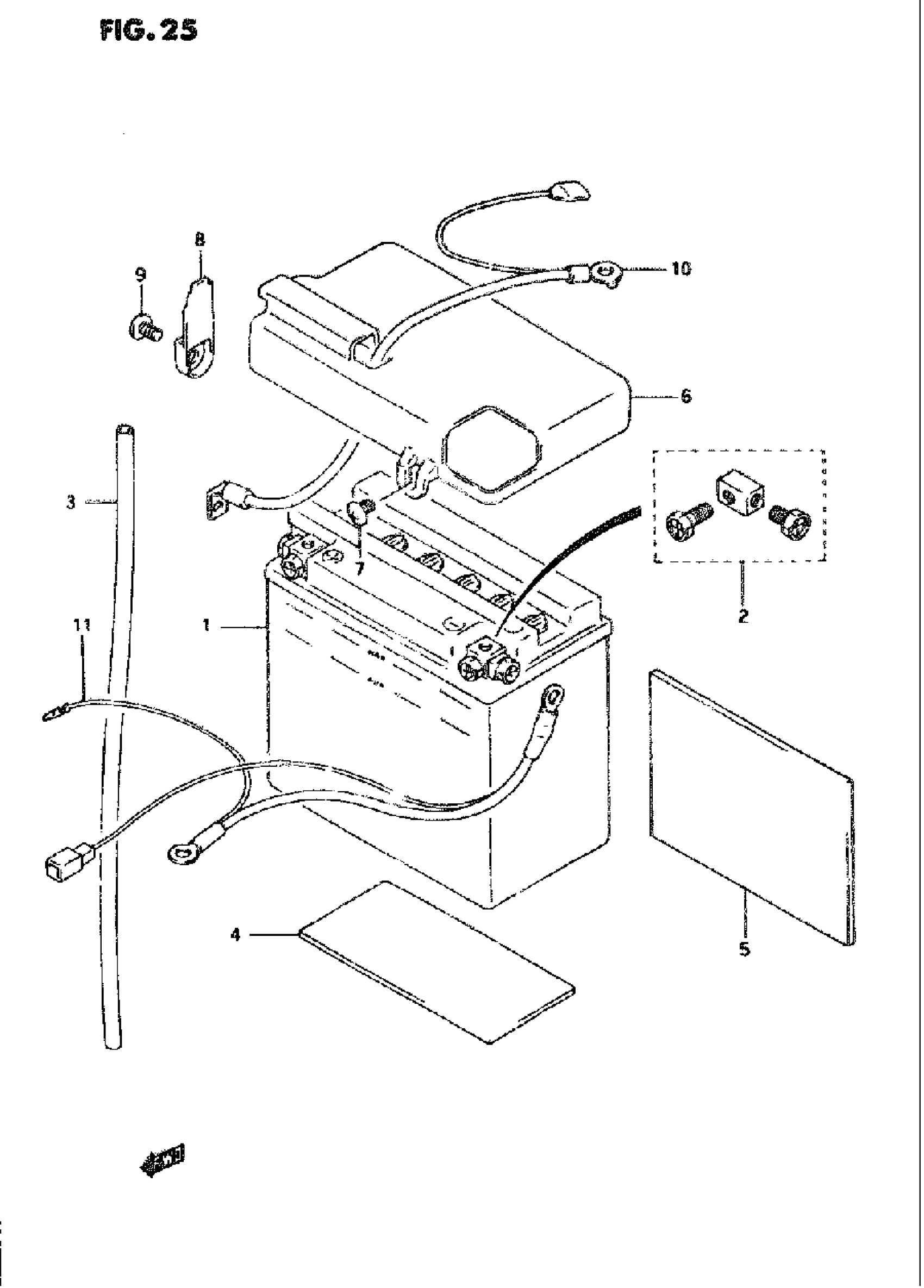

Suzuki VS800GL (1995) BATTERY Diagram

#

Description
Price

1

BATTERY (12V,16AH) This part replaces 33610-38A31.

33610-38A01

$193.72

2

BOLT SET, TERMINAL

33626-38A01

$17.84

3

HOSE,BATTERY EX | L:780->200 This part replaces 33680-16A10.

33680-16A11

$7.65

4

CUSHION | CUT AS REQUIRED PROFILE (60X130)

33651-37000

$4.09

5

PROTECTOR (20X90)

33652-07000

Unavailable

6

COVER, BATTERY UPPER

33658-38A30

$14.18

7

SCREW | MODEL N/P This part replaces 02142-05084.

02142-0508A

$1.38

7

SCREW | MODEL R/S/T This part replaces 02142-05083.

02142-0508A

$1.38

8

COVER, BATTERY TERMINAL

33658-38A40

$2.29

9

SCREW | MODEL N/P This part replaces 02142-05084.

02142-0508A

$1.38

9

SCREW | MODEL R/S/T This part replaces 02142-05083.

02142-0508A

$1.38

10

LEAD WIRE, BATTERY | MODEL N/P

33820-39A00

Unavailable

11

LEAD WIRE, BATTERY

33860-38A00

$19.16
