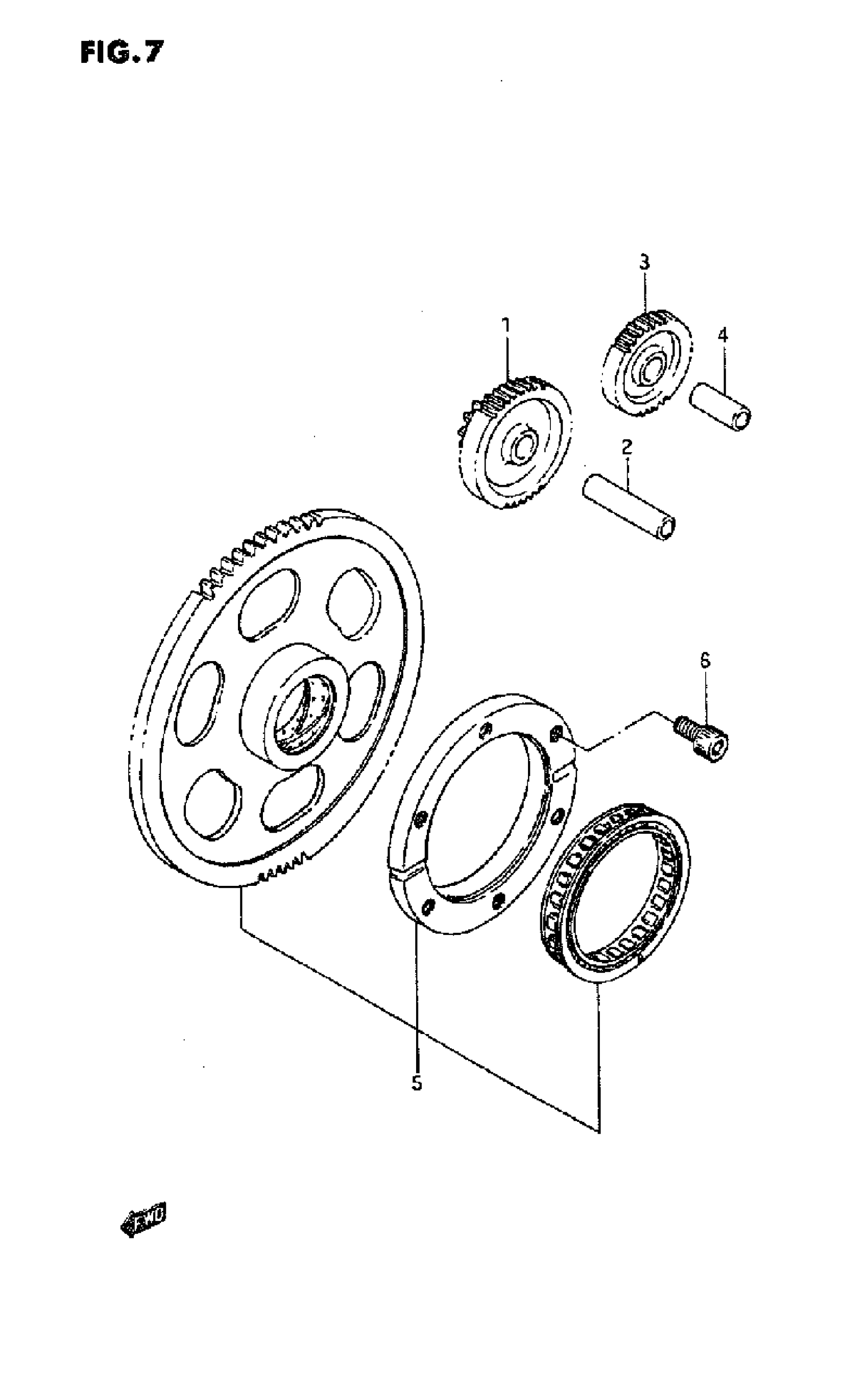

Suzuki VS800GL (1995) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER IDLE NO.1

12611-38A01

$104.77

2

PIN (10X43) | MODEL N/P/R/S This part replaces 09206-10003.

09202-10008

$12.75

2

PIN (10X43) | MODEL T

09202-10008

$12.75

3

GEAR, STARTER IDLE NO.2

12611-38A11

$71.43

4

PIN (10X27) | MODEL N/P/R/S This part replaces 09206-10004.

09202-10006

Unavailable

4

PIN (10X27) | MODEL T

09202-10006

Unavailable

5

CLUTCH SET, STARTER | MODEL N/P/R This part replaces 12600-38830.

12600-38832

$368.62

5

CLUTCH SET, STARTER | MODEL S/T This part replaces 12600-38831.

12600-38832

$368.62

6

BOLT | MODEL N/P/R This part replaces 09106-08043.

07130-0816A

$2.90

6

BOLT | MODEL S/T This part replaces 07130-08163.

07130-0816A

$2.90
