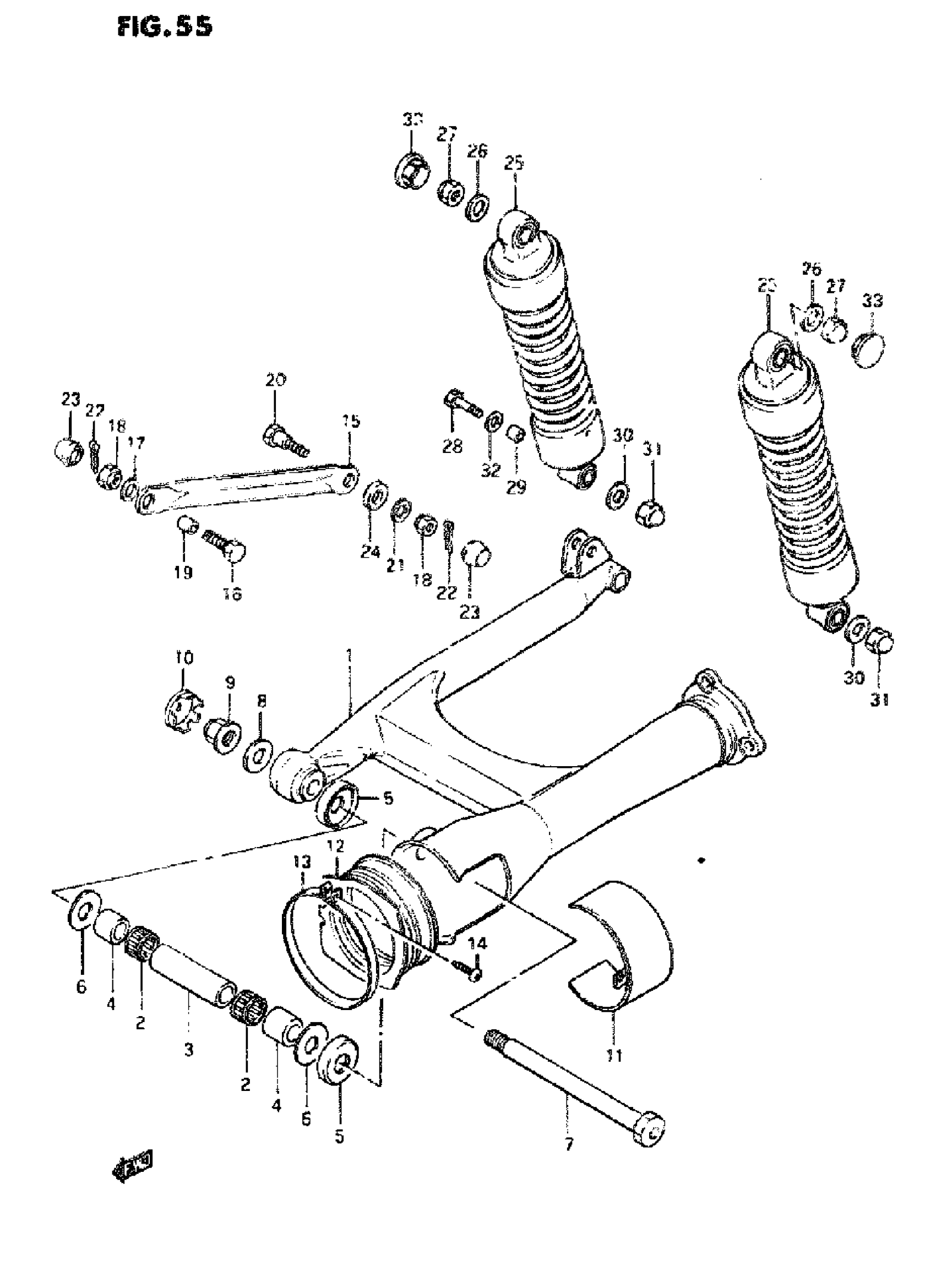

Find the part on the Rear Swinging Arm diagram for your 1995 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki VS800GL Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 61100-38E00-03F.

61100-38E01-03F

1
Out of stock

1

SWINGING ARM, REAR (RED) | MODEL N/P/R This part replaces 61100-38E00-19A.

61100-38E01-19A

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 61100-38E00-0CG.

61100-38E01-0CG

1
Out of stock

1

SWINGING ARM, REAR (BLACK) | MODEL R/S

61100-38E00-333

—
Out of stock

1

SWINGING ARM, REAR (BLACK) | MODEL S/T This part replaces 61100-38E00-20F.

61100-38E01-33J

1
Out of stock

1

SWINGING ARM, REAR (GREEN) | MODEL T This part replaces 61100-38E00-1ZV.

61100-38E01-1ZV

1
Out of stock

2

BEARING

09263-22022

2
Out of stock

3

SPACER, CENTER

61282-38E01

1
Out of stock

4

SPACER, PIVOT BEARING

61251-32410

2
Out of stock

5

SEAL This part replaces 61262-14A00.

61262-14A01

2
Out of stock

6

THRUST WASHER

08211-16341

2
Out of stock

7

SHAFT, PIVOT

61211-38E00

1
Out of stock

8

WASHER

09160-17047

1
Out of stock

9

NUT

083I9-21168

—
Out of stock

10

CAP, RH

61222-38A01

1
Out of stock

11

COVER, PIVOT LH (SILVER) | MODEL N This part replaces 61232-38A00-03F.

61232-38A00-13L

1
Out of stock

11

CAP, LH (RED) | MODEL N/P/R

61232-38A00-19A

1
Out of stock

11

COVER, PIVOT LH (SILVER) | MODEL P This part replaces 61232-38A00-0CG.

61232-38A00-13L

1
Out of stock

11

CAP, LH (BLACK) | MODEL R/S

61232-33A00-33J

—
Out of stock

11

CAP, LH (MAROON) | MODEL S/T

61232-38A00-20F

1
Out of stock

11

CAP, LH (GREEN) | MODEL T

61232-38A00-1ZV

1
Out of stock

12

BOOT, PROPELLER SHAFT

61372-38A00

1
Out of stock

13

CLAMP This part replaces 09402-92306.

09402-92306-XC0

1
Out of stock

14

SCREW | MODEL N/P This part replaces 03211-04255.

03211-0425B

1
Out of stock

14

SCREW | MODEL R/S/T This part replaces 03211-04253.

03211-0425B

1
Out of stock

15

TORQUE LINK, REAR (BLACK)

64310-38A13-019

1
Out of stock

16

BOLT, FRONT

09101-10037

1
Out of stock

17

WASHER, REAR | MODEL N/P/R This part replaces 09160-10057.

09160-10142

1
Out of stock

17

WASHER, REAR | MODEL S/T This part replaces 09160-10085.

09160-10142

1
Out of stock

18

NUT | MODEL N

09159-10059

2
Out of stock

18

NUT, FRONT | MODEL P/R/S/T

09159-10059

1
Out of stock

18

NUT | MODEL P This part replaces 08310-12108.

08310-00107

1
Out of stock

18

NUT | MODEL R/S/T This part replaces 08310-00103.

08310-0010A

1
Out of stock

19

SPACER (10.2X14X9.60) This part replaces 09180-10114.

09180-10137

1
Out of stock

20

BOLT, REAR

09111-10035

1
Out of stock

21

WASHER, REAR This part replaces 09160-10085.

09160-10142

1
Out of stock

22

PIN This part replaces 04111-16208.

04111-1620A

2
Out of stock

23

CAP | MODEL N

09251-13002

2
Out of stock

23

CAP, FRONT | MODEL P/R/S/T

09251-13002

1
Out of stock

24

CUSHION, REAR This part replaces 09320-12039.

09320-12501

1
Out of stock

25

ABSORBER ASSY, REAR SHOCK This part replaces 62100-38A52.

62100-38A53

2
Out of stock

26

WASHER, LOWER (10.5X24X2.3) | MODEL N This part replaces 09160-10001.

09160-10093

2
Out of stock

26

WASHER | MOD This part replaces 09160-10013.

09160-10123

2
Out of stock

27

NUT | MODEL N/P This part replaces 08316-16106.

08316-1010B

2
Out of stock

27

NUT | MODEL R/S/T This part replaces 08316-10103.

08316-1010B

2
Out of stock

28

BOLT, LOWER RH

09100-10247

1
Out of stock

29

SPACER, LOWER RH (10.2X14X20.7) This part replaces 09180-10104.

09180-10139

1
Out of stock

30

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10095.

09160-10093

2
Out of stock

31

NUT | MODEL N/P This part replaces 08313-11107.

08313-10107

2
Out of stock

31

NUT | MODEL R/S/T

08313-10107

2
Out of stock

32

WASHER, KNUCKLE END | MODEL N/P This part replaces 08322-11104.

08322-0110A

1
Out of stock

33

CAP

95672-24A00

2
Out of stock
