1995 Suzuki VS800GL Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 1995 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

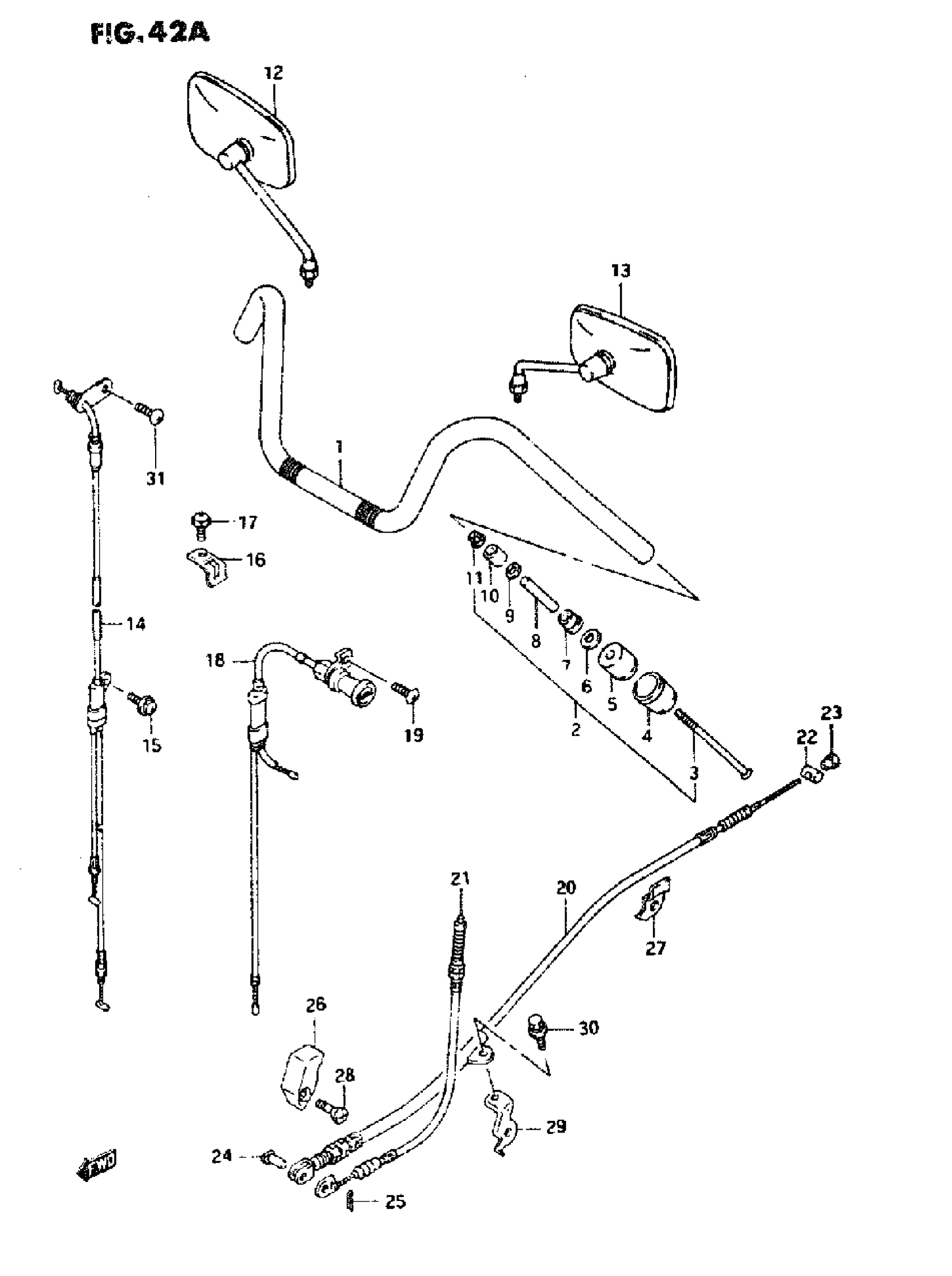

1995 Suzuki VS800GL Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR | MODEL S

56111-38A61

1
Out of stock

1

HANDLEBAR | MODEL T

56111-38A90

1
Out of stock

2

BALANCER SET | MODEL S This part replaces 56200-26820.

56200-38811

2
Out of stock

2

BALANCER SET | MODEL T This part replaces 56200-26821.

56200-38811

2
Out of stock

3

SCREW

09127-06019

2
Out of stock

4

CAP

56274-26D00

2
Out of stock

5

BALANCER

56271-26D10

2
Out of stock

6

SPACER This part replaces 56275-26D00.

56275-26D01

2
Out of stock

7

EXPANDER, OUTER | MODEL S This part replaces 56272-26D00.

56272-26D01

2
Out of stock

7

EXPANDER | MODEL T

56272-26D01

2
Out of stock

8

SPACER

56276-17D00

2
Out of stock

9

WASHER (6.5X18X1.0)

09160-06028

2
Out of stock

10

BALANCER SET This part replaces 56271-26D00.

56200-38811

2
Out of stock

11

NUT

09159-06024

2
Out of stock

12

MIRROR ASSY, REAR VIEW RH

56500-38A40

1
Out of stock

13

MIRROR ASSY, REAR VIEW LH

56600-38A40

1
Out of stock

14

CABLE ASSY, THROTTLE

58300-39E00

1
Out of stock

15

SCREW This part replaces 02112-75123.

02112-7512A

1
Out of stock

16

CLAMP, THROTTLE CABLE

58621-38A00

1
Out of stock

17

SCREW This part replaces 02112-75123.

02112-7512A

1
Out of stock

18

CABLE ASSY, STARTER This part replaces 58400-38A13.

58400-38A14

1
Out of stock

19

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

1
Out of stock

20

CABLE, REAR BRAKE

58510-38A01

1
Out of stock

21

CABLE, STOP LAMP SWITCH

58830-38A00

1
Out of stock

22

.PIN (13X18) This part replaces 09209-13005.

09209-13018

1
Out of stock

23

.NUT This part replaces 09150-06009.

09150-06010

1
Out of stock

24

PIN, FRONT

09200-05001

1
Out of stock

25

.COTTER PIN This part replaces 04111-20158.

04111-2015A

1
Out of stock

26

GUIDE, REAR BRAKE CABLE

58631-38A00

1
Out of stock

27

CLAMP, REAR BRAKE CABLE

58721-38A00

1
Out of stock

28

SCREW This part replaces 02122-06203.

02122-0620A

1
Out of stock

29

BRACKET, REAR BRAKE CABLE

43275-38A00

1
Out of stock

30

BOLT This part replaces 01580-06163.

01580-0616A

1
Out of stock

31

SCREW

02142-05087

1
Out of stock
