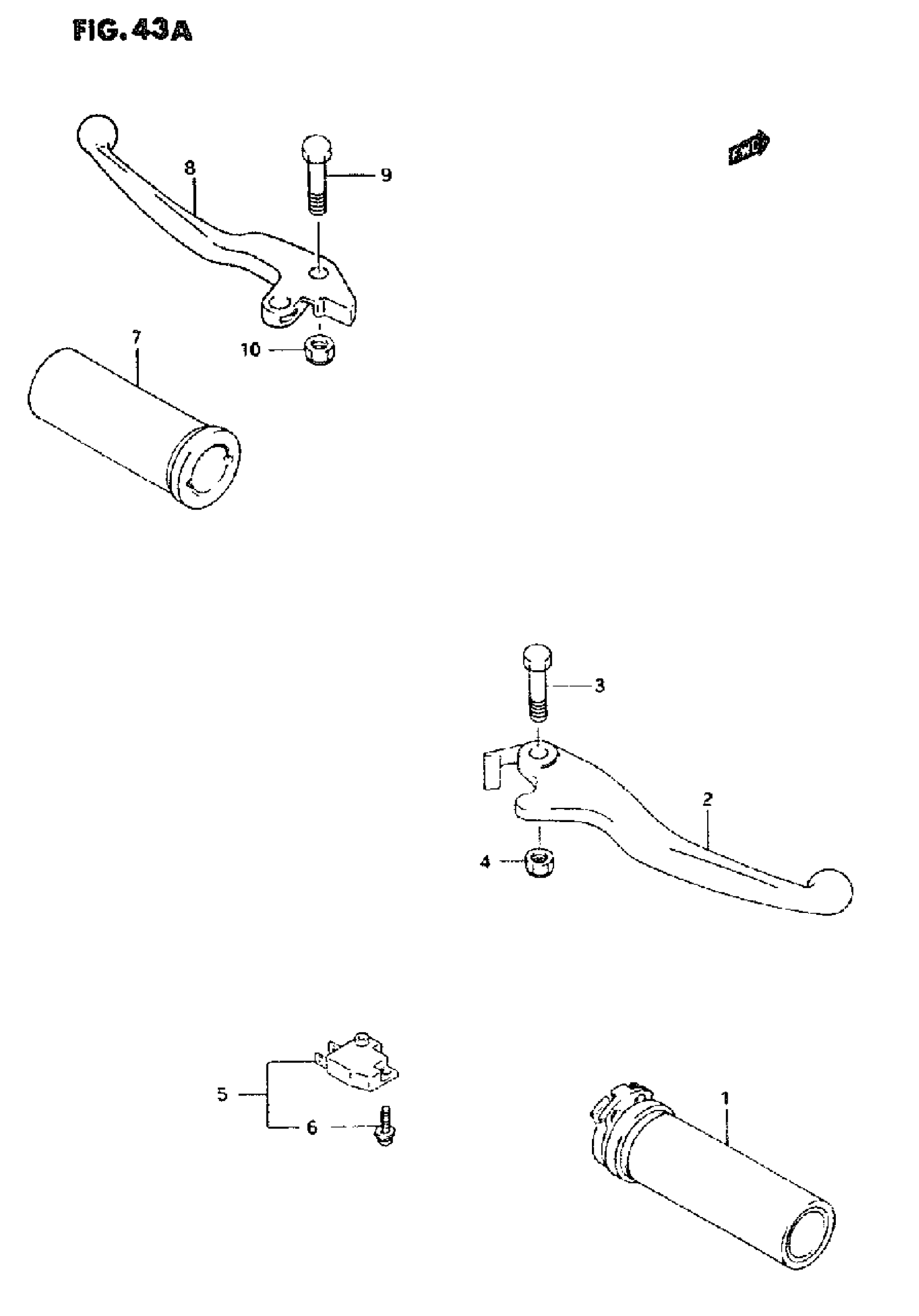

Suzuki VS800GL (1995) HANDLE LEVER (MODEL S/T) Diagram

#

Description

Price

1

GRIP COMP,THROT This part replaces 57110-26D00.

57110-26D01

$51.32

2

LEVER, BRAKE

57420-24B01

$23.83

3

BOLT

57431-38A10

$10.42

4

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE This part replaces 57460-17C00.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

GRIP,L This part replaces 57210-26D00.

57210-26D01

$27.67

8

LEVER, CLUTCH

57621-38A02

$18.76

9

BOLT

57431-38A10

$10.42

10

.NUT This part replaces 08319-21068.

08319-2106A

$1.89
