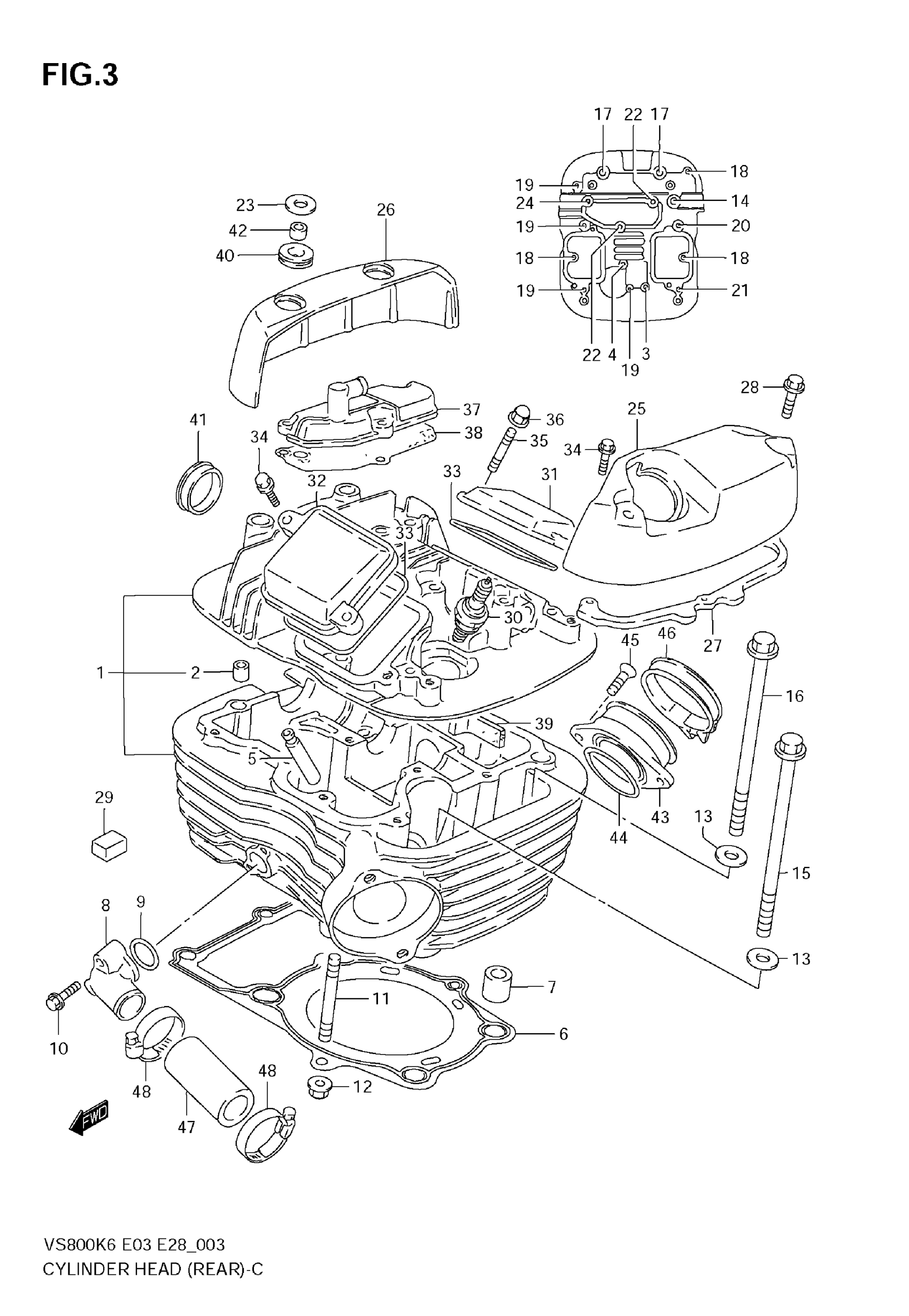

Suzuki VS800 (2009) CYLINDER HEAD (REAR) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | MODEL K6/K7

11103-39A50

Unavailable

1

HEAD ASSY, CYLINDER REAR | MODEL K8/K9; Includes Item(s) 2 - 4

11103-39A60

Unavailable

2

PIN

09206-11004

$4.84

3

BOLT (6X50)

09103-06101

$2.72

4

BOLT (6X55)

09103-06102

$1.68

5

GUIDE, VALVE (OS 0.3) | OPT This part replaces 11115-38A71.

11115-41F70

$45.97

6

GASKET, CYLINDER HEAD REAR

11142-45C00

$53.51

7

PIN

04211-13189

$2.19

8

UNION, CYLINDER HEAD WATER

11169-45C10

Unavailable

9

O RING (D:2.4,ID:17.8)

09280-18004

$4.66

10

BOLT

01547-0625B

$2.43

11

STUD BOLT (L:40)

01421-0840A

$3.38

12

NUT

08316-1008B

$2.65

13

WASHER

09160-10039

$2.24

14

BOLT (8X140)

09103-08040

$5.98

15

BOLT (10X155)

09103-10133

$10.32

16

BOLT (10X165)

09103-10134

$10.32

17

BOLT (8X245)

09103-08180

Unavailable

18

BOLT

01550-0625B

$2.43

19

BOLT

01550-0630B

$2.80

20

BOLT

07120-0630B

$3.19

21

BOLT

01550-0640B

$2.40

22

BOLT (6X55)

09103-06102

$1.68

23

WASHER

09160-08130

$2.01

24

BOLT

01550-0620B

$2.38

25

CAP, HEAD COVER LH

11173-38A03

Unavailable

26

CAP, HEAD COVER RH

11174-38A02

Unavailable

27

CUSHION, HEAD COVER CAP

11273-38A01

$12.50

28

BOLT

01244-06357

$4.18

29

PAD, RUBBER

11152-38A00

$3.80

30

SPARK PLUG (NGK,DPR8EA-9)

09482-00334

$2.80

30

SPARK PLUG (ND,X24EPR-U9)

09482-00335

$4.90

30

SPARK PLUG (NGK,DPR7EA-9) | OPT

09482-00354

$3.04

30

SPARK PLUG (NGK,DPR7EA-9) | OPT This part replaces 09482-00355.

09482-00354

$3.04

30

SPARK PLUG (NGK,DPR9EA-9) | OPT

09482-00330

$2.85

30

SPARK PLUG (ND,X27EPR-U9) | OPT

09482-00331

$5.77

31

CAP, INSPECTION IN

11175-38A11

$26.03

32

CAP, INSPECTION EX

11176-38A11

$26.03

33

GASKET, INSPECTION CAP

11177-38A00

$4.09

34

..BOLT

01547-0620B

$2.43

35

STUD BOLT

09108-06102

$4.43

36

NUT

08313-2006B

$3.10

37

COVER, BREATHER

11186-38A02

Unavailable

38

GASKET, BREATHER COVER

11187-38A02-H17

$9.00

39

PLATE, HEAD COVER

11179-38A00

Unavailable

40

CUSHION

09320-13015

$2.80

41

PLUG, CYLINDER HEAD

09241-30004

$5.97

42

BUSH

09301-08007

$7.38

43

PIPE, INTAKE REAR | Includes Item(s) 44

13102-45C00

$33.34

44

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

45

BOLT

01550-0616B

$2.53

46

CLAMP, INTAKE PIPE

09402-52501

$9.98

47

HOSE, CYLINDER HEAD JOINT

17854-38A00

$10.35

48

CLAMP

09402-28511

$6.21
