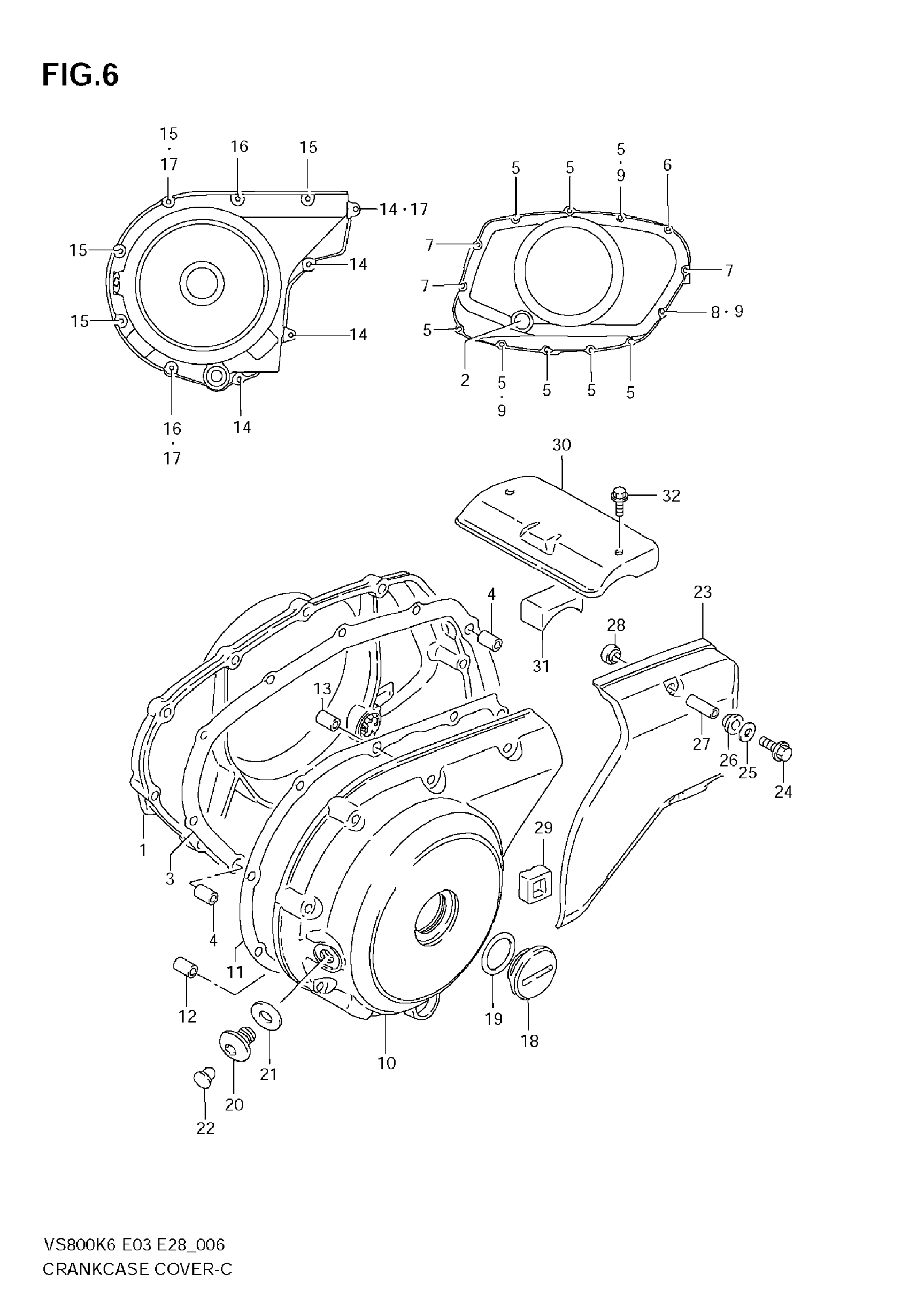

Suzuki VS800 (2009) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-38A00

$413.45

2

LENS, OIL LEVEL

11971-33210

$16.66

3

GASKET, CLUTCH COVER

11482-41F00

$15.68

4

PIN

04211-09189

$1.64

5

BOLT

09103-06213

$2.53

6

BOLT

09103-06214

$2.57

7

BOLT

09103-06224

$2.68

8

BOLT

09103-06261

$2.90

9

GASKET (5.8X13X1.2)

09168-06023

$2.01

10

COVER, GENERATOR

11351-45C20

Unavailable

11

GASKET, GENERATOR COVER

11483-41F00

$13.01

12

PIN

09206-11007

$2.63

13

PIN

04211-09189

$1.64

14

BOLT

09103-06213

$2.53

15

BOLT

09103-06215

$2.80

16

BOLT

09103-06238

$2.65

17

GASKET (5.8X13X1.2)

09168-06023

$2.01

18

PLUG, ACCESS

09259-36008

$7.37

19

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

20

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

21

GASKET (13.8X18.8X0.4)

09168-14002

$2.83

22

CAP

09250-08014

$2.80

23

COVER, SECONDARY DRIVE

11361-38A50

Unavailable

24

BOLT

09103-06224

$2.68

25

WASHER

09160-06125

$1.89

26

CUSHION, OUTER

09161-09006

$2.36

27

SPACER

09180-06278

$4.92

28

CUSHION, INNER

09161-09005

$2.33

29

DAMPER, SECONDARY COVER

11369-38A00

Unavailable

30

COVER, STARTER MOTOR

31210-38A01

Unavailable

31

DAMPER

31212-38A10

Unavailable

32

BOLT

01547-05087

$1.87
