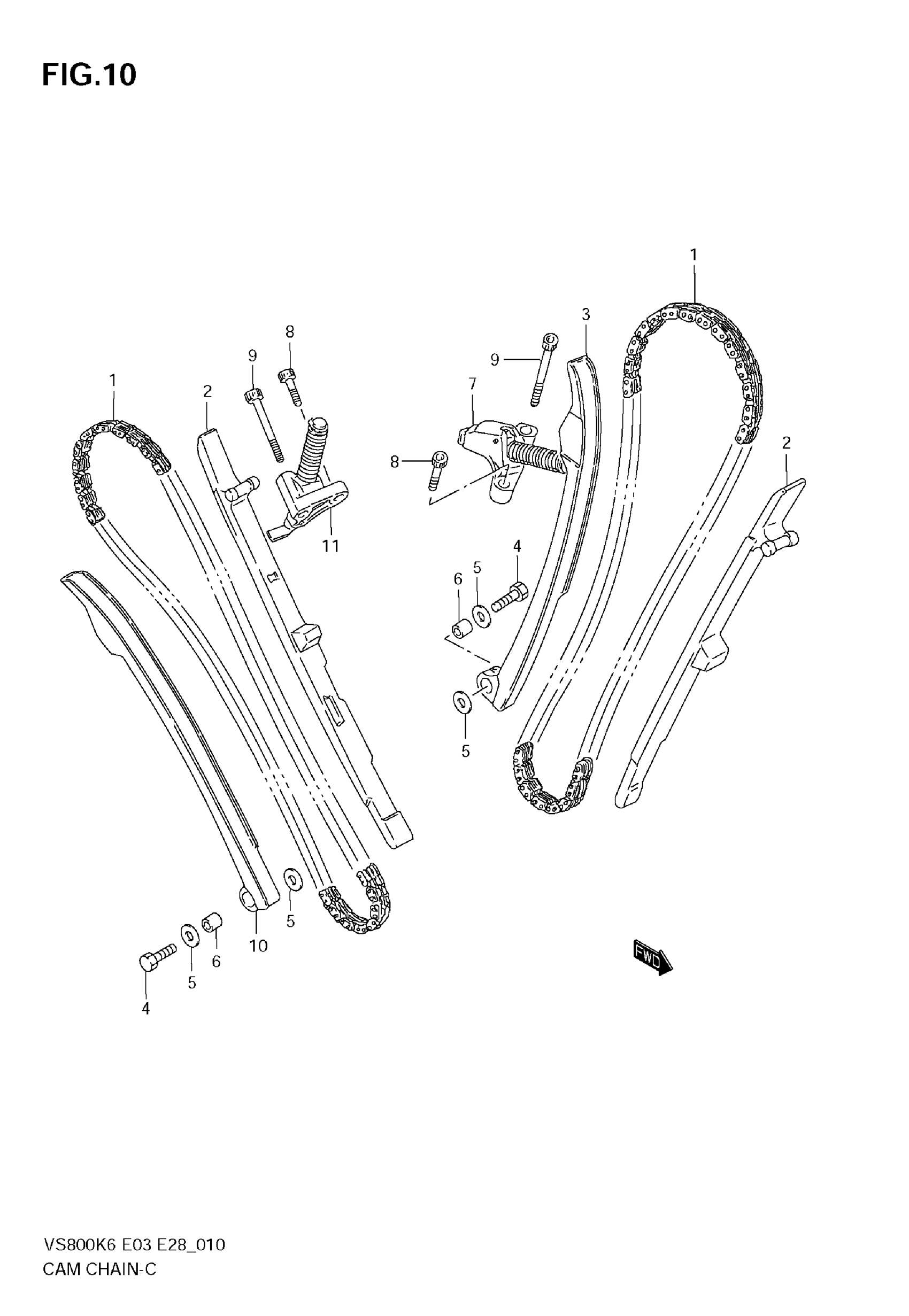

Suzuki VS800 (2009) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAM SHAFT DRIVE REAR (DID SCA-0412A SV X 128LE) This part replaces 12760-38A20.

12760-38A21

$208.25

2

GUIDE, CAM CHAIN

12771-38A02

$71.43

3

TENSIONER, CAM CHAIN FRONT

12811-38A01

$71.43

4

BOLT (6X26)

09100-06129

$2.58

5

WASHER

08211-06182

$2.08

6

SPACER

09180-06148

Unavailable

7

ADJUSTER ASSY, TENSIONER FRONT

12831-38A01

$168.88

8

BOLT

07130-0620B

$2.80

9

BOLT

07130-0645B

$4.45

10

TENSIONER, CAM CHAIN REAR

12816-38A01

$68.80

11

ADJUSTER ASSY, TENSIONER REAR

12832-38A01

$173.67
