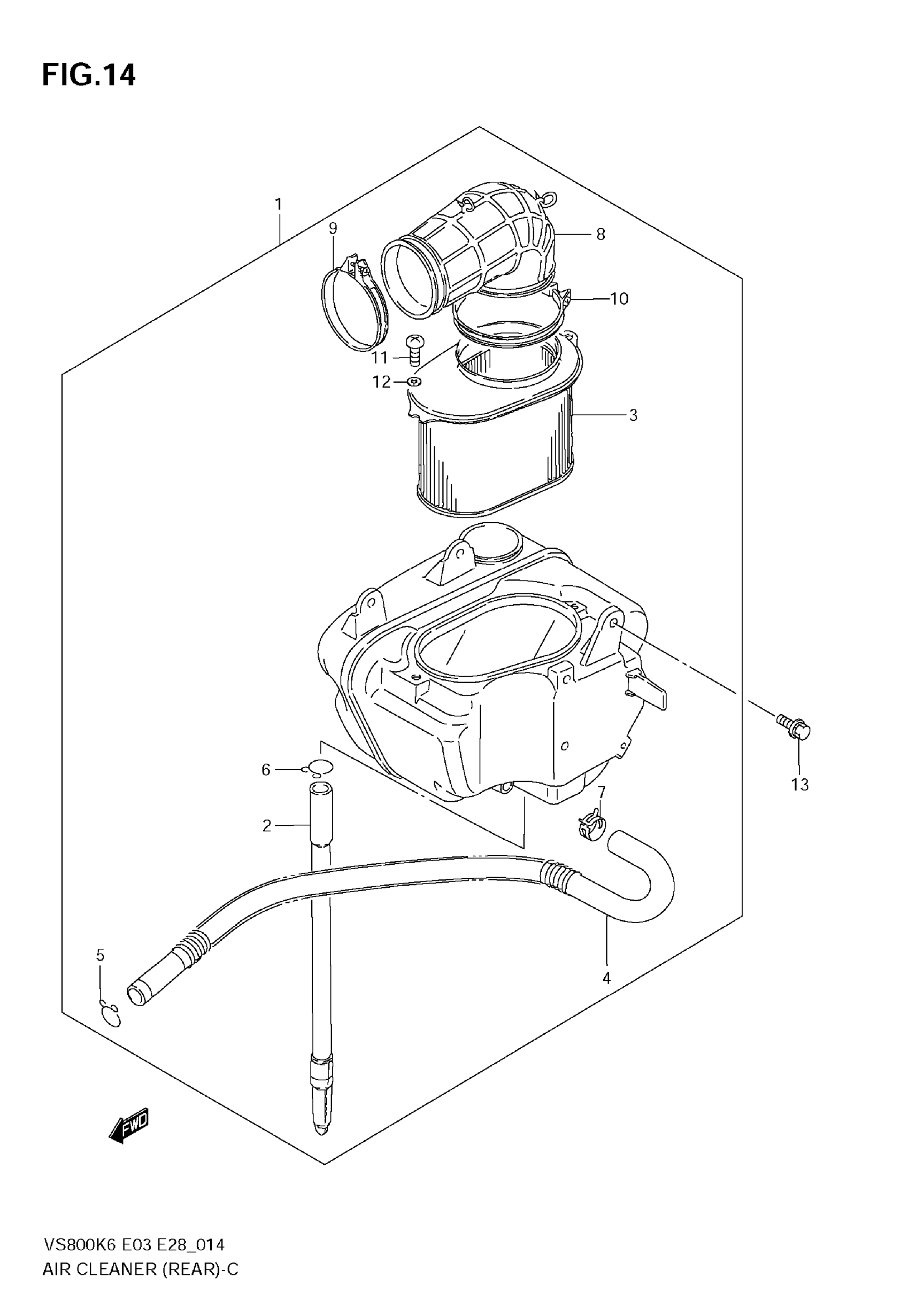

Suzuki VS800 (2009) AIR CLEANER (REAR) Diagram

#

Description

Price

1

CLEANER ASSY,AI | Includes Item(s) 2 - 12 This part replaces 13700-38A51.

13700-38A52

$276.50

2

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

$14.60

3

FILTER ASSY

13780-38A51

$38.96

4

TUBE SET, BREATHER

13850-38A50

$77.42

5

CLIP

09401-14301

$2.17

6

CLIP

09401-13409

$2.13

7

CLIP

09401-14404

$2.29

8

TUBE,OUTLET This part replaces 13881-38A50.

13881-38A51

$22.34

9

CLAMP

09402-58208

$4.84

10

CLAMP

09402-78207

$5.88

11

SCREW

02112-0508B

$1.85

12

LOCK WASHER This part replaces 08321-01053.

08321-0105A

$1.83

13

BOLT

01500-06207

$1.99
