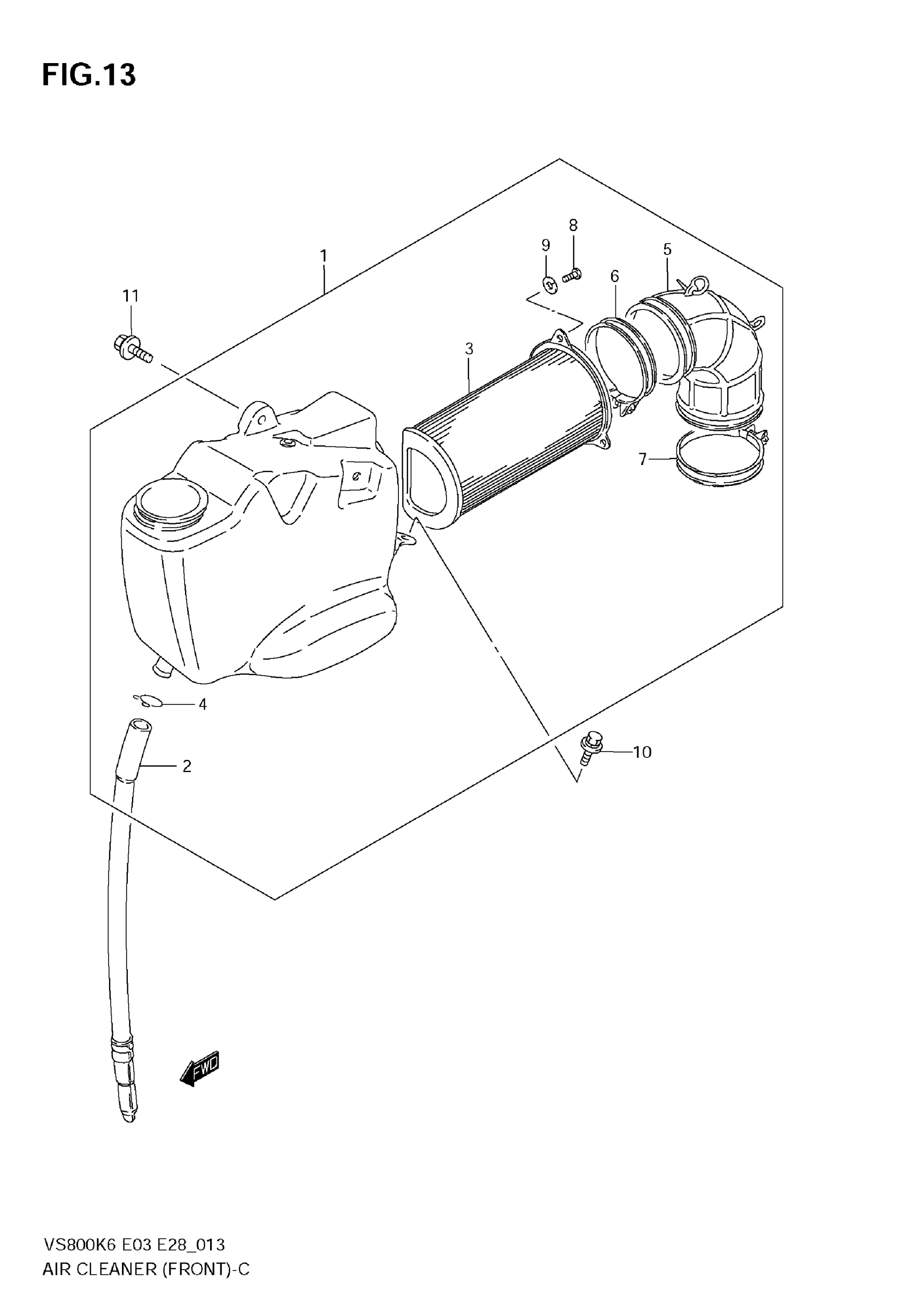

Suzuki VS800 (2009) AIR CLEANER (FRONT) Diagram

#

Description
Price

1

CLEANER ASSY, AIR FRONT | Includes Item(s) 2 - 9

13700-38A01

Unavailable

2

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

$15.27

3

FILTER ASSY

13780-38A01

$30.67

4

CLIP

09401-13409

$2.20

5

TUBE, OUTLET

13881-38A00

Unavailable

6

CLAMP This part replaces 09402-56208.

09402-56901

$4.99

7

CLAMP

09402-58208

$4.99

8

SCREW

02112-0408B

$2.05

9

LOCK WASHER This part replaces 08321-01043.

08321-0104A

$1.92

10

BOLT

01580-0616B

Unavailable

11

BOLT

01580-0616B

Unavailable
