1991 Suzuki VS750GLPM Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1991 Suzuki VS750GLPM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

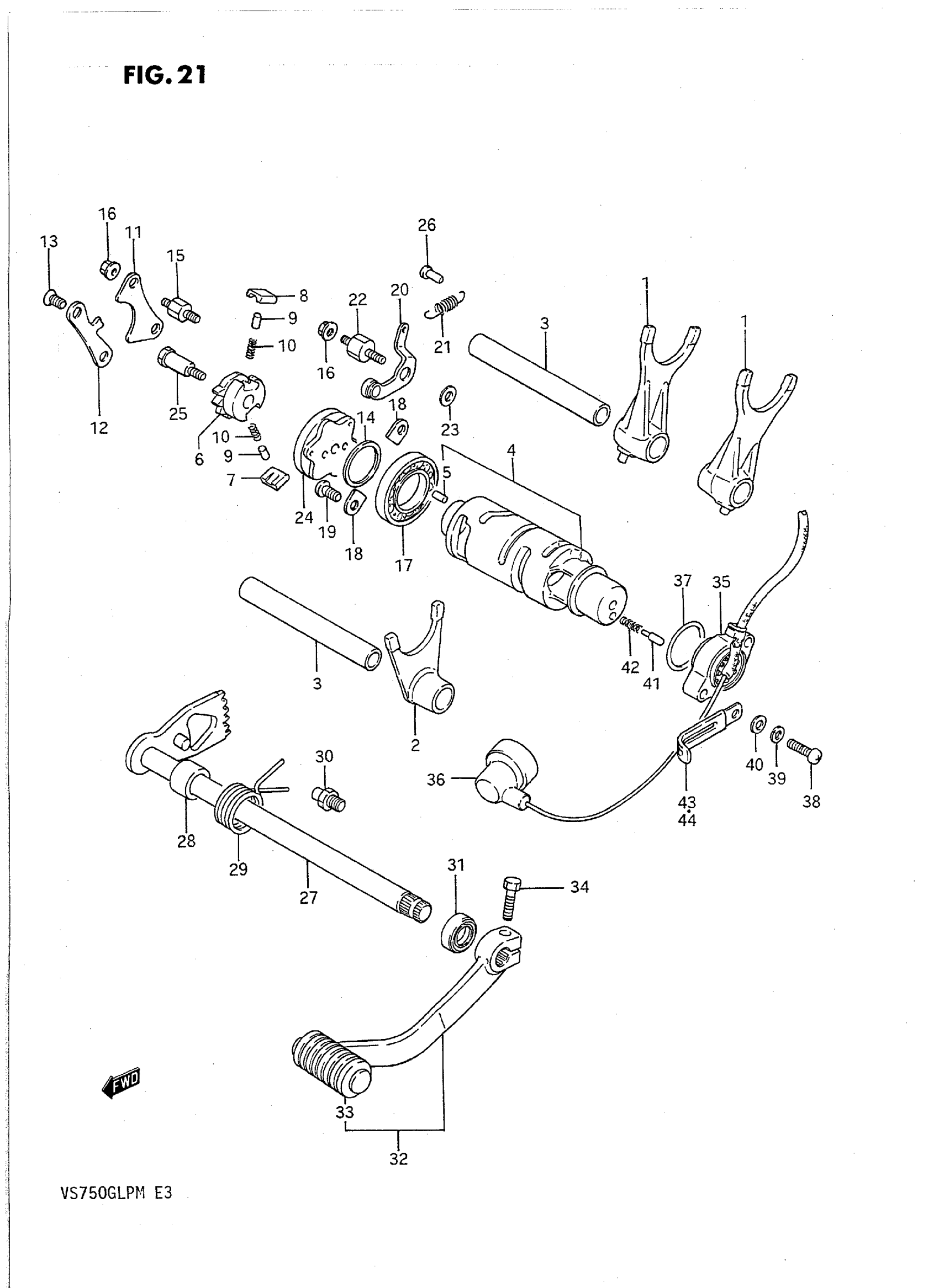

1991 Suzuki VS750GLPM Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

2

$44.32

In stock

2

FORK, GEAR SHIFTING NO.2

25221-38A01

1
Out of stock

3

2

$33.02

In stock

4

CAM, GEAR SHIFTING | Includes Item(s) 5

25310-38A03

1
Out of stock

5

PIN (4X13.8)

04221-04089

2
Out of stock

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

1
Out of stock

7

PAWL, GEAR SHIFT NO.1

25323-34201

1

$7.20

In stock

8

PAWL, GEAR SHIFT NO.2

25324-34201

1

$7.41

In stock

9

PIN

09261-05003

2
Out of stock

10

SPRING

09440-04003

2

$1.76

In stock

11

LIFTER, PAWL

25331-38A00

1
Out of stock

12

GUIDE, CAM

25341-38A00

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

WASHER (25X32X3)

09160-25059

1

$7.20

In stock

15

BOSS

25332-38A00

1
Out of stock

16

2

$2.18

In stock

17

BEARING (25X47X8) This part replaces 09262-25002.

09262-25006

1
Out of stock

18

RETAINER This part replaces 24741-20A10.

24741-21A00

2
Out of stock

19

SCREW This part replaces 02112-06128.

02112-06127

1
Out of stock

20

STOPPER, CAM

25350-38A00

1
Out of stock

21

SPRING

09443-09027

1

$4.28

In stock

22

SUPPORT

25355-38A00

1
Out of stock

23

WASHER

08211-06141

1
Out of stock

24

PLATE, STOPPER

25380-38A02

1
Out of stock

25

PIN

25312-38A00

1

$6.27

In stock

26

HOOK

09223-04001

1

$1.83

In stock

27

SHAFT, GEAR SHIFTING

25510-38A00

1

$121.05

In stock

28

SPACER (12X20X15.3)

09180-12068

1

$4.03

In stock

29

1

$3.06

In stock

30

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

32

1

$67.40

In stock

33

COVER

25652-20C00

1
Out of stock

34

1

$2.48

In stock

35

1

$78.27

In stock

36

CAP

36618-43410

1

$3.28

In stock

37

1

$2.43

In stock

38

2

$2.12

In stock

39

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

40

2

$2.33

In stock

41

CONTACT, SWITCH

09209-05011

1
Out of stock

42

SPRING

09440-04010

1
Out of stock

43

CLAMP (L:60) This part replaces 09404-05401.

09404-06429

1
Out of stock

44

1

$1.86

In stock
