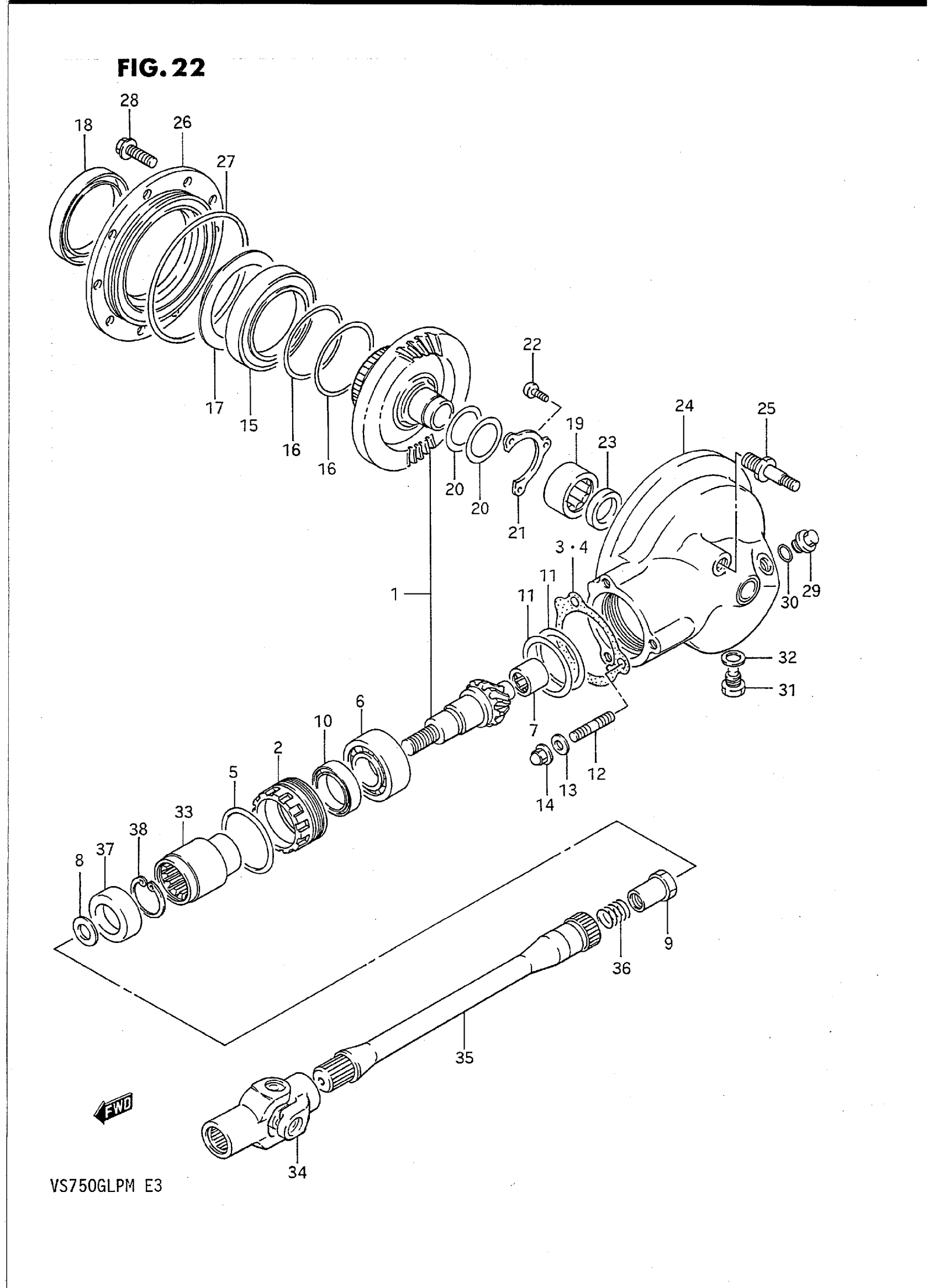

Suzuki VS750GLPM (1991) PROPELLER SHAFT - FINAL DRIVE GEAR Diagram

#

Description
Price

GEAR & CASE SET, FINAL BEVEL | Includes Item(s) 1 - 33 This part replaces 27300-38834.

27300-38836

Unavailable

1

GEAR, FINAL DRIVE BEVEL (NT:11) This part replaces 27300-38812.

27311-38A00

$331.60

2

STOPPER, BEARING

27312-38A00

$82.08

3

PLATE

27313-38A00

$8.32

4

PLATE

27313-38A10

$8.32

5

O RING (D:1.9,ID:61.6)

09280-62002

$2.97

6

BEARING (30X62X23.8)

09267-30005

$129.92

7

BEARING (17X32X16)

09263-17028

$53.02

8

WASHER (16X29X4)

09160-16029

$6.90

9

NUT

09159-16010

$9.03

10

OIL SEAL (38X54X6)

09283-38009

$13.30

11

SHIM (T:0.30)

27445-38A00-030

Unavailable

11

SHIM (T:0.35)

27445-38A00-035

Unavailable

11

SHIM (T:0.40)

27445-38A00-040

Unavailable

11

SHIM (T:0.50)

27445-38A00-050

Unavailable

11

SHIM (T:0.60)

27445-38A00-060

Unavailable

12

STUD BOLT

09108-10095

$6.22

13

LOCK WASHER

09164-10008

$1.73

14

NUT

09159-10026

$5.67

15

BEARING, RH

09262-70001

$153.17

16

SHIM (T:0.35)

27327-34200

Unavailable

16

SHIM (T:0.40)

27327-34210

Unavailable

16

SHIM (T:0.50)

27327-34220

Unavailable

16

SHIM (T:0.60)

27327-34230

Unavailable

17

PLATE

27328-34200

$8.32

18

OIL SEAL, RH

09289-70001

$46.71

19

BEARING, LH

09263-32007

$88.12

20

SHIM (T:1.05)

27326-34201

Unavailable

20

SHIM (T:1.10)

27326-34211

Unavailable

20

SHIM (T:1.20)

27326-34221

Unavailable

20

SHIM (T:1.25)

27326-34231

Unavailable

20

SHIM (T:1.35)

27326-34241

Unavailable

20

SHIM (T:1.40)

27326-34201-140

Unavailable

20

SHIM (T:1.45)

27326-34201-145

Unavailable

20

SHIM (T:1.50)

27326-34201-150

Unavailable

21

RETAINER, BEARING

27329-34200

Unavailable

22

SCREW This part replaces 02112-06128.

02112-06127

$1.83

23

OIL SEAL (30X42X7)

09283-30028

$8.79

24

CASE, FINAL GEAR

27450-38A12

Unavailable

25

STUD BOLT

27481-38A01

$14.07

26

CASE, FINAL GEAR BEARING

27460-07A01

Unavailable

27

O RING (D:3.5,ID:131.6)

09280-00015

$11.82

28

BOLT This part replaces 01517-08258.

01550-08257

$2.80

29

PLUG, OIL FILLER

09247-18001

$9.60

30

O RING (D:2.4,ID:17.8)

09280-18004

$4.66

31

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

$5.58

32

GASKET

09168-14004

$1.69

33

COUPLING, PROPELLER SHAFT

27172-38A00

$48.55

34

YOKE, UNIVERSAL JOINT This part replaces 27100-38A50.

27100-38A60

$387.42

35

SHAFT, PROPELLER

27151-38A01

Unavailable

36

SPRING

09440-18019

$2.80

37

OIL SEAL (28.4X48X15)

09283-30051

$9.46

38

CIRCLIP

09381-40003

$4.19
