1987 Suzuki VS700GLEF Footrest Diagram

← All diagrams

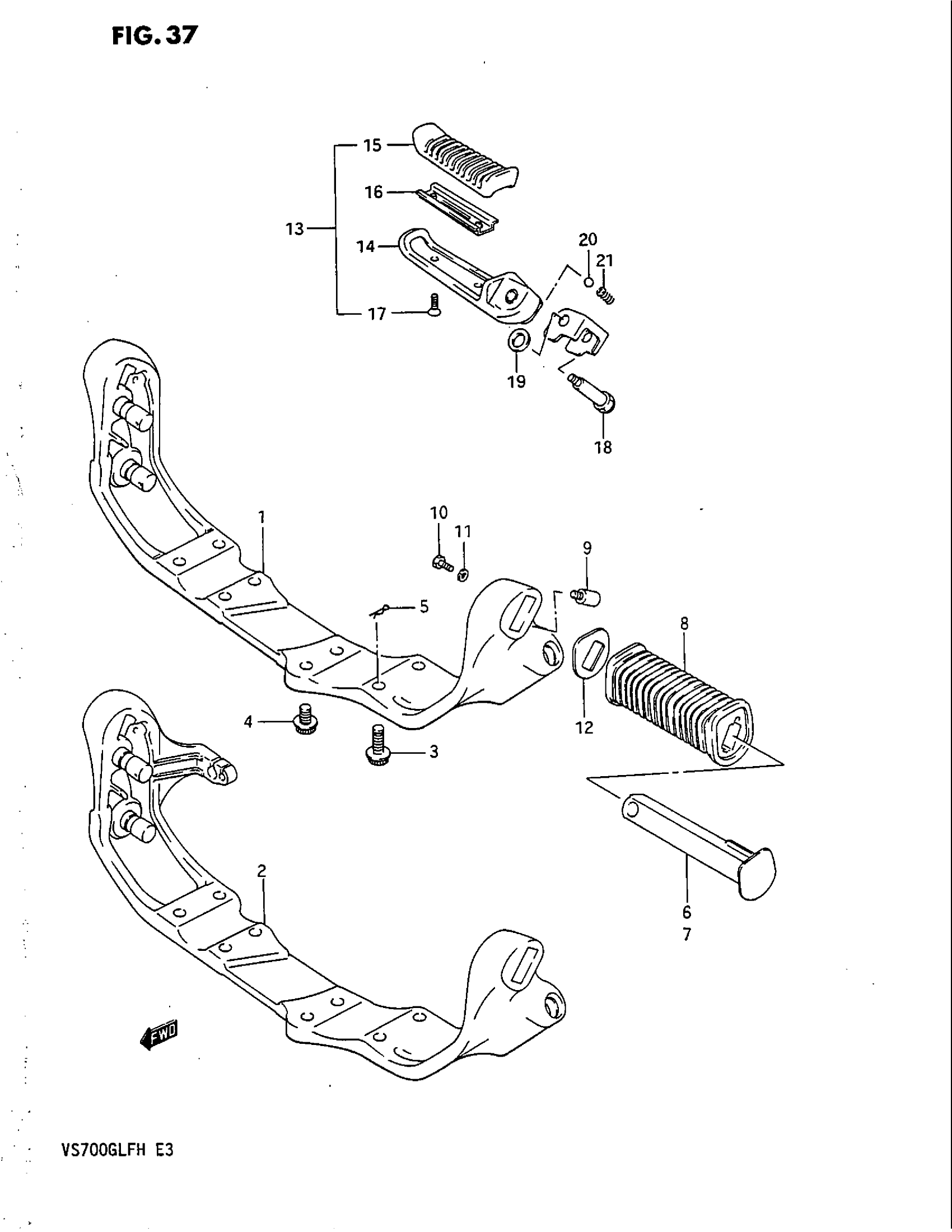

Find the part on the Footrest diagram for your 1987 Suzuki VS700GLEF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki VS700GLEF Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FOOTREST | VS700GLFG/GLPG ~F.NO.115898

43510-38A00

1
Out of stock

2

BRACKET, FRONT FOOTREST | VS700GLEFG/GLEPGVS700GLFG/GLPG F.NO.115899~

43510-38A20

1
Out of stock

3

BOLT, OUTER

09106-08064

4
Out of stock

4

BOLT This part replaces 07120-08208.

07120-0820A

4
Out of stock

5

PIN

09385-08002

4
Out of stock

6

BAR, FRONT FOOTREST RH

43530-38A10

1
Out of stock

7

BAR, FRONT FOOTREST LH

43540-38A10

1
Out of stock

8

RUBBER

43551-38A10

2
Out of stock

9

BOLT (6X8) This part replaces 43641-38A00.

09106-06100

2
Out of stock

10

BOLT, RUBBER STOP This part replaces 01107-05127.

01500-05127

2
Out of stock

11

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

12

WASHER, FRONT FOOTREST RH

43571-38A10

2
Out of stock

13

FOOTREST ASSY, PILLION RH This part replaces 43600-38A00.

43600-38A01

1
Out of stock

13

FOOTREST ASSY,P | Includes Item(s) 14 - 17 This part replaces 43700-38A00.

43700-38A02

1
Out of stock

14

FOOTREST ASSY, PILLION RH This part replaces 43610-38A00.

43600-38A01

1
Out of stock

14

FOOTREST ASSY,P This part replaces 43710-38A00.

43700-38A02

1
Out of stock

15

2

$9.67

In stock

16

PLATE, RUBBER STOPPER

43632-38A00

2
Out of stock

17

SCREW This part replaces 02132-05167.

02122-05167

4
Out of stock

18

BOLT

09111-06050

2
Out of stock

19

SHIM

08221-08164

2
Out of stock

20

BALL

06111-07004

4
Out of stock

21

SPRING

09440-05031

4
Out of stock
