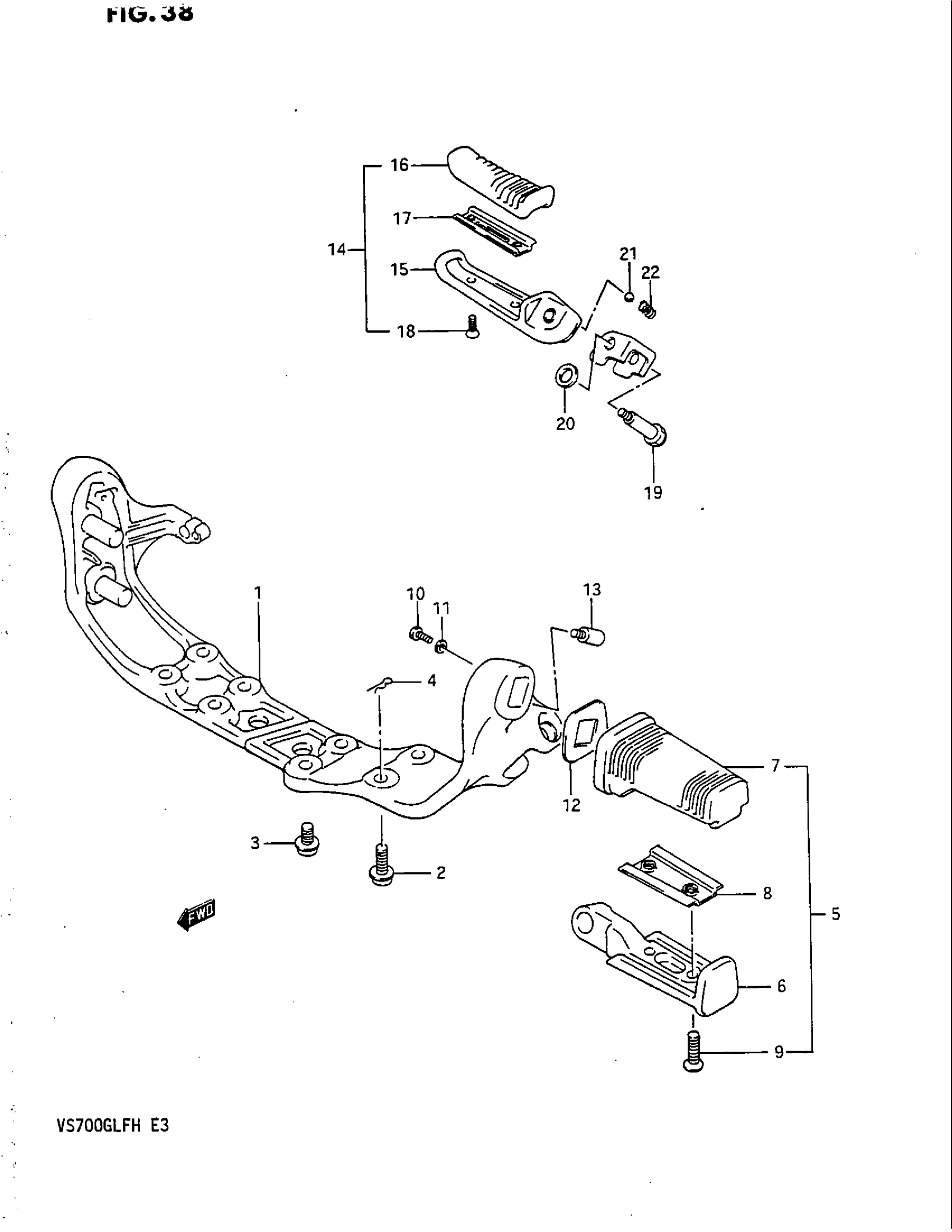

Find the part on the Footrest diagram for your 1987 Suzuki VS700GLEF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki VS700GLEF Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FOOTREST This part replaces 43510-38A40.

43510-38E01

1
Out of stock

2

BOLT, OUTER

09106-08064

4

$3.86

In stock

3

4

$3.11

In stock

4

PIN

09385-08002

4
Out of stock

7

2

$14.85

In stock

9

4

$2.47

In stock

10

2

$2.65

In stock

11

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

13

2

$3.35

In stock

14

FOOTREST ASSY, PILLION RH This part replaces 43600-38A00.

43600-38A01

1
Out of stock

14

FOOTREST ASSY,P | Includes Item(s) 15 - 18 This part replaces 43700-38A00.

43700-38A02

1
Out of stock

15

FOOTREST ASSY, PILLION RH This part replaces 43610-38A00.

43600-38A01

1
Out of stock

15

FOOTREST ASSY,P This part replaces 43710-38A00.

43700-38A02

1
Out of stock

16

2

$9.67

In stock

17

PLATE, RUBBER STOPPER

43632-38A00

2

$8.32

In stock

18

4

$0.81

In stock

19

BOLT

09111-06050

2

$5.00

In stock

20

SHIM

08221-08164

2

$2.35

In stock

21

BALL

06111-07004

4
Out of stock

22

SPRING

09440-05031

4

$1.55

In stock
