1987 Suzuki VS700GLEF Wiring Harness Diagram

← All diagrams

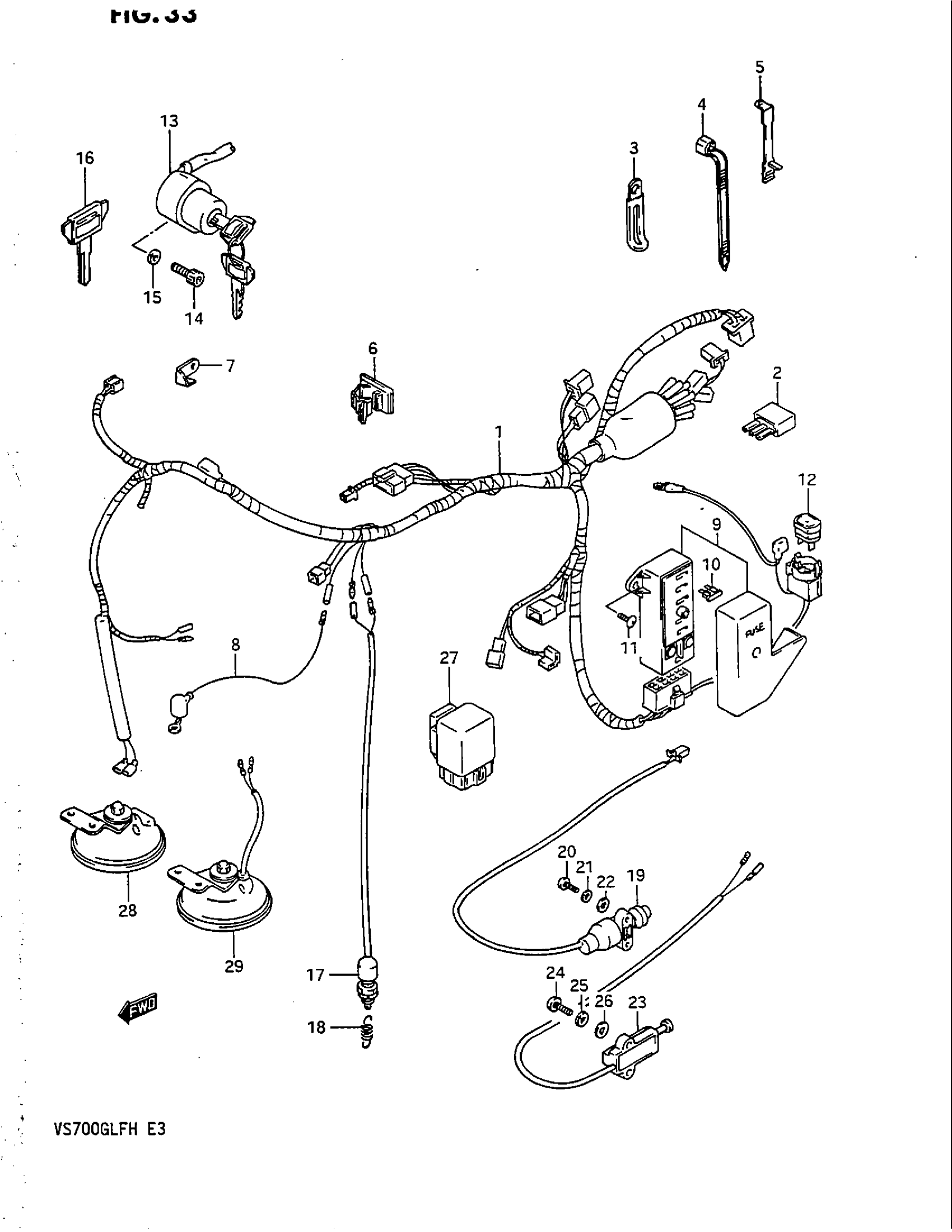

Find the part on the Wiring Harness diagram for your 1987 Suzuki VS700GLEF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki VS700GLEF Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | MODEL G,~F.NO.111193

36610-38A32

1
Out of stock

1

HARNESS, WIRING | MODEL G,F.NO.111194~ This part replaces 36610-38A30.

36610-38A32

1
Out of stock

1

HARNESS, WIRING | MODEL H; Includes Item(s) 2

36610-39A30

1
Out of stock

2

.DIODE | MODEL H This part replaces 36611-38A00.

36611-38A10

1
Out of stock

3

CLAMP (L:60) This part replaces 09404-05401.

09404-06429

1
Out of stock

3

CLAMP | MODEL H This part replaces 09404-06401.

09404-06039

1
Out of stock

3

CLAMP This part replaces 09404-06402.

09404-06039

1
Out of stock

3

CLAMP This part replaces 09404-06403.

09404-06039

2
Out of stock

3

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

1
Out of stock

4

CLAMP (L:95)

09407-11401

2
Out of stock

4

CLAMP (L:125)

09407-14403

3
Out of stock

4

CLAMP (L:165)

09407-18402

6
Out of stock

5

CLAMP This part replaces 09407-07401.

09407-05403

1
Out of stock

6

CLIP This part replaces 09408-00074.

09408-00098

2
Out of stock

7

PLATE, COUPLER HOLDER

36687-38A00

1
Out of stock

8

WIRE, WATER TEMP GAUGE

36851-38401

1
Out of stock

9

FUSE BOX ASSY | Includes Item(s) 10

36740-38A00

1
Out of stock

10

FUSE (10A)

09481-10101

1
Out of stock

11

SCREW This part replaces 02142-06206.

02142-0620A

2
Out of stock

12

BREAKER ASSY, CIRCUIT

36750-05A00

1
Out of stock

13

SWITCH ASSY, IGNITION | Includes Item(s) 14 - 15 This part replaces 37110-38A01.

37110-38A04

1
Out of stock

14

BOLT This part replaces 07110-05128.

07130-05127

2
Out of stock

14

BOLT This part replaces 07110-05168.

07130-05167

2
Out of stock

15

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

16

KEY, BLANK TYPE C (A51) | OPT

37146-03A00

1
Out of stock

16

KEY, BLANK TYPE D (A52) | OPT

37146-03A10

1
Out of stock

16

KEY, BLANK TYPE E (A53) | OPT

37146-03A20

1
Out of stock

16

KEY, BLANK TYPE F (A54) | OPT

37146-03A30

1
Out of stock

17

SWITCH ASSY, STOP LAMP

37740-04A10

1
Out of stock

18

SPRING

09443-06046

1
Out of stock

19

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 37840-38A01.

37840-38A10

1
Out of stock

20

SCREW | MODEL G This part replaces 02112-05165.

02112-05164

2
Out of stock

21

LOCK WASHER | MODEL G This part replaces 08321-21055.

08321-0105A

2
Out of stock

23

SWITCH ASSY,SD | MODEL H This part replaces 37840-39A10.

37840-39A23

1
Out of stock

24

2

$1.55

In stock

26

.WASHER | MODEL H This part replaces 08322-21064.

08322-0106B

2
Out of stock

27

RELAY ASSY, SIDE STAND | MODEL H This part replaces 38740-39A00.

38740-24X50

1
Out of stock

28

HORN ASSY This part replaces 38500-38A00.

38500-38A30

1
Out of stock

29

HORN ASSY This part replaces 38500-38A20.

38500-38A30

1
Out of stock
