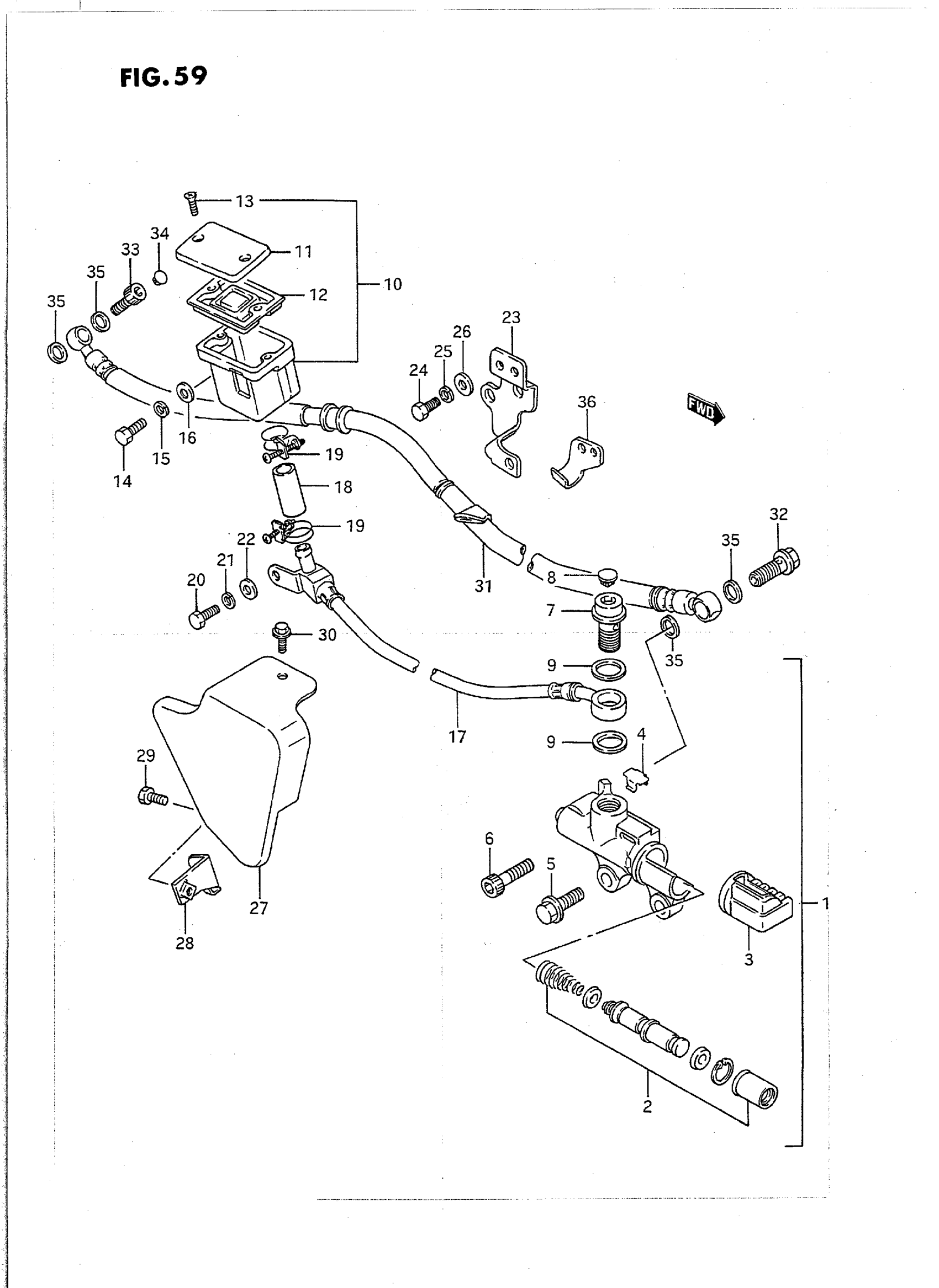

Suzuki VS1400GLPS (1995) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | MODEL H/J/L/M/N->69600-38B01 This part replaces 69600-38B00.

69600-38B01

$297.20

1

CYLINDER ASSY, REAR MASTER | MODEL P/R/S; Includes Item(s) 2 - 4

69600-38B01

$297.20

2

PISTON & CUP SET

69600-38810

$66.13

3

BOOT

69691-38B00

$13.30

4

PLATE, STOP

69696-38B00

Unavailable

5

BOLT, REAR LH | MODEL H This part replaces 01517-08207.

01550-08207

$2.73

6

BOLT | MODEL J/L/M/N/P/R/S

09106-08081

$3.17

7

BOLT, BRAKE FLUID This part replaces 69661-38B00.

09360-14013

Unavailable

8

CAP

09250-08014

$2.80

9

WASHER

69662-38B00

$4.70

10

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 69740-38B00.

69740-38B31

Unavailable

10

TANK ASSY, REAR RESERVOIR | MODEL L/M/N->69740-38B21 This part replaces 69740-38B20.

69740-38B21

$116.63

10

TANK ASSY, RESERVOIR | MODEL P/R/S; Includes Item(s) 11 - 13

69740-38B21

$116.63

11

CAP | MODEL H/J This part replaces 59669-04710.

69669-24A01

$14.23

11

CAP | MODEL L/M/N

69669-24A01

$14.23

11

CAP | MODEL P/R/S

59669-05D00

$15.78

12

DIAPHRAGM

59667-04700

$8.95

13

SCREW

69689-04A00

$2.15

14

BOLT | MODEL H/J/L This part replaces 01107-06207.

01500-06207

$1.99

14

NO DESCRIPTION AVAILABLE | MODEL M/N/P This part replaces 01177-06208.

01580-06207

Unavailable

14

BOLT, REAR | MODEL R This part replaces 01580-06203.

01580-0620B

$3.58

14

BOLT | MODEL S This part replaces 01550-06163.

01550-0616A

$1.97

15

LOCK WASHER | MODEL H/J/L This part replaces 08321-21067.

08321-01067

$1.83

16

WASHER | MODEL H/J/L This part replaces 08322-21067.

08322-01067

$1.86

17

HOSE, TANK

69730-38B00

$341.80

18

HOSE, TANK

69731-38B00

$8.32

19

CLAMP This part replaces 09400-16302.

09400-16304

$2.84

20

BOLT | MODEL H/J/L This part replaces 01107-06127.

01500-06127

$1.97

20

BOLT | MODEL M/N/P This part replaces 01177-06128.

01580-06127

$3.58

20

BOLT | MODEL R This part replaces 01580-06123.

01580-0612A

$2.34

20

BOLT | MODEL S This part replaces 01550-06163.

01550-0616A

$1.97

21

LOCK WASHER | MODEL H/J/L This part replaces 08321-21067.

08321-01067

$1.83

22

WASHER | MODEL H/J/L This part replaces 08322-21067.

08322-01067

$1.86

23

BRACKET, TANK

69750-38B00

Unavailable

24

PLUG, DRAIN | MODEL H/J/L/M/N/P This part replaces 01107-08167.

01500-0816B

$2.50

24

BOLT | MODEL R/S This part replaces 01580-08163.

01580-0816A

$3.58

25

.LOCK WASHER | MODEL H/J/L/M/N/P This part replaces 08321-21088.

08321-01087

$1.83

26

WASHER | MODEL H/J/L/M/N/P This part replaces 08322-11088.

08322-01087

$1.86

27

COVER, TANK | MODEL H/J/L/M/N/P

69795-38B00

Unavailable

27

COVER, TANK (WITH HOLE) | MODEL R/S

69795-38B10

Unavailable

28

BRACKET, COVER

69790-38B00

Unavailable

29

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.38

30

BOLT, UPPER

01547-06107

$1.67

31

HOSE,RR BRAKE This part replaces 69480-38B01.

69480-38B03

$71.30

32

BOLT (10X1.00X24)

09360-10017

$3.08

33

BOLT (10X1.00X24)

09360-10028

Unavailable

34

CAP

09250-08012

$2.35

35

WASHER (10X15X1.5)

09161-10009

$1.83

36

CLAMP, HOSE

69244-38B00

Unavailable
