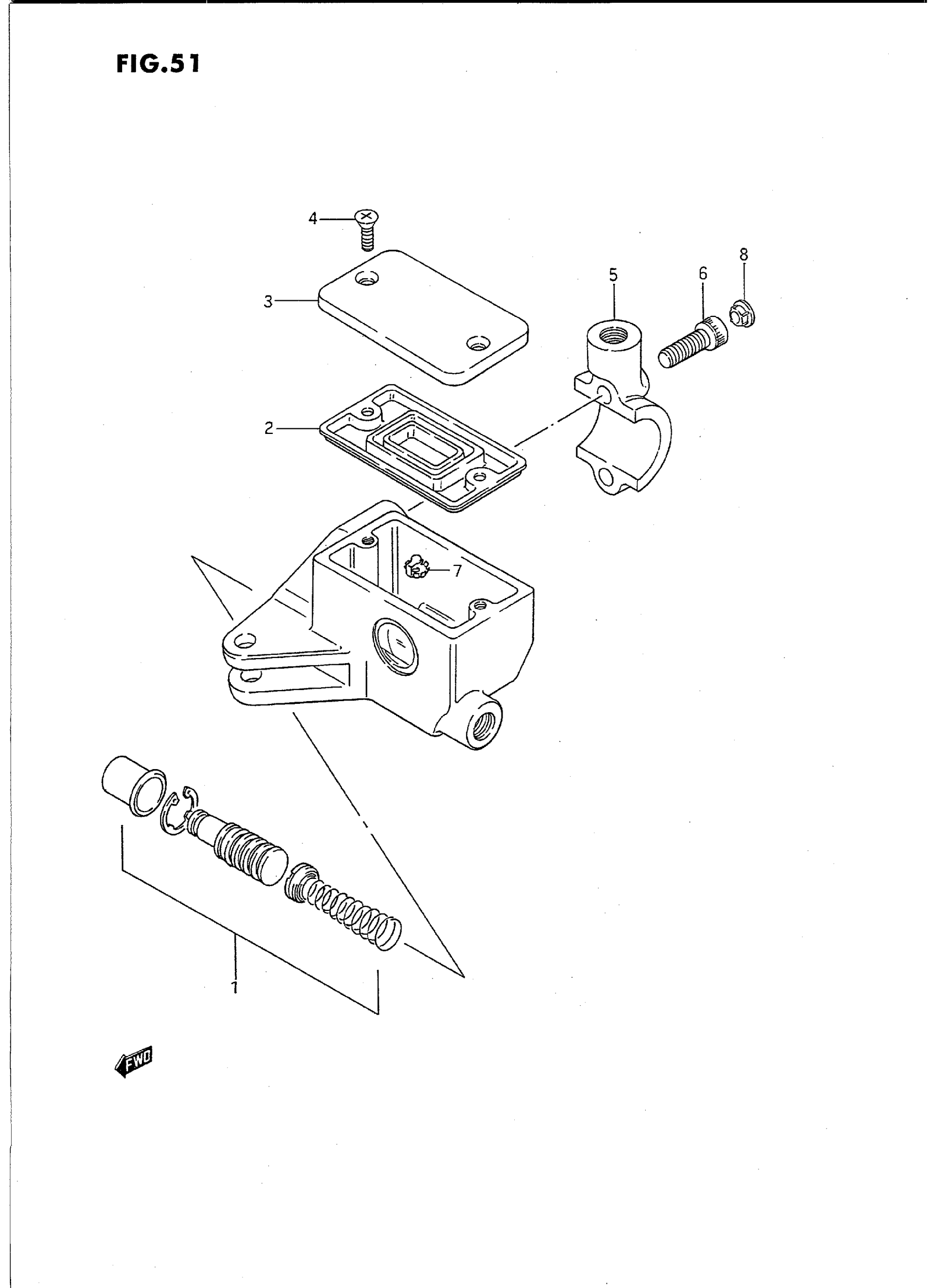

Suzuki VS1400GLPS (1995) FRONT MASTER CYLINDER (MODEL L/M/N/P/R/S) Diagram

CYLINDER ASSY, FRONT MASTER | MICRO SWITCH TYPE; Includes Item(s) 1 - 7

59600-38B30

Unavailable

PISTON/CUP SET This part replaces 59600-36820.

59600-04810

$41.38

DIAPHRAGM

59667-49460

$8.95

CAP

59669-38B10

Unavailable

.SCREW This part replaces 02122-04123.

02122-0412A

$1.95

HOLDER

59671-38A00

$33.97

BOLT

07130-06207

$2.80

PROTECTOR

59664-48B00

$12.43

CAP

09250-05008

$3.44
