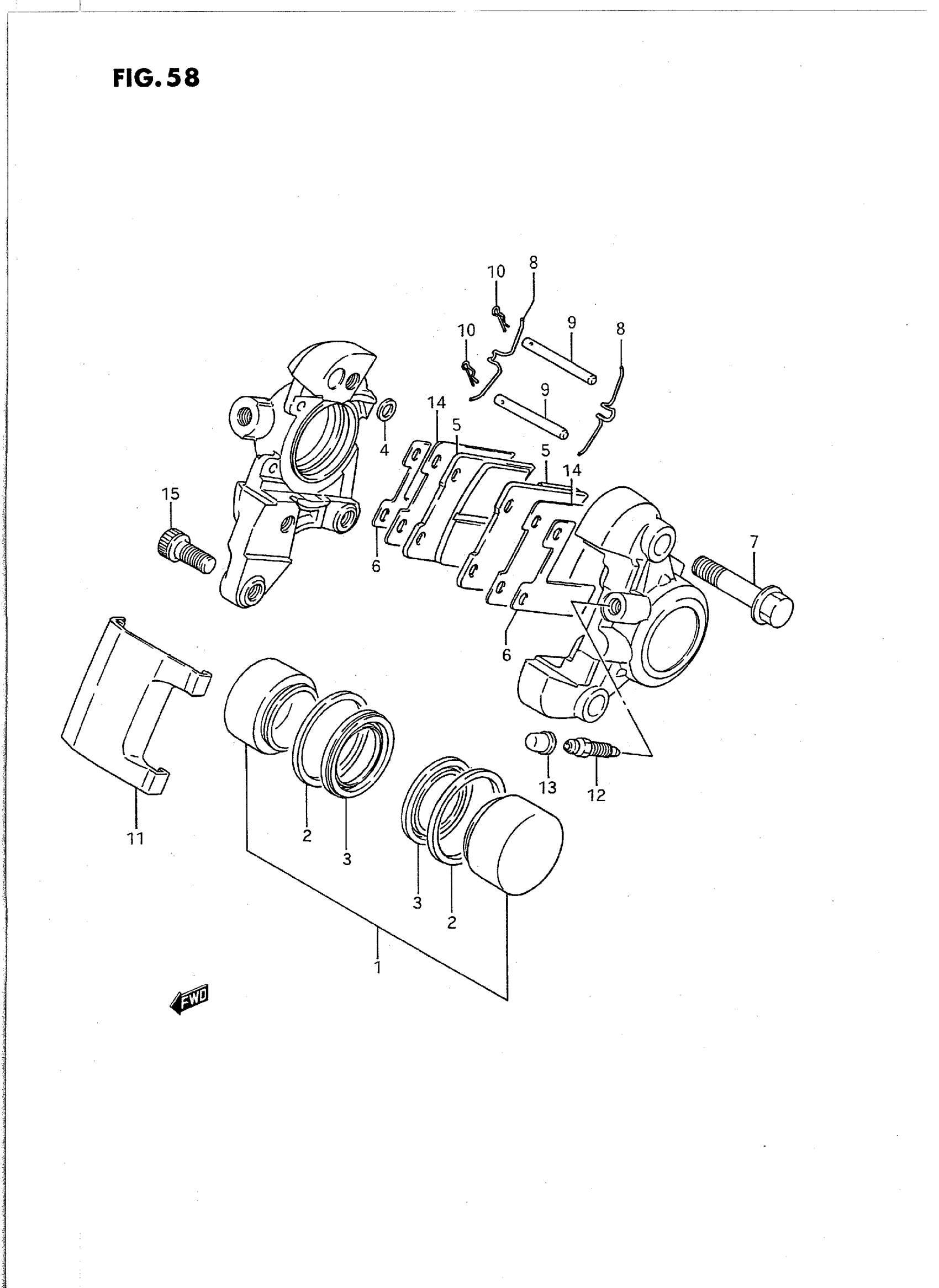

Suzuki VS1400GLPS (1995) REAR CALIPER (MODEL H/J/L/M/N) Diagram

#

Description
Price

CALIPER ASSY, REAR | MODEL H->69100-38B10 This part replaces 69100-38B00.

69100-38B50-999

$395.43

CALIPER ASSY, REAR | MODEL J/L/M/N->69100-38B11; Includes Item(s) 1 - 14 This part replaces 69100-38B10.

69100-38B50-999

$395.43

1

PISTON SET

69100-24821

Unavailable

2

PISTON SEAL This part replaces 55136-66310.

69107-38B00

$9.22

3

BOOT

69108-45000

$8.00

4

SEAL

69107-34200

$9.80

5

PAD SET | MODEL H->69130-38B10 This part replaces 69130-38B00.

69100-38820

$54.46

5

PAD SET | MODEL J/L/M/N This part replaces 69130-38B10.

69100-38820

$54.46

6

SHIM

59371-33420

$17.08

7

BOLT

59145-16700

$9.97

8

SPRING

59143-16700

$5.30

9

PIN

69141-45000

$4.86

10

.CLIP, PAD PIN

69142-45000

$3.97

11

COVER

59151-24A00

Unavailable

12

BLEEDER

59121-18410

$7.99

13

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$4.73

14

SHIM

59371-33410

$16.68

15

BOLT This part replaces 07110-10205.

07130-1020B

$5.00

16

REFER TO FIG.58A(I- 3) FOR

SPECIAL NOTE

Unavailable
