1995 Suzuki VS1400GLPS Clutch Hose Diagram

← All diagrams

Find the part on the Clutch Hose diagram for your 1995 Suzuki VS1400GLPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

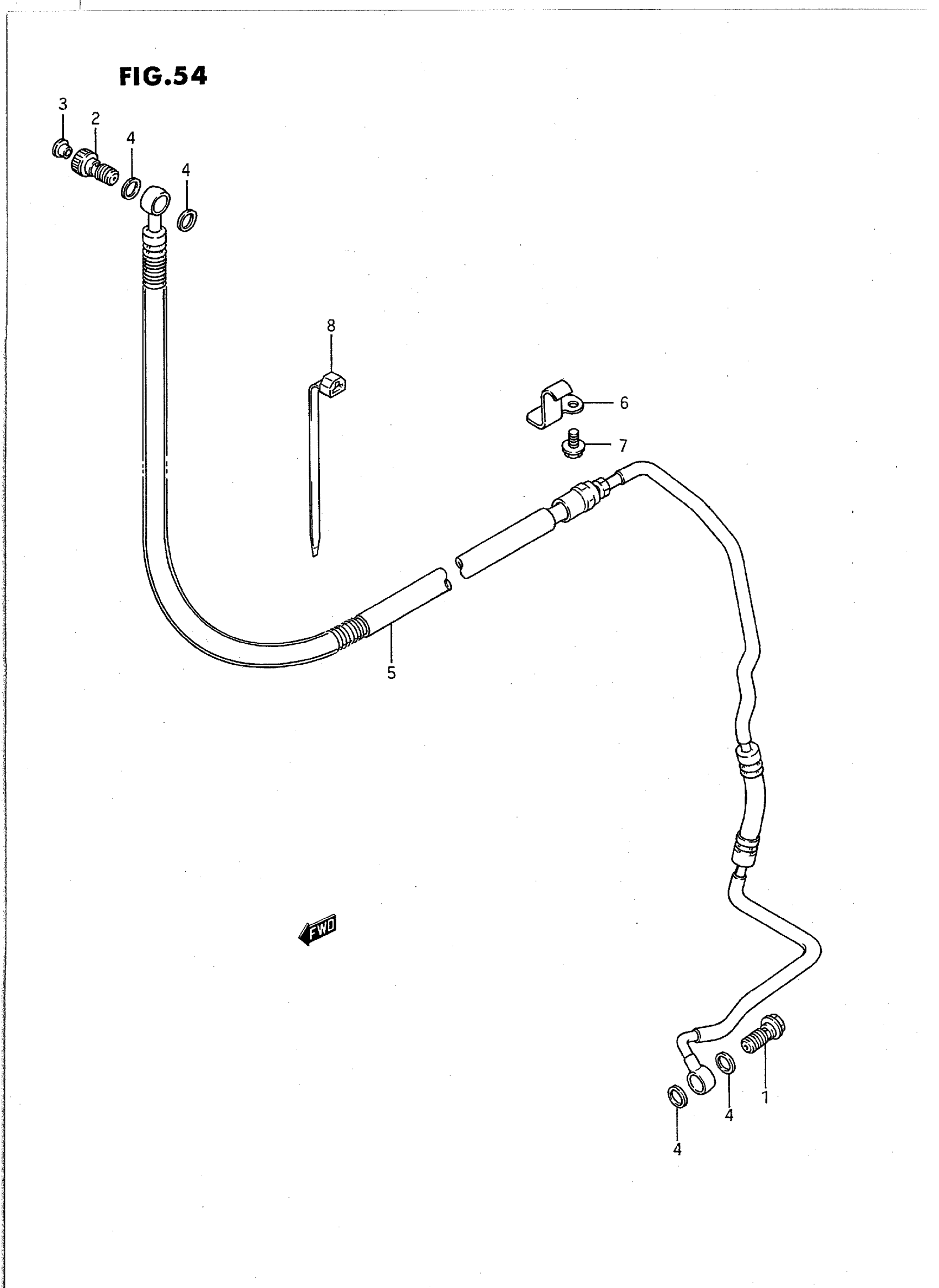

1995 Suzuki VS1400GLPS Clutch Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, LOWER (10X1.00X24)

09360-10017

1
Out of stock

2

BOLT, UPPER (10X1.00X24)

09360-10027

1
Out of stock

3

CAP

09250-08014

1
Out of stock

4

WASHER (10X15X1.5)

09161-10009

4
Out of stock

5

HOSE ASSY, CLUTCH | VS1400GLFH

59900-38B01

1
Out of stock

5

HOSE | VS1400GLPH,MODEL J/L/M/N/PMODEL R/S This part replaces 59900-38B11.

59900-38B12

1
Out of stock

6

CLAMP, HOSE

59542-38B00

1
Out of stock

7

BOLT | MODEL H/J/L/M/N/P This part replaces 01517-06105.

01550-0610A

1
Out of stock

7

BOLT | MODEL R/S This part replaces 01550-06103.

01550-0610A

1
Out of stock

8

CLAMP This part replaces 09407-18403.

09407-18402

1
Out of stock
