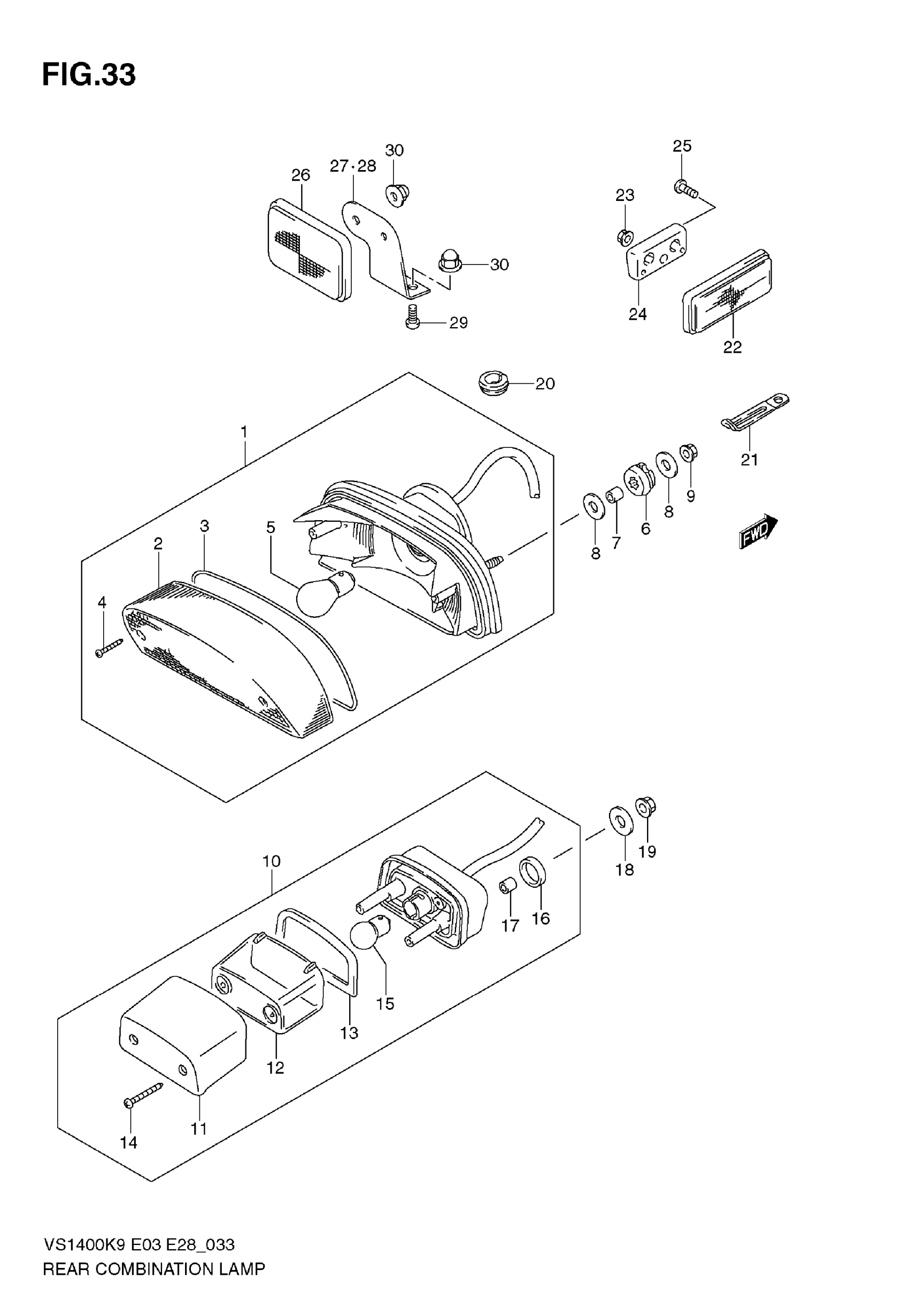

Find the part on the Rear Combination Lamp diagram for your 2009 Suzuki VS1400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki VS1400 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$106.00

In stock

2

LENS

35712-38B30

1

$39.95

In stock

3

GASKET

35713-38B30

1

$8.32

In stock

4

SCREW

03511-0416A

2

$1.95

In stock

5

BULB (12V,27/8W)

09471-12129

1

$14.13

In stock

6

CUSHION

09320-09018

2
Out of stock

7

SPACER (6.5X9X10.5)

09180-06264

2
Out of stock

8

WASHER (6.5X20X1.2)

09160-06077

4
Out of stock

9

NUT

08316-2006B

—
Out of stock

10

LAMP ASSY, LICENSE | Includes Item(s) 11 - 17

35910-38B40

1
Out of stock

11

COVER

35917-38B30

1
Out of stock

12

LENS

35912-38B30

1
Out of stock

13

GASKET

35913-38B30

1
Out of stock

14

SCREW

03211-04207

2

$1.30

In stock

15

BULB (12V,7.5W)

09471-12130

1
Out of stock

16

CUSHION

35762-38B30

2
Out of stock

17

SPACER

35766-38B30

2
Out of stock

18

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

19

NUT

08316-2006B

—
Out of stock

20

GROMMET, LEAD WIRE

09308-12009

1
Out of stock

21

CLAMP, LEAD WIRE (L:45)

09404-06429

1
Out of stock

22

2

$29.32

In stock

23

NUT

08316-1005B

2
Out of stock

24

SPACER

35977-38B12

2

$6.57

In stock

25

SCREW

03511-0512B

4
Out of stock

26

2

$53.69

In stock

27

BRACKET, REAR RR, RH

35974-38B10

1
Out of stock

28

BRACKET, REAR RR, LH

35974-38B20

1
Out of stock

29

SCREW

02142-05107

4

$1.20

In stock

30

NUT

08313-20057

6

$3.05

In stock
