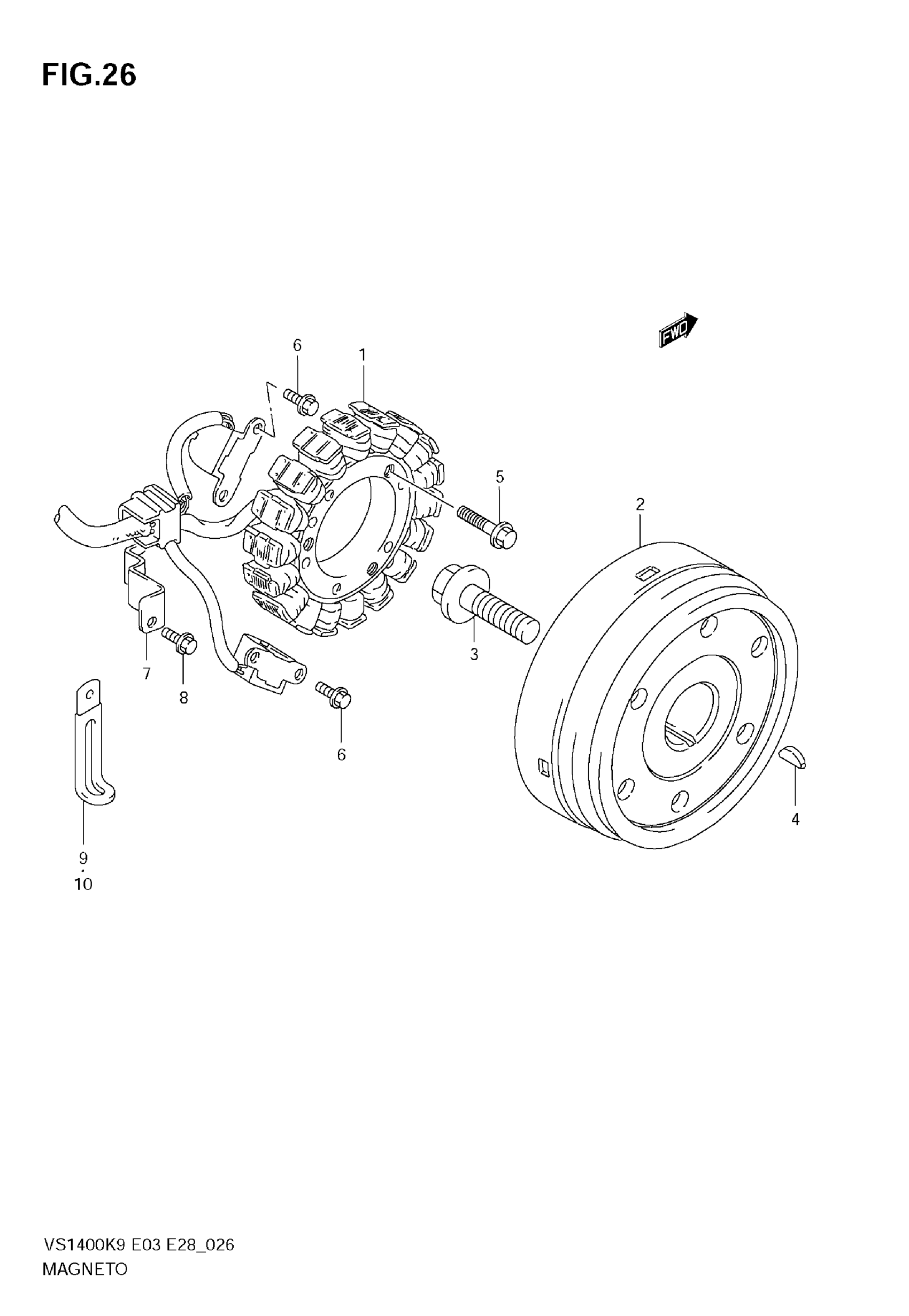

Suzuki VS1400 (2009) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY This part replaces 32101-38B02.

32101-38B03

$872.60

2

ROTOR

32102-38B10

Unavailable

3

BOLT, ROTOR

09103-14001

$12.85

4

KEY

09420-05007

$5.00

5

BOLT, STATOR

01547-0630B

$2.73

6

BOLT

01547-0510B

$3.22

7

CLAMP, LEAD WIRE

32371-45C00

$5.18

8

BOLT

01547-0510B

$3.22

9

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.88

10

CLAMP (L:60)

09404-06429

$1.82
