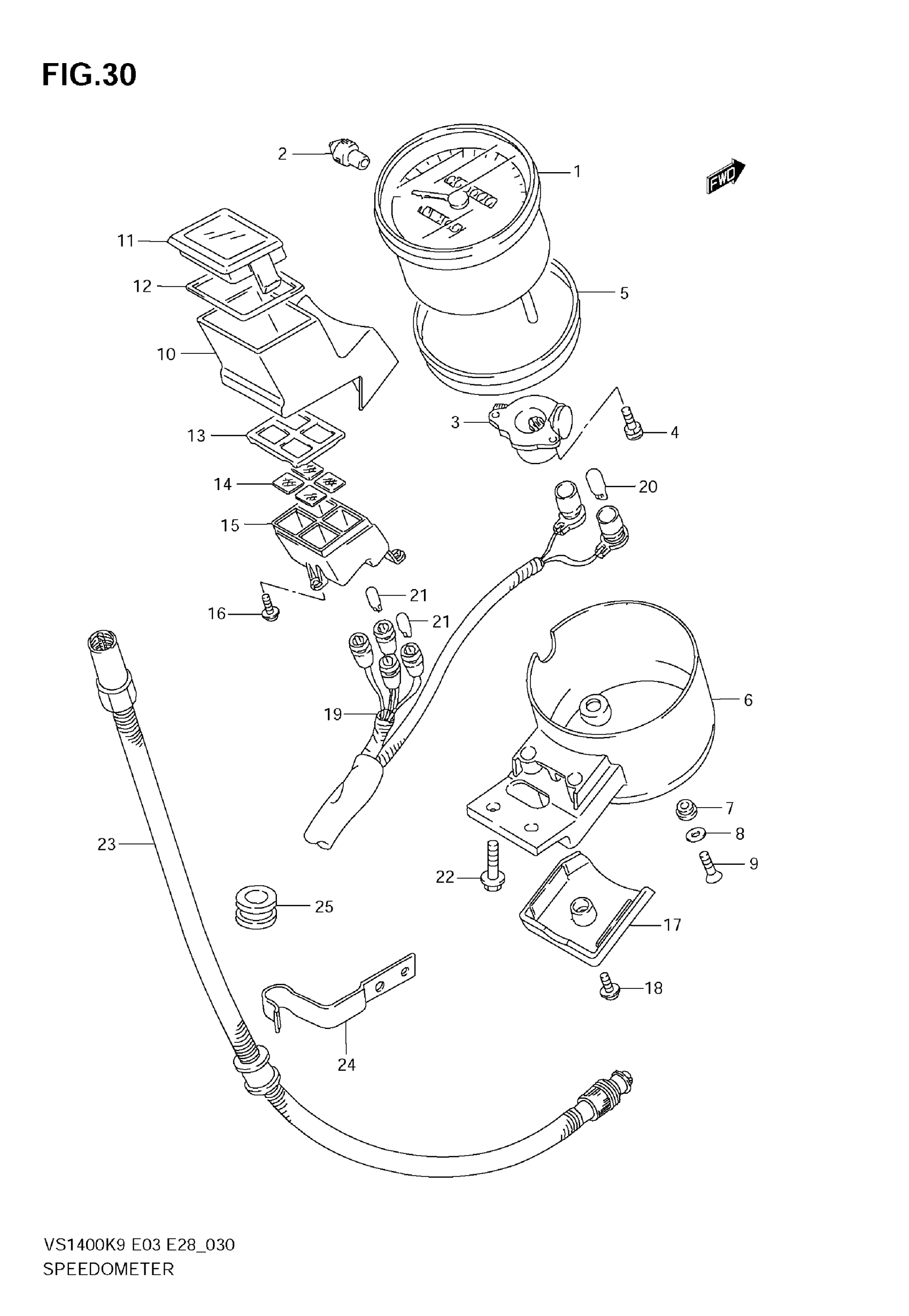

Suzuki VS1400 (2009) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-38BB1

Unavailable

1

SPEEDOMETER (KILO) | E28

34110-38B60

Unavailable

2

KNOB, TRIP

34124-39A10

$17.96

3

BOX, METER GEAR

34131-19B00

Unavailable

4

SCREW

02112-3410A

$2.04

5

CUSHION, METER

34288-39A00

$12.01

6

COVER, METER

34193-38B00

$193.15

7

CUSHION This part replaces 34189-05A30.

34189-05A31

$6.00

8

WASHER

34181-38A00

$3.72

9

SCREW

02112-04087

$1.15

10

BOX, PILOT LAMP

36381-39A20

$120.47

11

LENS, PILOT BOX

36393-38B60

$18.22

12

CUSHION

36395-38A00

$8.32

13

PLATE, PILOT LENS

36386-38A00

Unavailable

14

LENS SET, PILOT LAMP

36300-38870

$15.80

15

CASE, PILOT LAMP

36382-38B30

$24.57

16

SCREW

02112-73083

Unavailable

17

COVER, PILOT BOX

34152-38B31

Unavailable

18

SCREW This part replaces 02112-74083.

02112-7408B

$2.44

19

SOCKET, METER

34173-38BA0

Unavailable

20

BULB (12V,3.4W)

09471-12028

$2.04

21

.BULB (12V1.7W)

09471-12108

$3.18

22

SCREW

02162-0616B

$2.13

23

CABLE ASSY,SPEE This part replaces 34910-38B11.

34910-38B12

$103.40

24

GUIDE, METER CABLE

34938-38A02

$12.02

25

GROMMET This part replaces 09308-13005.

09308-13006

$4.15
