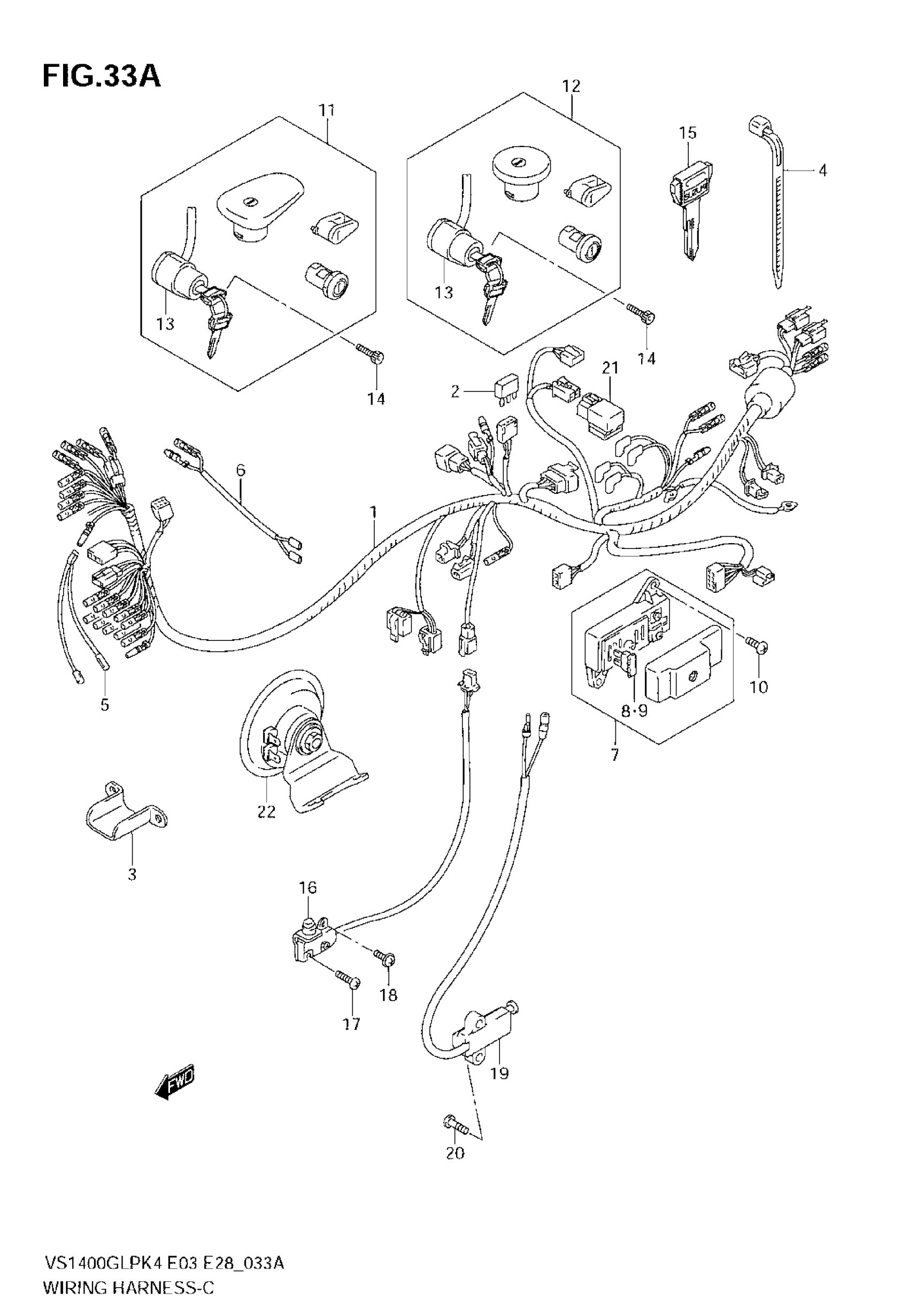

Suzuki VS1400 (2008) WIRING HARNESS (VS1400K5) Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-38BH0

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$12.39

3

GUIDE, WIRING HARNESS

36619-38B00

Unavailable

4

CLAMP (L:125)

09407-14403

$2.24

4

CLAMP (L:145)

09407-14407

$2.80

4

CLAMP (L:165)

09407-18402

$2.21

5

WIRE, CLUTCH SWITCH

36852-38B10

Unavailable

6

WIRE, HORN LEAD

38595-38B10

Unavailable

7

BOX ASSY, FUSE | Includes Item(s) 8 - 9

36740-19C00

$104.23

8

.FUSE (25A) This part replaces 09481-25101.

09481-25103

Unavailable

9

FUSE (10A)

09481-10101

$0.68

10

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

11

LOCK SET

37000-38850

Unavailable

12

LOCK SET | E33; Includes Item(s) 13

37000-38860

Unavailable

13

SWITCH ASSY, IGNITION

37110-38B03

$113.37

14

BOLT This part replaces 07130-05163.

07130-0516A

$2.51

15

KEY, BLANK TYPE C | OPT

37146-03A00

$9.32

15

KEY, BLANK TYPE D | OPT

37146-03A10

$13.13

15

KEY, BLANK TYPE E | OPT

37146-03A20

$13.65

15

KEY, BLANK TYPE F | OPT

37146-03A30

$9.68

16

SWITCH ASSY, STOP LAMP

37740-38B00

$103.22

17

SCREW This part replaces 02112-04163.

02112-0416A

$1.24

18

SCREW This part replaces 02142-04063.

02142-0406A

Unavailable

19

SWITCH ASSY,SD This part replaces 37840-39A22.

37840-39A23

$122.53

20

SCREW This part replaces 02112-76203.

02112-7620B

$2.80

21

RELAY ASSY, SIDE STAND

38740-38B00

$71.43

22

HORN ASSY

38500-38B10

Unavailable
