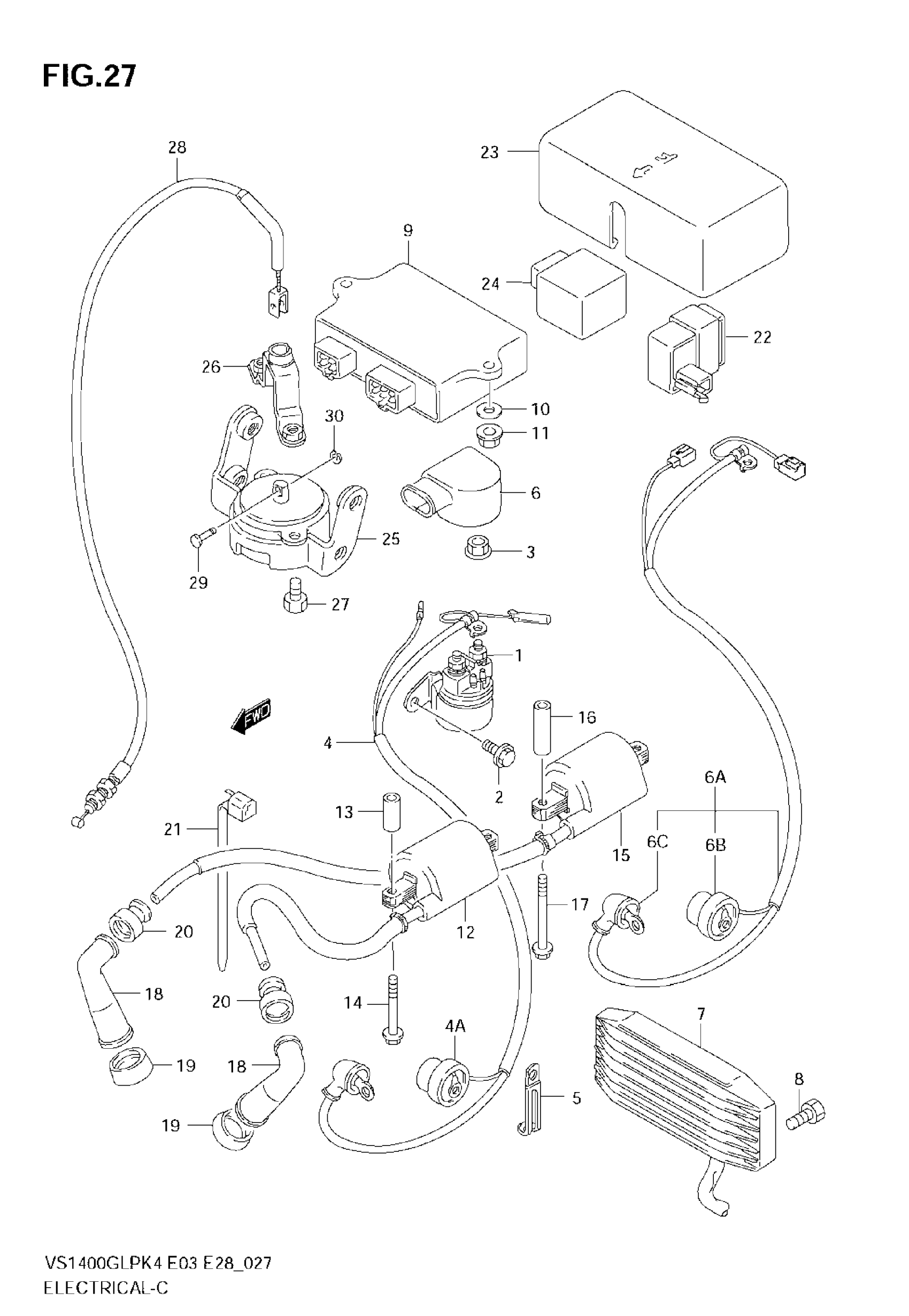

Suzuki VS1400 (2008) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-49100

$89.07

2

BOLT

01550-0610B

$2.43

3

NUT

08361-3506A

$1.81

4

WIRE, STARTER MOTOR | MODEL K4/K5/K6; Includes Item(s) 4A

33850-38B00

Unavailable

4A

CAP, OIL PRESSURE | MODEL K4/K5/K6

36618-43410

$3.28

5

CLAMP This part replaces 09404-06401.

09404-06039

$1.73

6

CAP, STARTER RELAY

33624-49401

$8.13

6A

WIRE, STARTER MOTOR | MODEL K7/K8; Includes Item(s) 6B - 6C

33810-38B00

Unavailable

6B

CAP, OIL PRESSURE | MODEL K7/K8

36618-43410

$3.28

6C

CAP, STARTER MOTOR | MODEL K7/K8

31861-48B10

$7.40

7

RECTIFIER, REGULATOR

32800-12E01

$356.60

8

BOLT

01500-0610B

$1.82

9

IGNITER UNIT

32900-38B50

$1,765.55

10

WASHER (6.5X16X4) | MODEL K4

09160-06131

$2.53

11

NUT

08316-1006B

$2.50

12

COIL ASSY,IGNIT This part replaces 33410-38B00.

33410-38B01

$140.90

13

SPACER (6.4X10X22)

09180-06178

$4.90

14

BOLT

01570-0545B

$4.18

15

COIL ASSY,IGNIT This part replaces 33420-38B00.

33420-38B01

$130.98

16

SPACER (6.4X10X32)

09180-06179

$4.90

17

BOLT

01570-0555B

Unavailable

18

CAP, SPARK PLUG

33510-38B00

$35.80

19

SEAL, SPARK PLUG

33541-47D00

$7.16

20

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

21

CLAMP, HIGH TENSION CORD

09407-14403

$2.24

22

RELAY, FUEL CUT

33950-38B00

$74.20

23

COVER,RELAY This part replaces 33951-38B00.

33951-38B01

$20.88

24

CONTROL UNIT, DECOMP

32910-24B10

$111.99

25

SOLENOID ASSY, DECOMP

33970-38B00

$467.95

26

BRACKET, DECOMP SOLENOID

33971-38B00

Unavailable

27

BOLT

01550-0612B

$2.38

28

CABLE, DECOMP, FR | MODEL K4/K5 This part replaces 58900-38B01.

58900-38B20

$65.62

28

CABLE, DECOMP FRONT | MODEL K6/K7/K8

58900-38B20

$65.62

29

PIN

09209-04020

Unavailable

30

E RING

08332-1103A

$2.35
