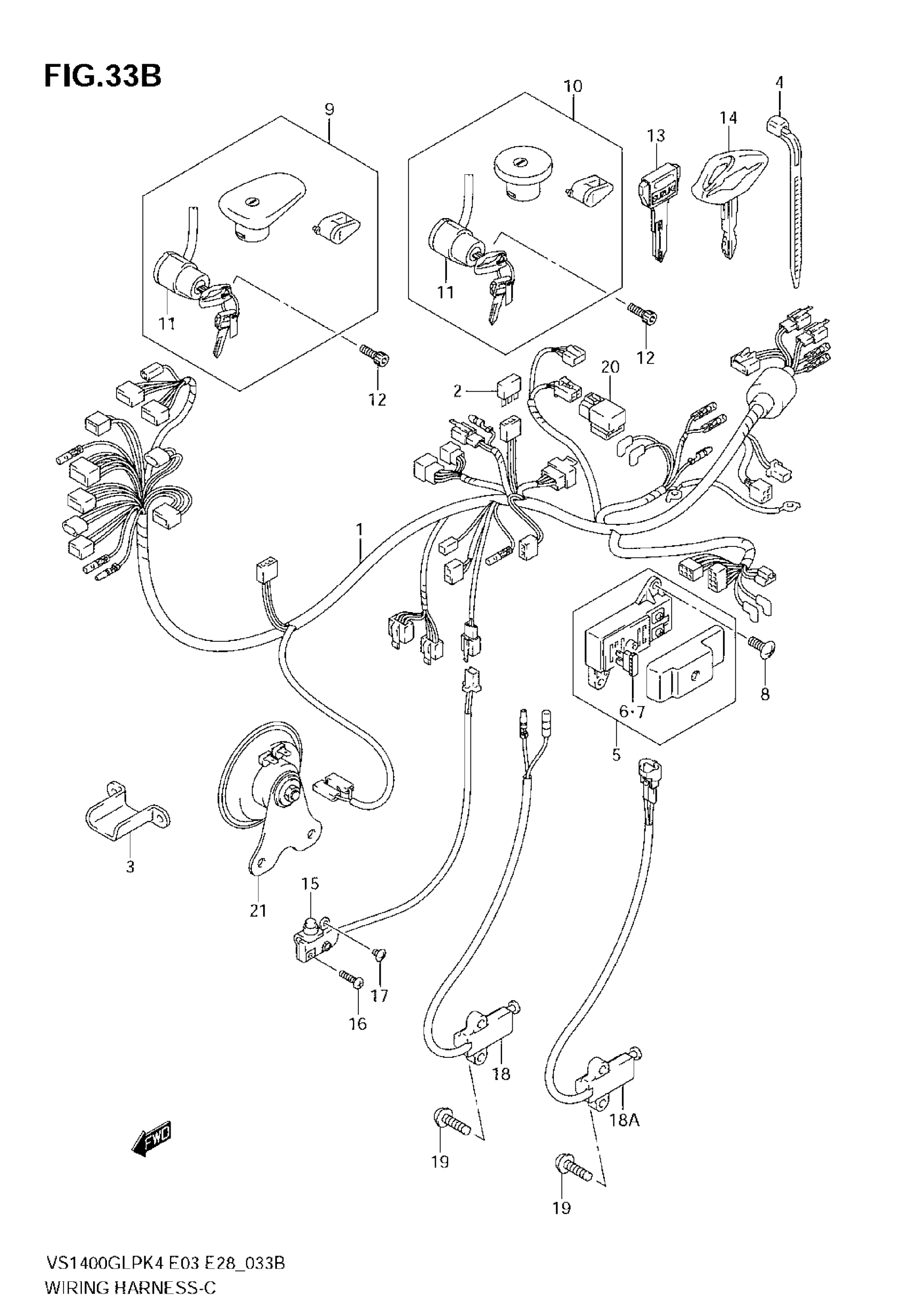

Suzuki VS1400 (2008) WIRING HARNESS (VS1400K6/K7/K8) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL K6

36610-38BK0

Unavailable

1

HARNESS, WIRING | MODEL K7/K8; Includes Item(s) 2

36610-38BL0

Unavailable

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$12.39

3

GUIDE, WIRING HARNESS

36619-38B00

Unavailable

4

CLAMP (L:95)

09407-11401

$2.87

4

CLAMP (L:125)

09407-14403

$2.24

4

CLAMP (L:145)

09407-14407

$2.80

4

CLAMP (L:165)

09407-18402

$2.21

5

BOX ASSY, FUSE | Includes Item(s) 6 - 7

36740-19C00

$104.23

6

.FUSE (25A) This part replaces 09481-25101.

09481-25103

Unavailable

7

FUSE (10A)

09481-10101

$0.68

8

SCREW

02142-0616B

$1.80

9

LOCK SET

37100-38860

Unavailable

10

LOCK SET | E33; Includes Item(s) 11

37100-38870

Unavailable

11

SWITCH ASSY, IGNITION

37110-38B10

Unavailable

12

BOLT

07130-0516B

$2.67

13

KEY, BLANK TYPE C | OPT

37146-03A00

$9.32

13

KEY, BLANK TYPE D | OPT

37146-03A10

$13.13

13

KEY, BLANK TYPE E | OPT

37146-03A20

$13.65

13

KEY, BLANK TYPE F | OPT

37146-03A30

$9.68

14

KEY, BLANK "BOULEVARD" | OPT,TYPE C

37146-38B00

$58.52

14

KEY, BLANK "BOULEVARD" | OPT,TYPE D

37146-38B10

$58.52

14

KEY, BLANK "BOULEVARD" | OPT,TYPE E

37146-38B20

$58.52

14

KEY, BLANK "BOULEVARD" | OPT,TYPE F

37146-38B30

$58.52

15

SWITCH ASSY, STOP LAMP

37740-38B00

$103.22

16

SCREW

02112-0416B

Unavailable

17

SCREW

02142-0406B

Unavailable

18

SWITCH ASSY,SD | MODEL K6 This part replaces 37840-39A22.

37840-39A23

$122.53

18A

SWITCH ASSY, SIDE STAND | MODEL K7/K8

37840-39A30

Unavailable

19

SCREW

02112-7620B

$2.80

20

RELAY ASSY, SIDE STAND

38740-38B00

$71.43

21

HORN ASSY

38500-38B20

Unavailable
