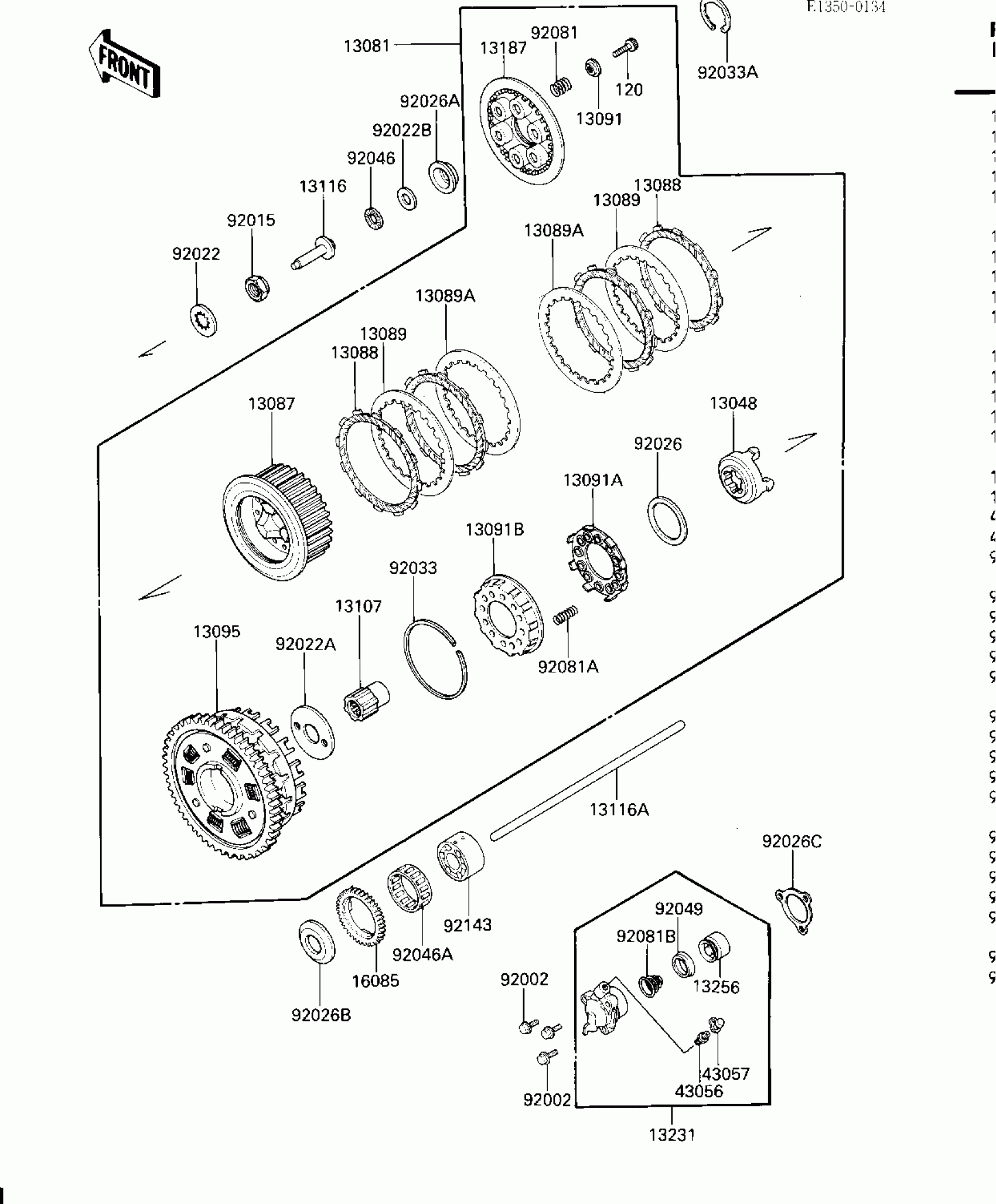

Find the part on the Clutch diagram for your 1986 Kawasaki Voyager Xii, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

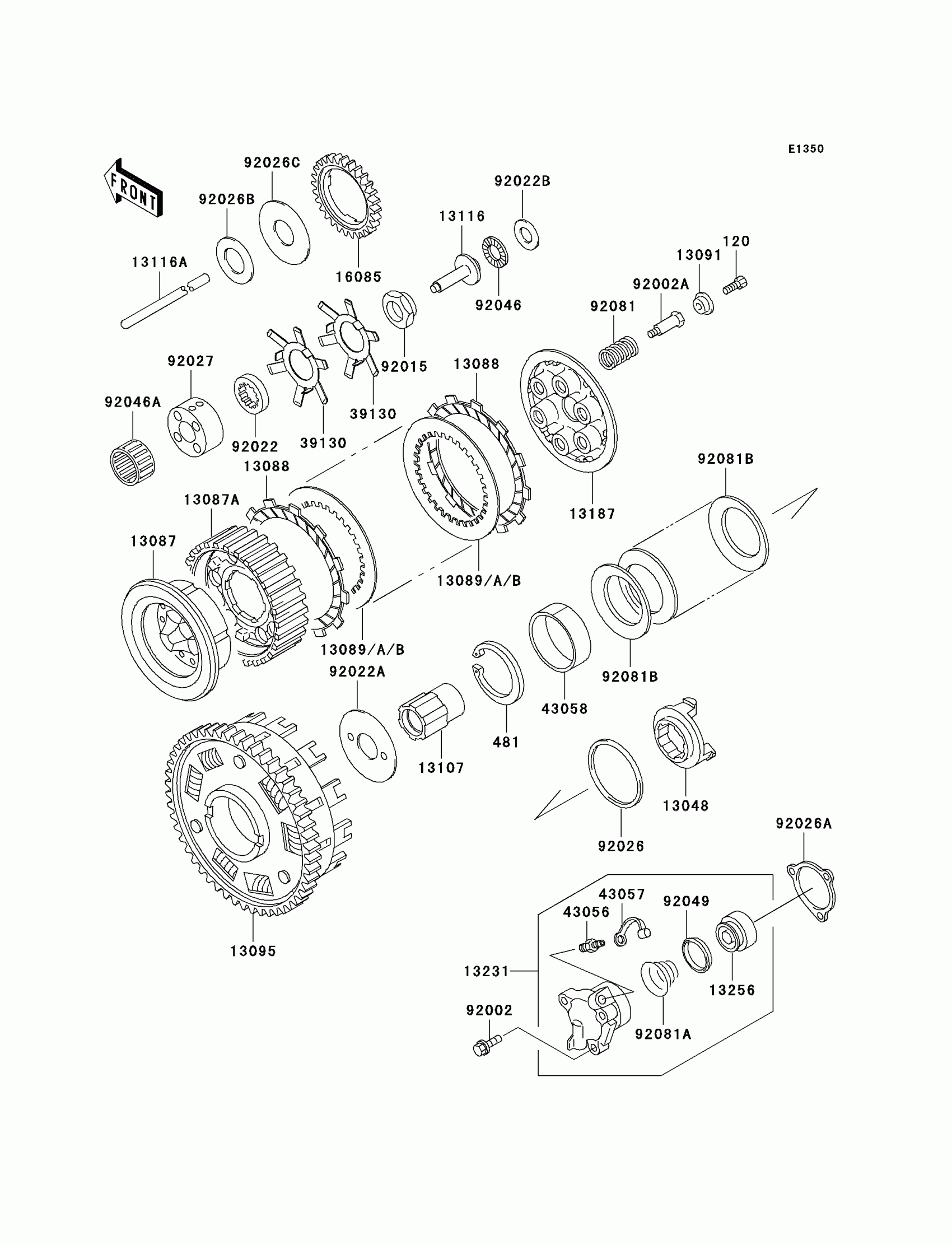

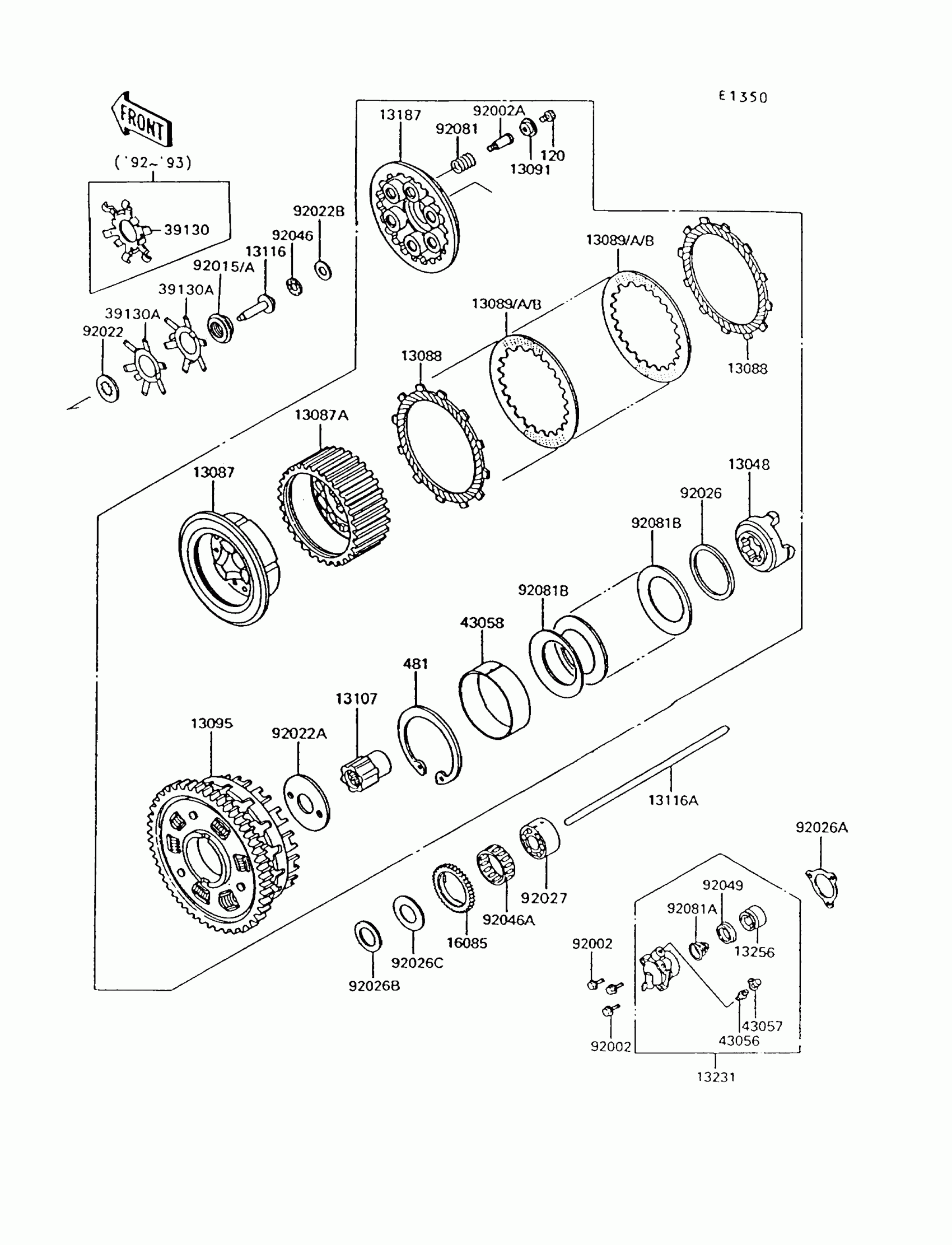

1986 Kawasaki Voyager Xii Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13048

CAM-DAMPER

13048-1007

1
Out of stock

13081

CLUTCH-ASSY

13081-1259

1
Out of stock

13087

HUB-CLUTCH

13087-1082

1
Out of stock

13088

PLATE-FRICTION

13088-1051

1
Out of stock

13089

PLATE-CLUTCH,T=2.6

13089-1067

1
Out of stock

13089A

PLATE-CLUTCH,T=2.9

13089-1071

1
Out of stock

13091

HOLDER,CLUTCH SPRING

13091-1041

1
Out of stock

13091A

HOLDER,DAMPER SPRING,RH

13091-1042

1
Out of stock

13091B

HOLDER,DAMPER SPRING,LH

13091-1043

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1252

1
Out of stock

13107

SHAFT,CLUTCH

13107-1161

1
Out of stock

13116

ROD-PUSH,CLUTCH

13116-1102

1
Out of stock

13116A

ROD-PUSH,L=343

13116-1121

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1056

1
Out of stock

13231

RELEASE-ASSY-CLUTCH

13231-1057

1
Out of stock

13256

PISTON,CLUTCH RELEASE

13256-1051

1
Out of stock

16085

GEAR,OIL PUMP,37T

16085-1157

1
Out of stock

43056

BREATHER

43056-1052

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

92002

BOLT,6X25

92002-1612

1
Out of stock

92015

NUT,20MM

92015-1555

1
Out of stock

92022

WASHER,TOOTHED,25X40X5

92022-1114

1
Out of stock

92022A

WASHER,CLUTCH THRUST

92022-1221

1
Out of stock

92022B

WASHER,15.1X29X1.0

92022-1463

1
Out of stock

92026

SPACER,59X70X3.5

92026-1043

1
Out of stock

92026A

SPACER,CLUTCH

92026-1202

1
Out of stock

92026B

SPACER

92026-5001

1
Out of stock

92026C

SPACER,CLUTCH RELEASE

92026-1263

1
Out of stock

92033

RING-SNAP

92033-1029

1
Out of stock

92033A

RING-SNAP,50MM

92033-1177

1
Out of stock

92046

BEARING-NEEDLE,AXK1102

92046-1052

1
Out of stock

92046A

BEARING-NEEDLE,K556020

92046-1152

1
Out of stock

92049

SEAL-OIL,PISTON

92049-1165

1
Out of stock

92081

SPRING,CLUTCH

92081-1114

1
Out of stock

92081A

SPRING,CLUTCH DAMPER

92081-1115

1
Out of stock

92081B

SPRING,CLUTCH RELEASE

92081-1644

1
Out of stock

92183

COLLAR,INPUTSHAFT

92027-1967

1
Out of stock

120

UNAVAILABLE IN PRICE BOOK

120A0616

1
Out of stock
