1986 Kawasaki Voyager XII Transmission Diagram

← All diagrams

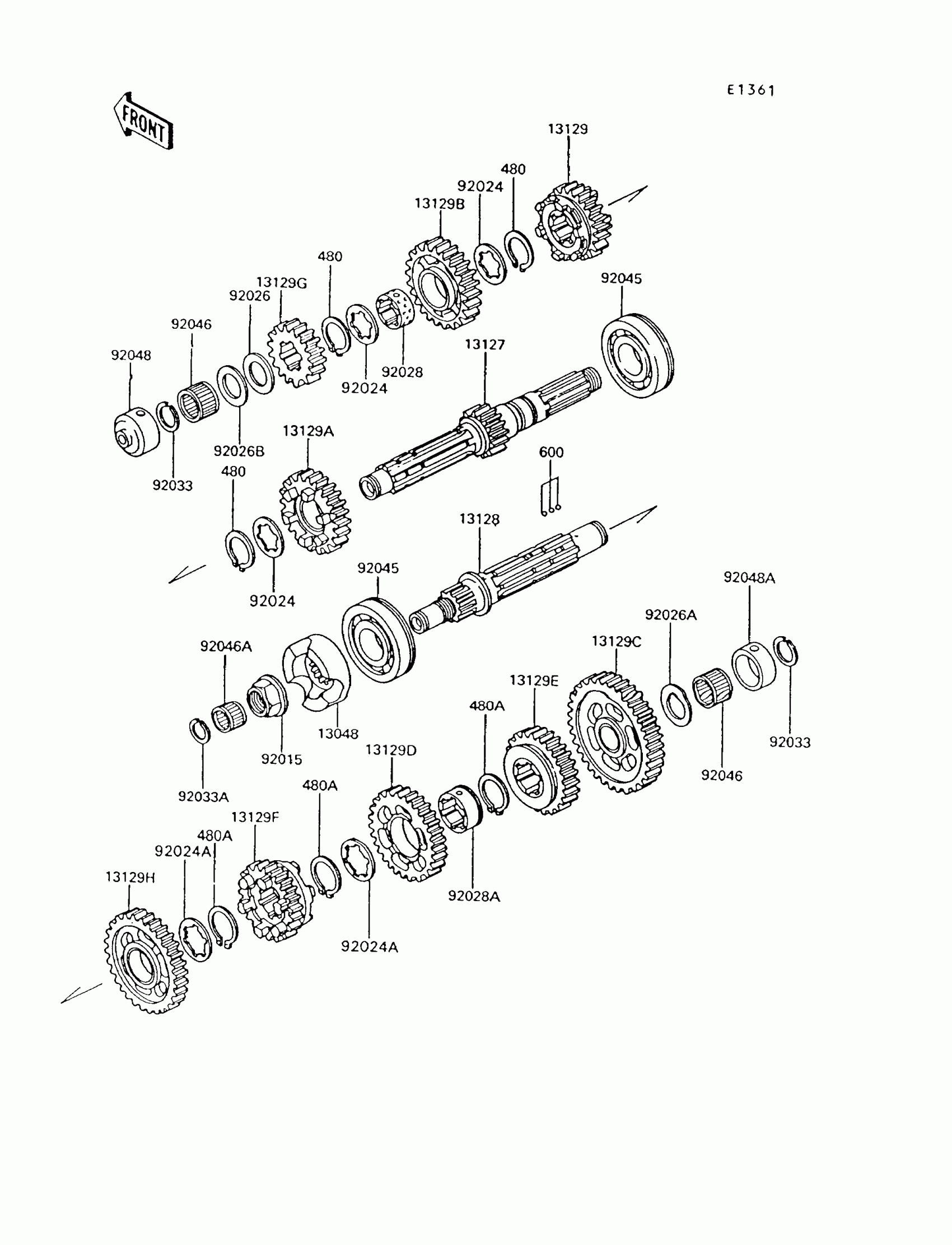

Find the part on the Transmission diagram for your 1986 Kawasaki Voyager XII, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Kawasaki Voyager XII Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13048

CAM-DAMPER

13048-1066

1
Out of stock

13127

SHAFT-TRANSMISSION INPUT,15T

13127-1133

1
Out of stock

13128

SHAFT-TRANSMISSION OUTPUT

13128-1130

1
Out of stock

13129

GEAR,INPUT 3RD,24T

13129-1765

1
Out of stock

13129A

GEAR,INPUT 4TH,28T

13129-1766

1
Out of stock

13129B

GEAR,INPUT TOP,31T

13129-1767

1
Out of stock

13129C

GEAR,OUTPUT LOW,41T

13129-1768

1
Out of stock

13129D

GEAR,OUTPUT 3RD,32T

13129-1770

1
Out of stock

13129E

GEAR,OUTPUT 4TH,29T

13129-1771

1
Out of stock

13129F

GEAR,OUTPUT TOP,26T

13129-1772

1
Out of stock

13129G

GEAR,INPUT 2ND,20T

13129-1836

1
Out of stock

13129H

GEAR,OUTPUT 2ND,36T

13129-1837

1
Out of stock

92015

NUT

92015-1543

1
Out of stock

92022

WASHER,TOOTHED,26X35.5X1.5

92024-042

1
Out of stock

92022A

WASHER,TOOTHED,30.3X40X1.5

92024-043

1
Out of stock

92026

SPACER,22X35.5X1.0

92026-1020

1
Out of stock

92026A

SPACER,22X35.5X2.4

92026-1225

1
Out of stock

92026B

SPACER,22X35.5X1.8

92026-1226

1
Out of stock

92028

BUSHING,TOP GEAR

92028-1124

1
Out of stock

92028A

BUSHING

92028-1403

1
Out of stock

92033

RING-SNAP,20X25.5X1.2

92033-025

1
Out of stock

92033A

RING-SNAP

92033-1208

1
Out of stock

92045

BEARING-BALL

92045-1197

1
Out of stock

92046

BEARING-NEEDLE,FWF-223014

92046-031

1
Out of stock

92046A

BEARING-NEEDLE,K182420V1

92046-1154

1
Out of stock

92048

RACE,INPUT SHAFT

92048-1052

1
Out of stock

92048A

RACE,30X38X15

92048-1053

1
Out of stock

480

CIRCLIP-TYPE-C,28MM

480J2800

1
Out of stock

480A

CIRCLIP

480J2900

1
Out of stock

600

BALL-STEEL,5/32

600A0500

1
Out of stock
