1988 Kawasaki Voyager Swingarm Diagram

← All diagrams

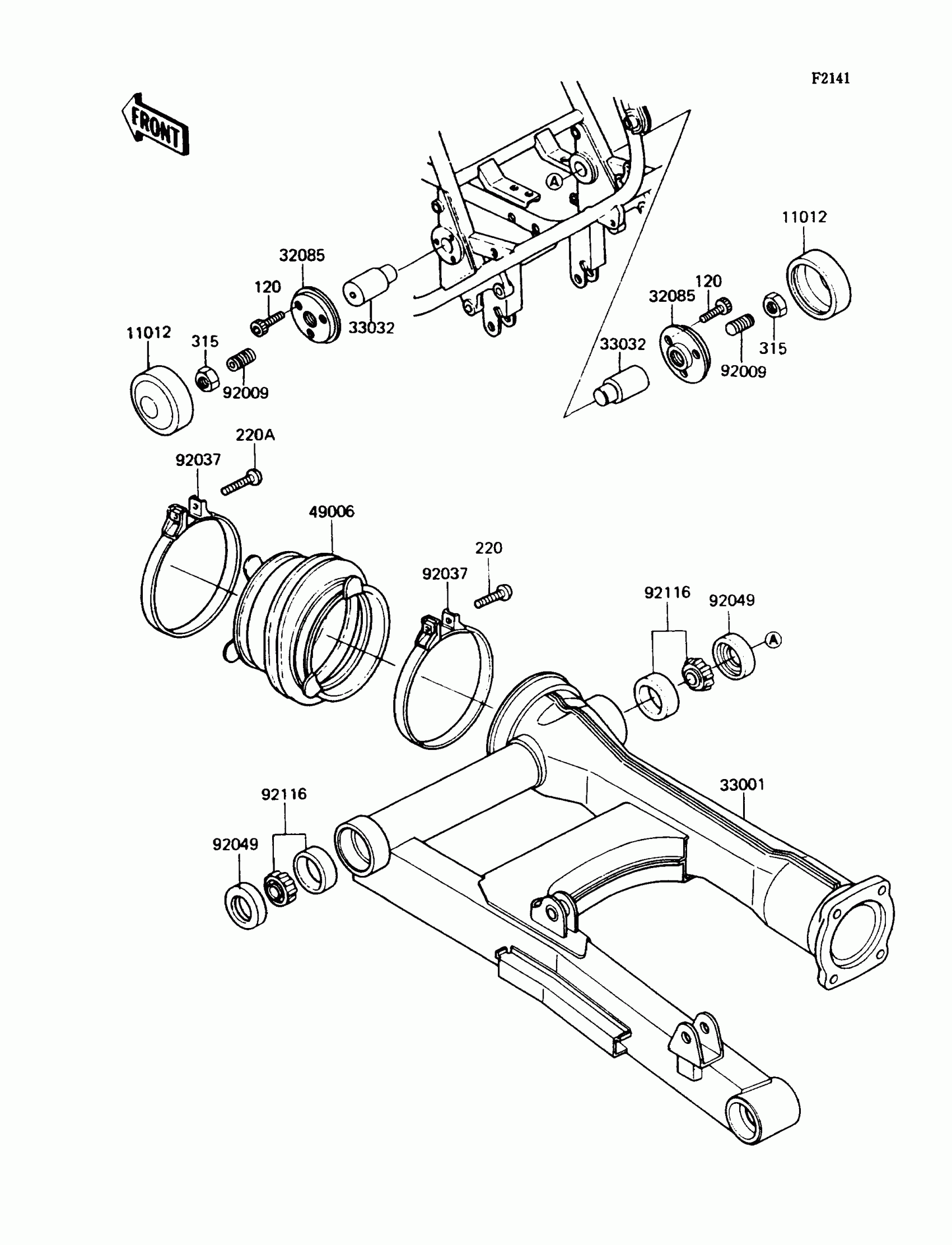

Find the part on the Swingarm diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki Voyager Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,SWING ARM

11012-1282

1
Out of stock

32085

STOPPER,SWING ARM

32085-1116

1

$40.07

In stock

33001

ARM-COMP-SWING

33001-1162

1

$436.03

In stock

33032

SHAFT-SWING ARM

33032-1036

1

$58.78

In stock

49006

BOOT,SWING ARM

49006-1020

1

$41.45

In stock

92009

SCREW,SET,14X22

92009-1087

1
Out of stock

92037

CLAMP,SWING ARM BOOT

92037-1097

1
Out of stock

92049

SEAL-OIL,26406

92049-1030

1
Out of stock

92116

1

$34.73

In stock

120

BOLT-SOCKET,8X20

120S0820

1
Out of stock

220

SCREW-PAN-CROS

220B0420

1
Out of stock

220A

SCREW-PAN-CROS

220B0430

1

$0.80

In stock

315

NUT-HEX-FINE,14MM

315B1400

1
Out of stock
