1988 Kawasaki Voyager Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

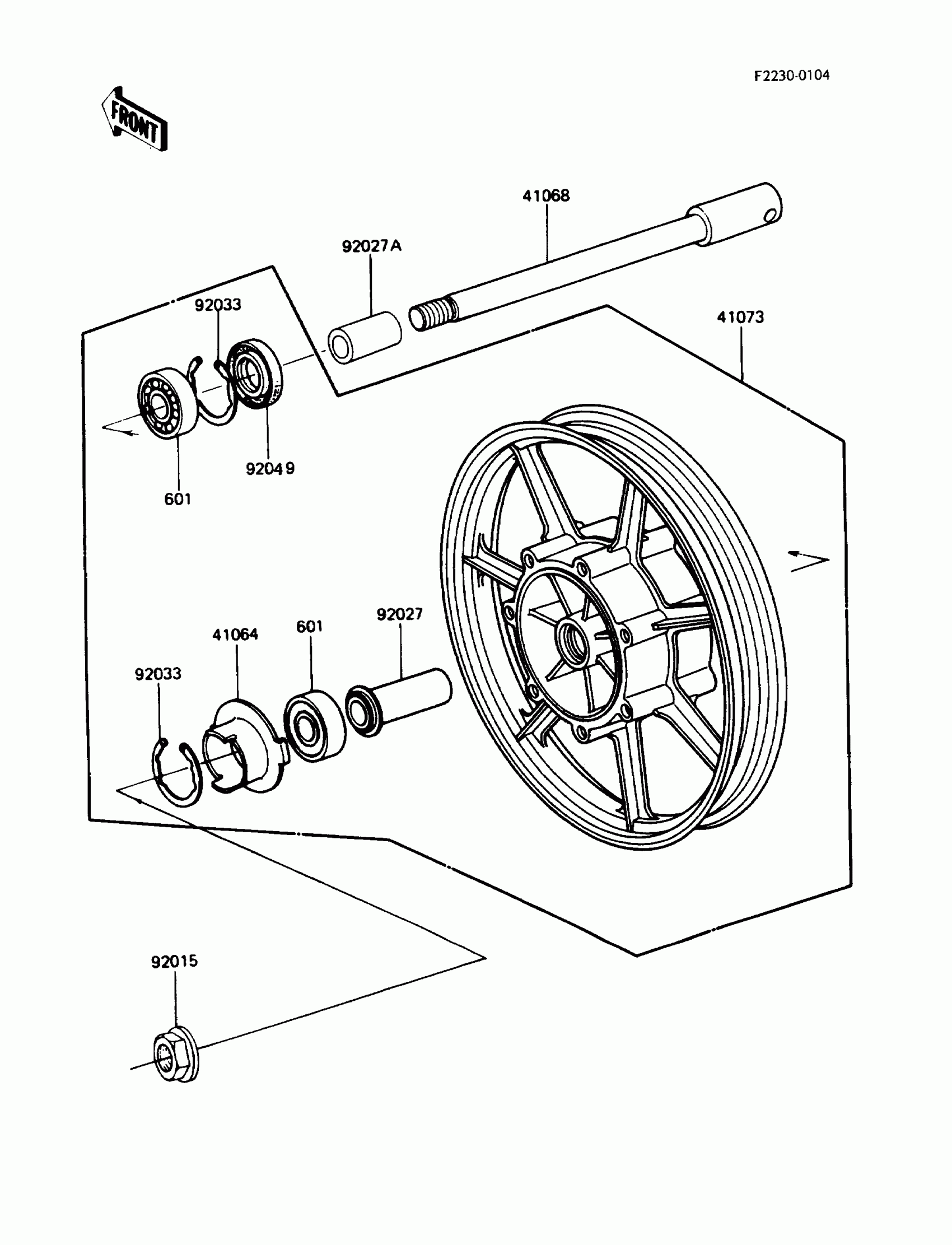

1988 Kawasaki Voyager Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41064

1

$23.51

In stock

41068

AXLE,FR

41068-1123

1

$104.66

In stock

41073

1

$632.42

In stock

92015

NUT,16MM

92015-1041

1
Out of stock

92027

1

$16.19

In stock

92027A

COLLAR,17X28X30

92027-1697

1

$11.75

In stock

92033

RING-SNAP,47MM

92033-1042

1

$3.36

In stock

92049

SEAL-OIL,BJN28475

92049-1056

1
Out of stock

601

BEARING-BALL

601B6303U

1

$23.77

In stock
