1986 Kawasaki Voyager Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1986 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

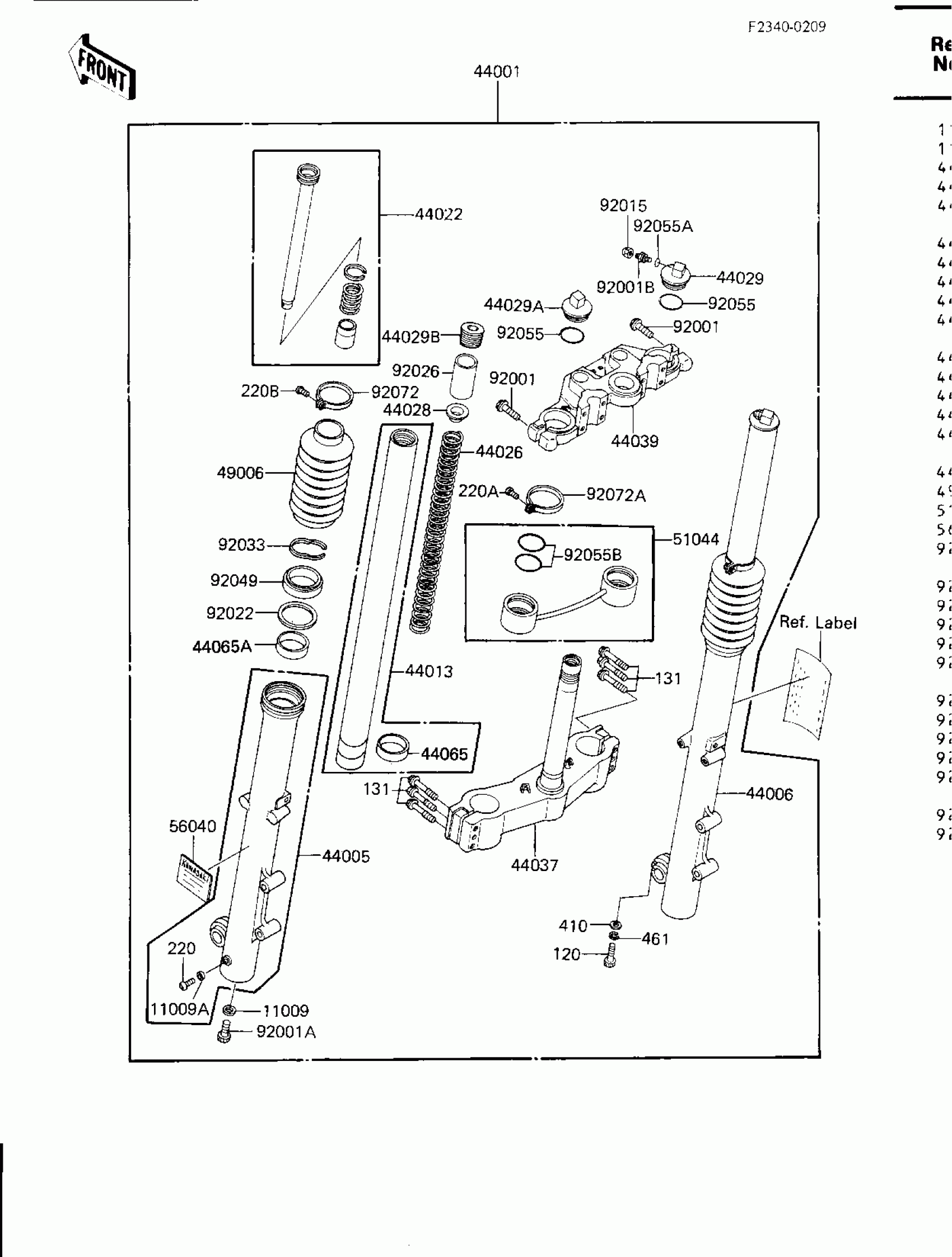

1986 Kawasaki Voyager Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.12

In stock

11009A

1

$4.12

In stock

44001

FORK-FRONT

44001-1463

1

$1,450.16

In stock

44005

1

$375.75

In stock

44006

1

$375.75

In stock

44013

PIPE-FORK INNER

44013-1206

1

$329.70

In stock

44022

CYLINDER-FORK

44022-1156

1

$104.24

In stock

44026

SPRING-FRONT FORK

44026-1261

1

$64.25

In stock

44028

GUIDE-FORK SPRING

44028-1051

1

$5.53

In stock

44029

SEAT-FORK SPRING,RH

44029-1102

1

$36.58

In stock

44029A

SEAT-FORK SPRING,LH

44029-1103

1

$36.58

In stock

44029B

SEAT-FORK SPRING

44029-1104

1

$17.59

In stock

44037

HOLDER-FORK UNDER

44037-1112

1

$443.11

In stock

44039

HOLDER-FORK UPPER

44039-1076

1

$379.97

In stock

44065

PISTON-FORK

44018-1006

1
Out of stock

44065A

BUSHING-FRONT FORK

44065-1064

1

$34.45

In stock

49006

BOOT,FRONT FORK

49006-1159

1

$87.38

In stock

51044

1

$109.31

In stock

56040

LABEL-WARNING,FRONT FORK

56040-1110

1
Out of stock

92001

BOLT,FLANGED,10X45

92001-1189

1
Out of stock

92001A

BOLT,FORK CYLINDER

92001-1309

1

$6.06

In stock

92001B

BOLT,NIPPLE

92001-1878

1

$23.12

In stock

92015

NUT,CAP

92015-1326

1
Out of stock

92022

1

$6.82

In stock

92026

1

$3.75

In stock

92033

RING-SNAP

92033-1036

1

$5.15

In stock

92049

SEAL-OIL

92049-1164

1
Out of stock

92055

RING-O,FORK TOP CAP

92055-1050

1

$4.97

In stock

92055A

"0" RING,AIR VALVE

92055-1094

1

$1.14

In stock

92055B

RING-O,FORK AIR TUBE

92055-1106

1
Out of stock

92072

BAND,BOOT

92072-1077

1

$7.92

In stock

92072A

BAND

92072-1157

1
Out of stock

120

BOLT-SOCKET,8X30

120S0830

1
Out of stock

131

BOLT-FLANGED,8X45

131G0845

1
Out of stock

220

SCREW PAN HEAD 4X8

220B0408

1
Out of stock

220A

SCREW-PAN-CROS

220B0414

1
Out of stock

220B

SCREW PAN HEAD 4X16

220B0416

1
Out of stock

410

WASHER PLAIN 8MM

410B0800

1
Out of stock

461

WASHER SPRING 8MM

461F0800

1
Out of stock
