1988 Kawasaki Voyager Other Diagram

← All diagrams

Find the part on the Other diagram for your 1988 Kawasaki Voyager, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

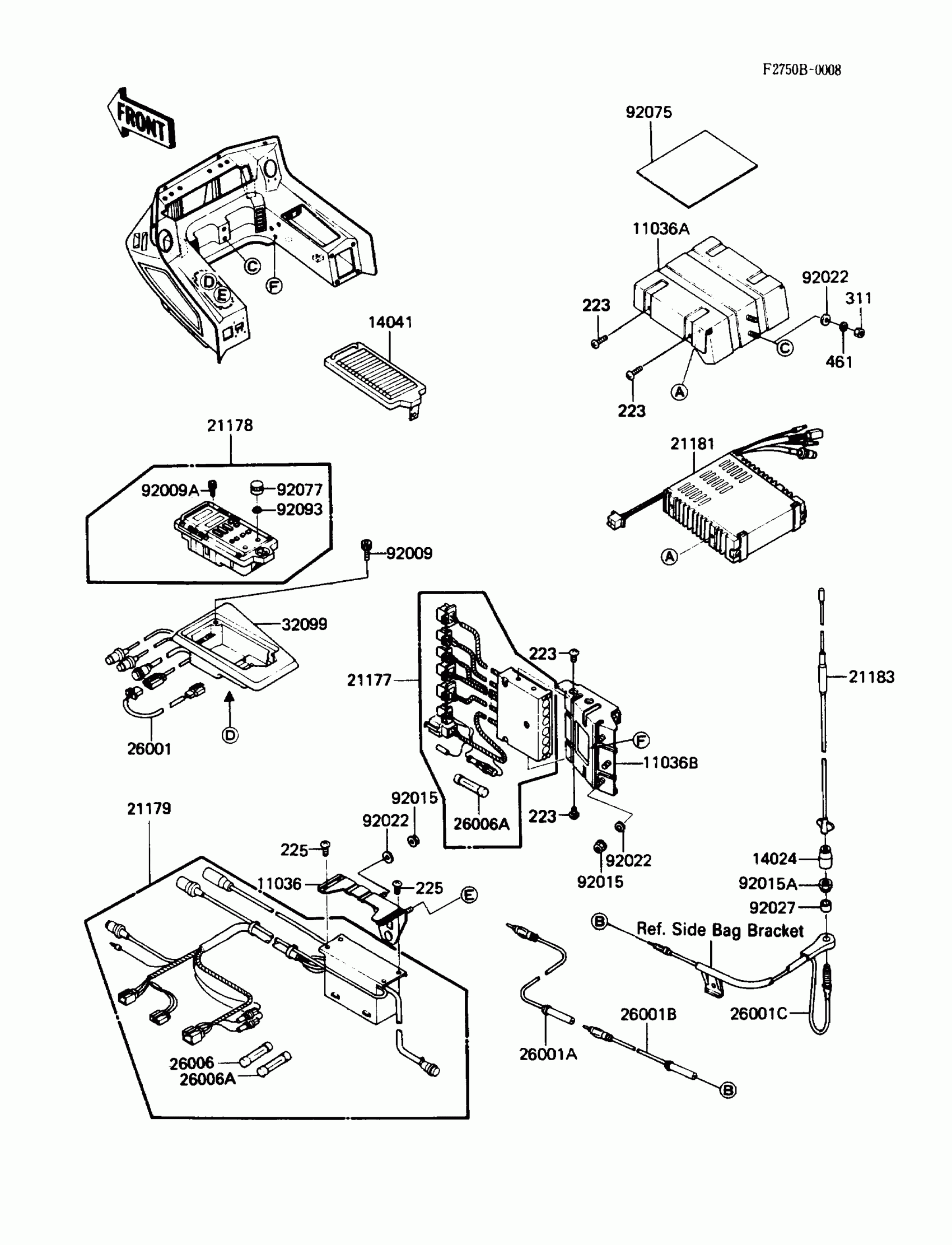

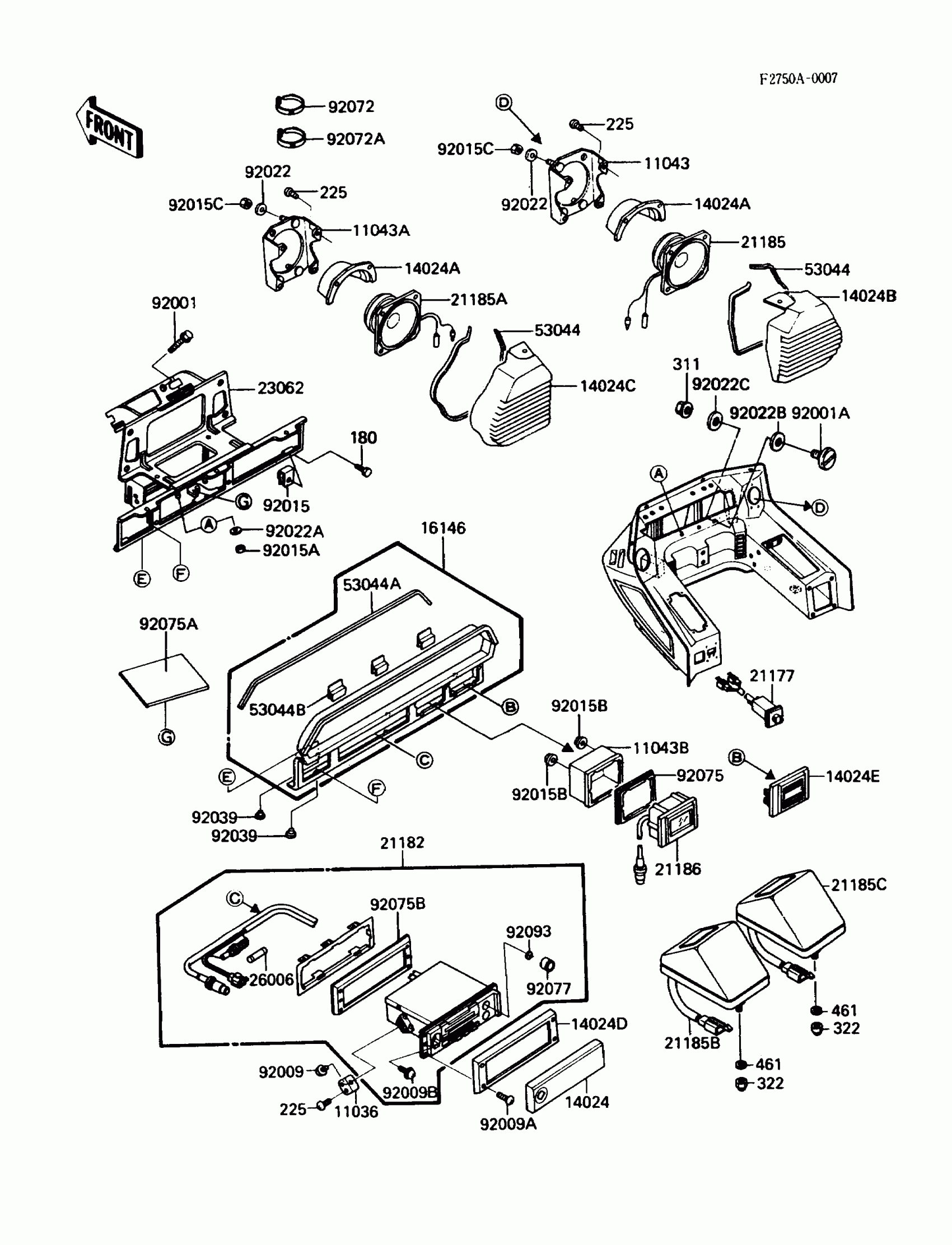

1988 Kawasaki Voyager Other Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11036

BRACKET-A,STOPPER

11036-1950

1
Out of stock

11036A

BRACKET-A,STOPPER

11036-1951

1
Out of stock

11043

BRACKET

11043-1253

1
Out of stock

11043A

BRACKET

11043-1254

1
Out of stock

11045

BRACKET,CRUISE RELAY

11045-1984

1
Out of stock

11045A

BRACKET,AUTO CRUISE

11045-1996

1
Out of stock

14024

COVER,DRIVE COMPUTER

14025-1641

1
Out of stock

21175

1

$524.62

In stock

21176

SENSOR,QUARTER

21176-1005

1

$360.51

In stock

27010

1

$228.55

In stock

27010A

SWITCH,TURN SIGNAL OPERATION

27010-1153

1
Out of stock

28011

1

$909.40

In stock

28011A

METER,COMPASS

28011-1038

1

$349.73

In stock

28011B

1

$330.19

In stock

49016

1

$14.02

In stock

53009

1

$40.07

In stock

92001

BOLT,STOPPER

92001-1815

1

$4.59

In stock

92009

SCREW,4X16,BLACK

92009-1158

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92022

1

$0.53

In stock

92022A

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92037

CLAMP,SENSOR LEAD

92037-1490

1

$6.32

In stock

92069

BULB,12V 3.4W,T10

92069-1007

1

$3.97

In stock

92069A

BULB,12V 1.4W

92069-1056

1
Out of stock

92069B

BULB,12V 1.7W,T10

92069-1059

1

$3.94

In stock

92071

GROMMET,SENSOR LEAD

92071-1058

1

$5.02

In stock

92075

DAMPER,COVER

92075-1460

1

$37.43

In stock

92081

SPRING,LH

92081-1546

1

$5.36

In stock

92081A

SPRING,RH

92081-1547

1

$9.22

In stock

130

BOLT-FLANGED,5X12

130B0512

1
Out of stock

223

SCREW-PAN-WS-CROS,5X20

223B0520

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X20

225B0620

1
Out of stock

235

SCREW-PAN-WP-CROS

235B0514

1
Out of stock

311

NUT-HEX,6MM,BLACK

311C0600

1
Out of stock

461

WASHER-SPRING,6MM,BLACK

461K0600

1
Out of stock
