1985 Yamaha V-MAX (VMX540J) Steering Gate Diagram

← All diagrams

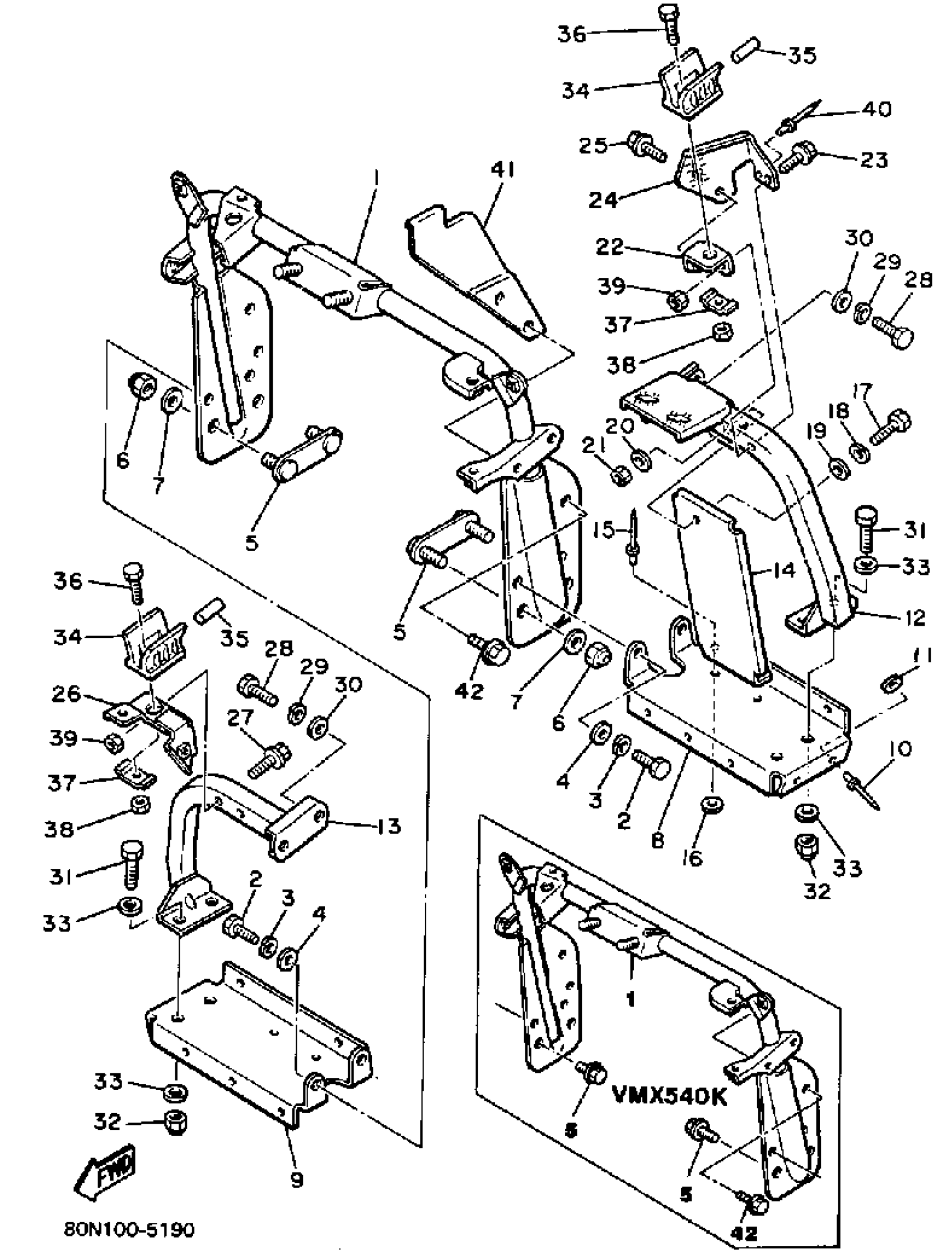

Find the part on the Steering Gate diagram for your 1985 Yamaha V-MAX (VMX540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha V-MAX (VMX540J) Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

8M6-23870-00-00

1
Out of stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

4

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

5

BRACKET 10

(8K4-23878-00-00)

1
Out of stock

5

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

6

NUT, NYLON

95717-08300-00

1

$2.57

In stock

7

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

8

BRACKET 3

8M6-23883-00-00

1
Out of stock

9

BRACKET 4

8M6-23884-00-00

1
Out of stock

10

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

11

WASHER, PLATE

90201-04027-00

1
Out of stock

12

BRACKET 5

8X6-23885-00-00

1
Out of stock

13

BRACKET 6

8M6-23886-00-00

1
Out of stock

14

BRACKET 1

8M6-23881-00-00

1
Out of stock

15

RIVET, BLIND (8K2)

90267-48079-00

—
Out of stock

16

WASHER, PLATE

90201-04027-00

1
Out of stock

17

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

19

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

20

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

20

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

21

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

22

BRACKET 7

8M6-23887-00-00

1
Out of stock

23

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

24

BRACKET 8 (8M6-23888-00)

8M6-23888-01-00

1
Out of stock

25

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

26

BRACKET 9

8M6-23889-01-00

1
Out of stock

27

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

28

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

29

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

30

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

32

NUT, NYLON

95707-06300-00

—

$3.20

In stock

33

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

34

CLAMP 3

878-77137-01-00

1
Out of stock

35

STOPPER

878-77188-00-00

1
Out of stock

36

BOLT,HEXAGON

97017-06008-00

—
Out of stock

37

STAY 1

8M6-77125-00-00

1
Out of stock

38

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

39

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

40

RIVET, BLIND (8K2)

90267-48079-00

—
Out of stock

41

BRACKET 13

(8U9-23898-00-00)

1
Out of stock

42

BOLT, FLANGE

95817-06012-00

—

$1.49

In stock
