1985 Yamaha V-MAX (VMX540J) Stabilizer KIT Diagram

← All diagrams

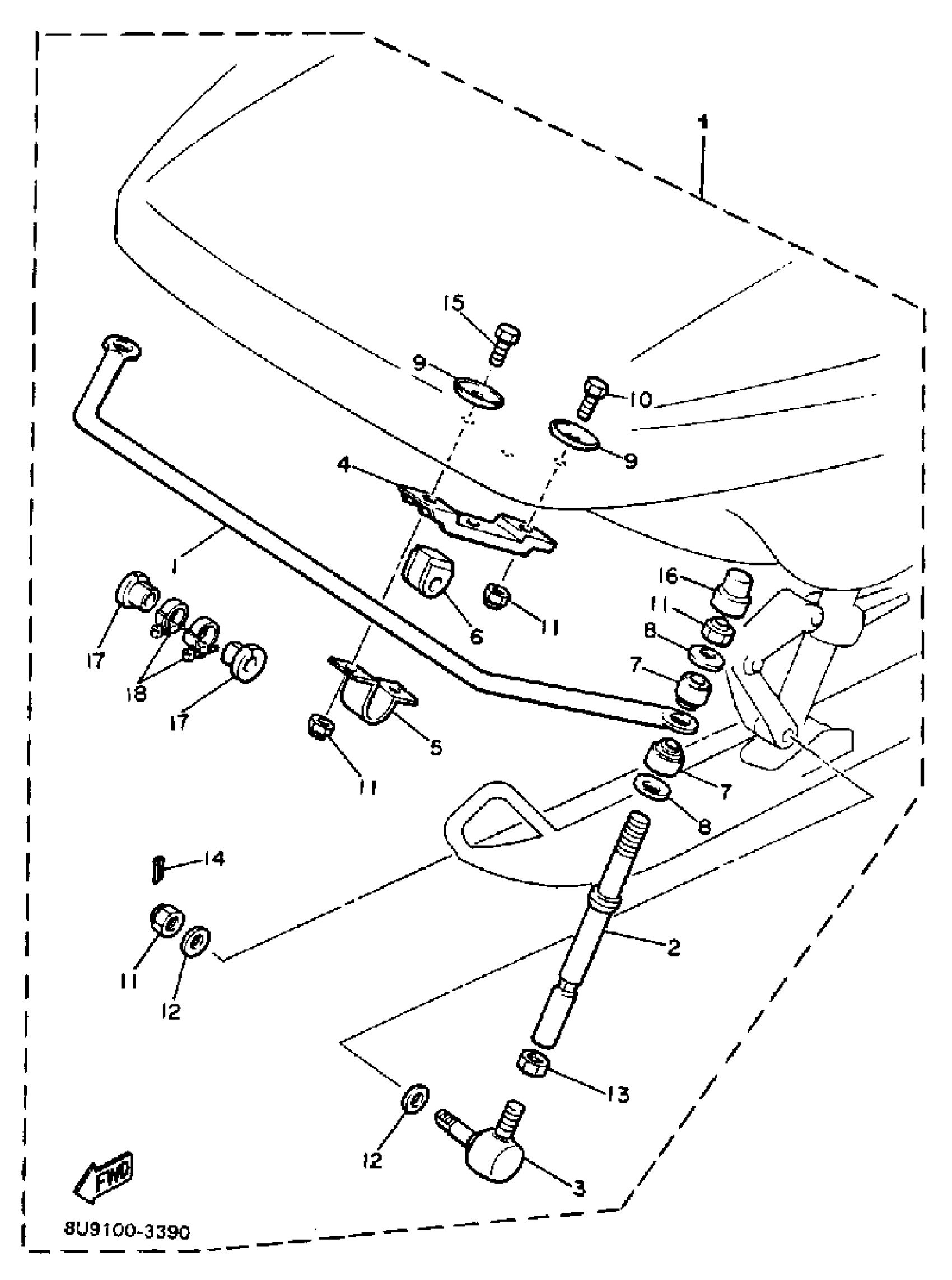

Find the part on the Stabilizer KIT diagram for your 1985 Yamaha V-MAX (VMX540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha V-MAX (VMX540J) Stabilizer KIT Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STABILIZER KIT-VMX

8U9-W0051-00-00

1
Out of stock

2

LINK, STABLZR FRONT

8L9-2386F-10-00

1
Out of stock

3

JOINT, UNIVERSAL 1

8L9-23841-10-00

1
Out of stock

4

. BRACKET 15

8M6-23896-10-00

1
Out of stock

5

COVER, STABLZR FRT

8M6-2386H-10-00

1
Out of stock

6

BUSH, STABLZR FRONT

8L9-2386G-10-00

1
Out of stock

7

CUSHION

8L9-2386J-10-00

1
Out of stock

8

RETAINER

8L9-2386K-10-00

1
Out of stock

9

WASHER

8L9-23779-10-00

1
Out of stock

10

BOLT, HEXAGON

(97306-10020-00)

1
Out of stock

11

NUT, NYLON

95707-10300-00

1

$6.68

In stock

12

WASHER, PLATE (8M6)

90201-115A7-00

1

$2.49

In stock

13

NUT (3WP1)

95317-10700-00

1

$6.17

In stock

14

PIN, COTTER

91490-20025-00

1

$1.31

In stock

15

BOLT, HEXAGON

97017-10030-00

—

$3.08

In stock

16

CAP 2

8L9-23742-10-00

1
Out of stock

17

BUSH, STABILIZER

8U7-2386N-10-00

1
Out of stock

18

HOSE CLAMP ASSY(4JT)

90450-28073-00

—
Out of stock
