1985 Yamaha V-MAX (VMX540J) Pump Drive - Gear Diagram

← All diagrams

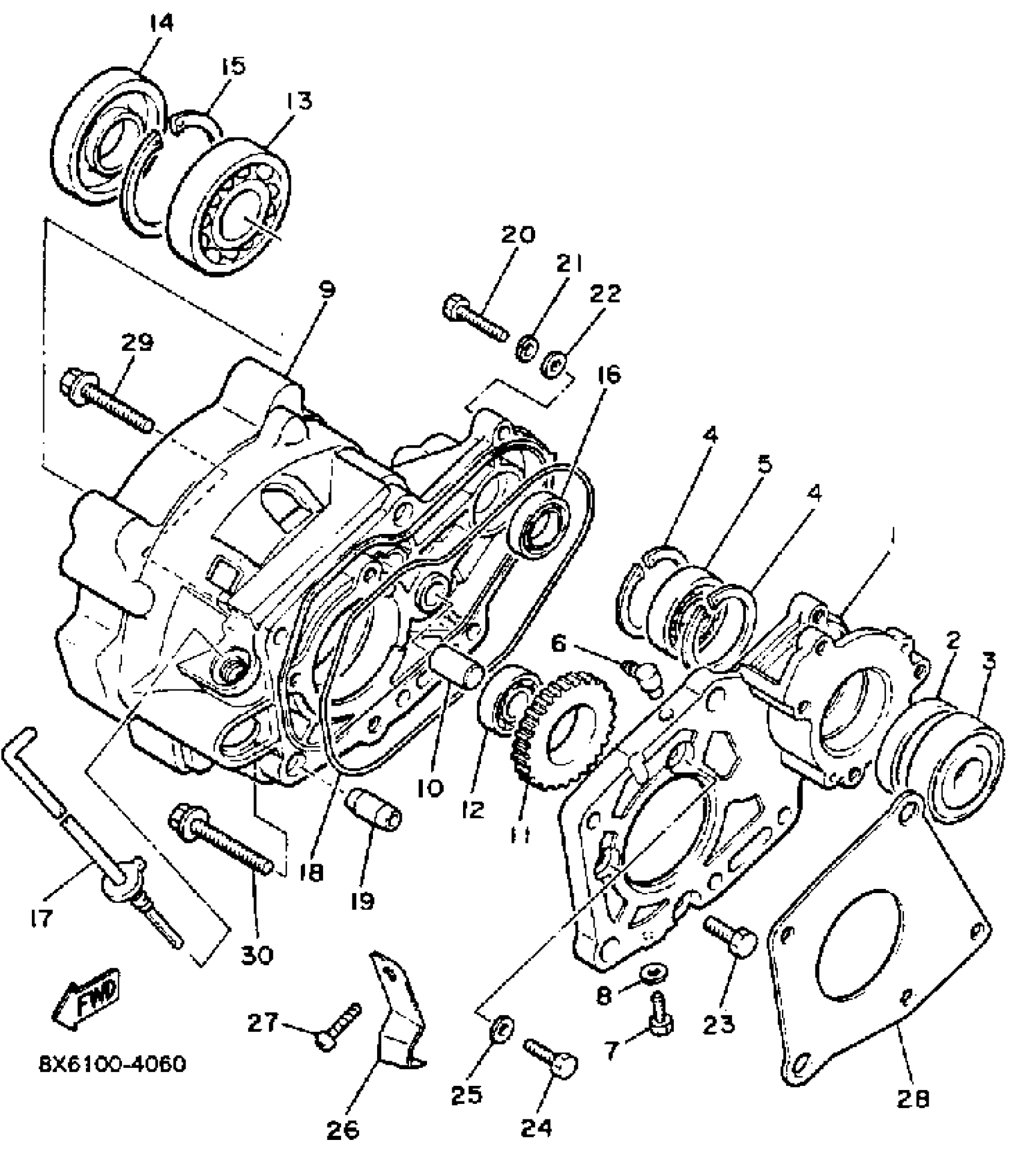

Find the part on the Pump Drive - Gear diagram for your 1985 Yamaha V-MAX (VMX540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha V-MAX (VMX540J) Pump Drive - Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, OIL PUMP

8X6-15416-00-00

1
Out of stock

2

OIL SEAL, S-TYPE

93101-25121-00

1
Out of stock

3

OIL SEAL, SW-TYPE

93103-25146-00

1
Out of stock

4

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

5

BEARING

93316-00404-00

—

$22.57

In stock

6

NOZZLE

353-13552-01-00

1
Out of stock

7

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

8

WASHER, PLATE (1L9)

90201-06630-00

1
Out of stock

9

COVER, OIL PUMP R

8U9-15426-01-00

1
Out of stock

10

SHAFT, IDLE GEAR

8M6-13342-00-00

1
Out of stock

11

GEAR, IDLE

8M6-13179-00-00

1
Out of stock

12

BEARING, CYLINDER.#16

93316-00101-00

1
Out of stock

13

BEARING (5X5)

93306-20627-00

1

$66.08

In stock

14

OIL SEAL, SW-TYPE

93103-30138-00

1
Out of stock

15

CIRCLIP(MF1)

99009-62500-00

1

$6.23

In stock

16

OIL SEAL (20X30X7-371)

93102-20108-00

—

$9.17

In stock

17

GAUGE, OIL

8U9-21792-02-00

1
Out of stock

18

O-RING

93211-44445-00

1
Out of stock

19

PIN, DOWEL

91800-13025-00

1
Out of stock

20

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

24

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

25

WASHER, SEAL (7G5)

90210-06006-00

—

$5.72

In stock

26

CLAMP 1

8X6-12491-00-00

1
Out of stock

27

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

28

GASKET, O/PMP CVR1

8M6-15456-01-00

1
Out of stock

29

BOLT, FLANGE

95814-08045-00

—

$3.95

In stock

30

BOLT, FLANGE

95817-08050-00

—

$3.15

In stock
