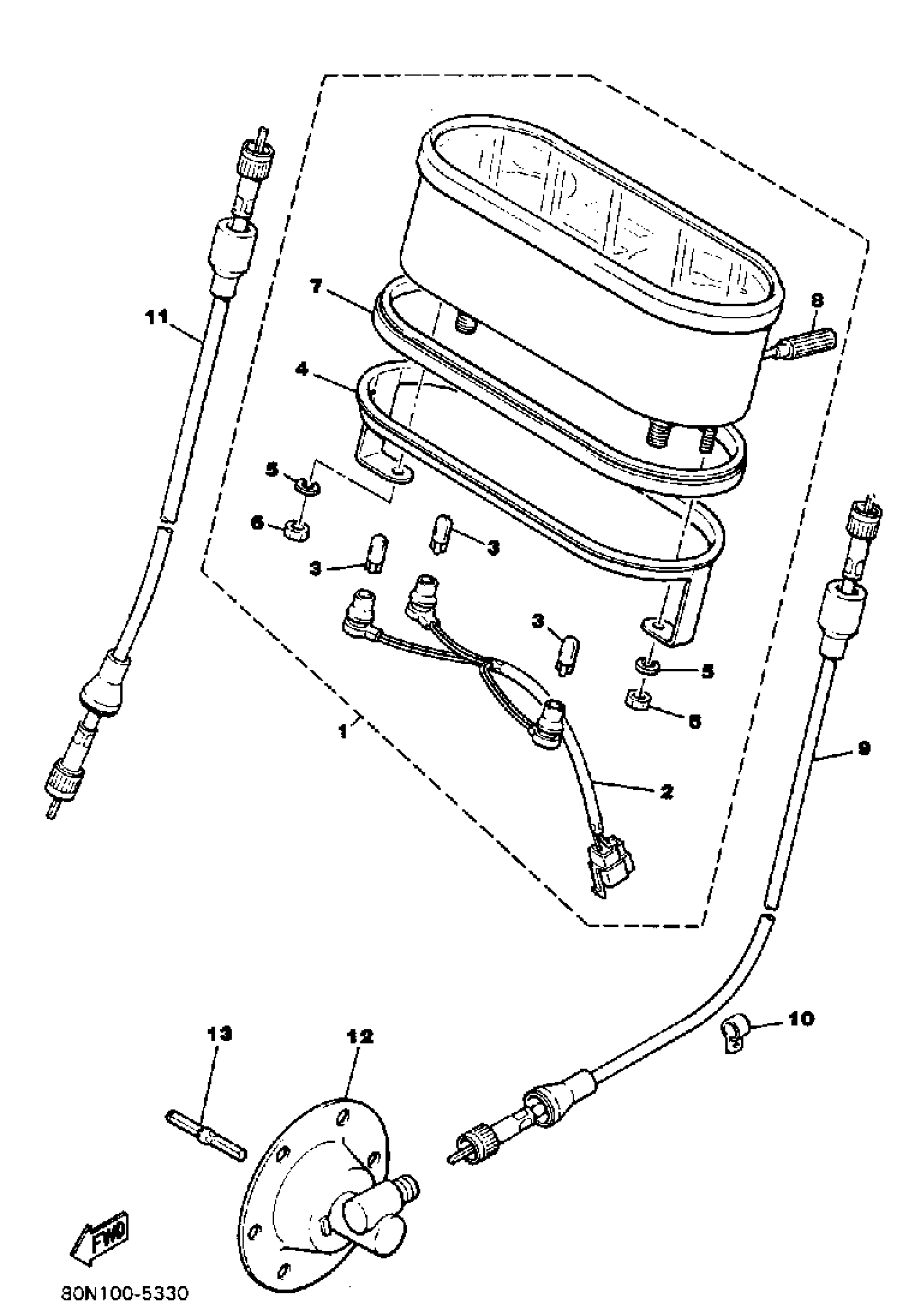

Find the part on the Meter diagram for your 1985 Yamaha V-MAX (VMX540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha V-MAX (VMX540J) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

81K-83500-40-00

1
Out of stock

1

SPEEDOMETER ASSEMBLY

81K-83500-40-00

1
Out of stock

2

. SOCKET, METER

8U9-83536-00-00

1
Out of stock

3

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

4

. BRACKET, METER

8K4-83519-01-00

1
Out of stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

. DAMPER

8K4-83513-00-00

1
Out of stock

8

. KNOB, TRIP METER

8L8-83578-00-00

1
Out of stock

9

SPEEDOMETER CABLE ASSEMBLY

8K4-83550-00-00

1
Out of stock

10

CLAMP (6A4)

90461-06M01-00

—

$5.32

In stock

11

SPEEDOMETER CABLE

839-83550-01-00

1
Out of stock

12

METER GEAR HOUSING COMP.

8L9-47700-00-00

—

$68.52

In stock

13

JOINT

8K4-47715-00-00

1

$4.60

In stock
