1985 Yamaha V-MAX (VMX540J) Instrument Panel Diagram

← All diagrams

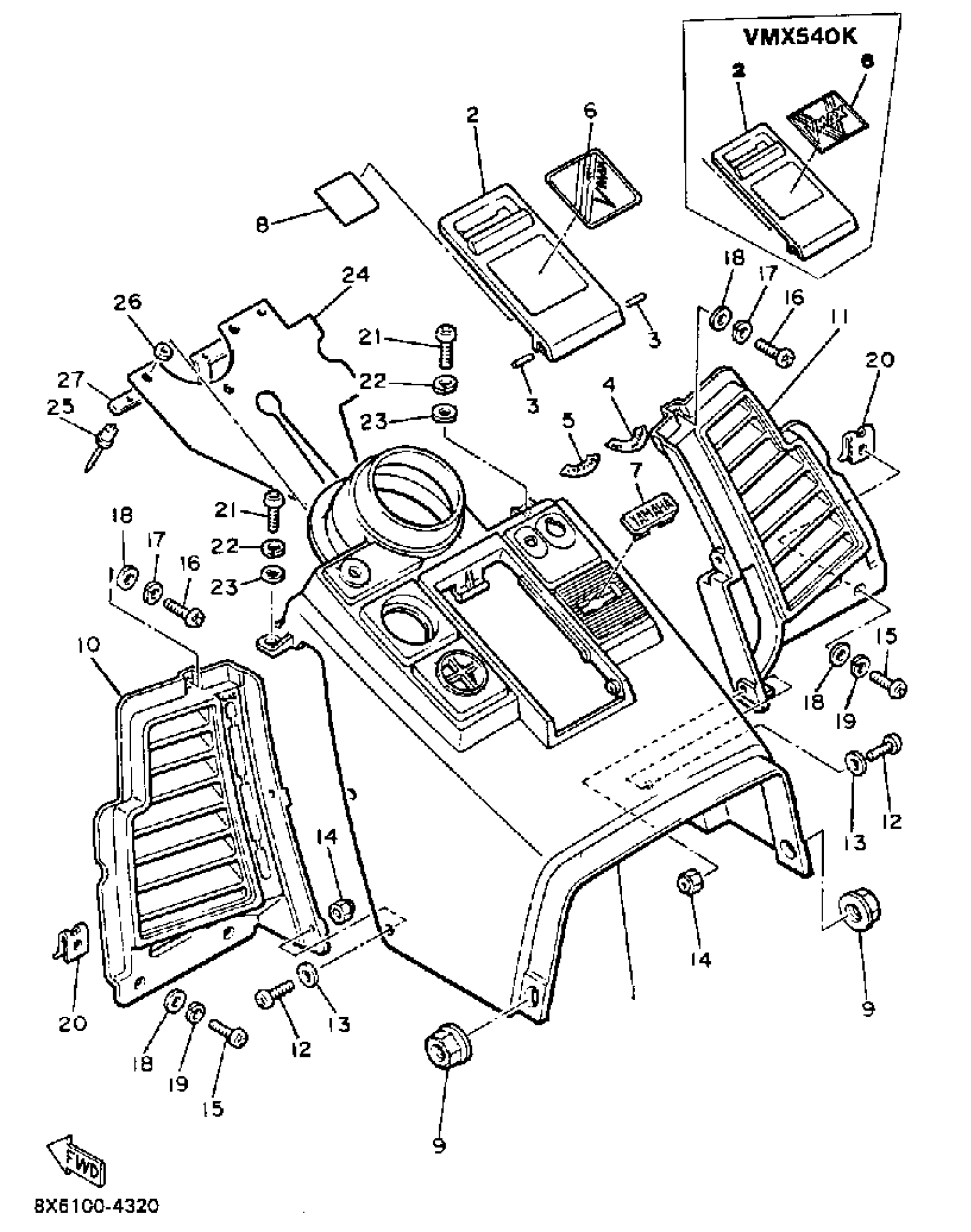

Find the part on the Instrument Panel diagram for your 1985 Yamaha V-MAX (VMX540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha V-MAX (VMX540J) Instrument Panel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PANEL, INSTRUMENT (J)

80N-77711-00-00

1
Out of stock

1

PANEL, INSTRUMENT

81K-77711-01-00

1
Out of stock

2

PANEL, INSTRUMENT

8M6-77712-00-00

1
Out of stock

3

PIN, HINGE

8K4-77477-00-00

1
Out of stock

4

INDICATOR 1

8U9-77741-00-00

—

$19.49

In stock

5

INDICATOR 2

8U9-77742-00-00

—

$13.05

In stock

6

EMBLEM 16 (J)

80N-77372-00-00

1
Out of stock

6

ORMNT, INSTR PNL 1 (K)

81K-77715-00-00

1
Out of stock

7

EMBLEM 1

81K-77725-00-00

1
Out of stock

7

EMBLEM 1

8M6-77725-00-00

1
Out of stock

8

INDICATOR 4

8K2-77744-01-00

1
Out of stock

9

NUT, SPEC''L SHAPE

90179-16251-00

1
Out of stock

10

LOUVER 1

8M6-77131-00-00

1
Out of stock

11

LOUVER 2

8M6-77132-00-00

1
Out of stock

12

SCREW, PAN

98517-05012-00

1

$3.91

In stock

13

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

14

NUT, NYLON

95707-05300-00

—

$2.74

In stock

15

SCREW, TAPPING

90167-05007-00

1
Out of stock

16

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

17

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

18

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

19

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

20

NUT, SPRING (2E9)

90183-05013-00

—

$7.23

In stock

21

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

22

WASHER, SPRING

92907-06100-00

—
Out of stock

23

WASHER, PLATE (4L0)

90201-062A8-00

—

$6.23

In stock

24

SHIELD 1

8U9-77731-00-00

1
Out of stock

25

RIVET, BLIND (8K1)

90267-40076-00

—
Out of stock

26

WASHER, PLATE

90201-042E0-00

—

$6.38

In stock

27

BRACKET 1

8X6-77721-00-00

1
Out of stock
