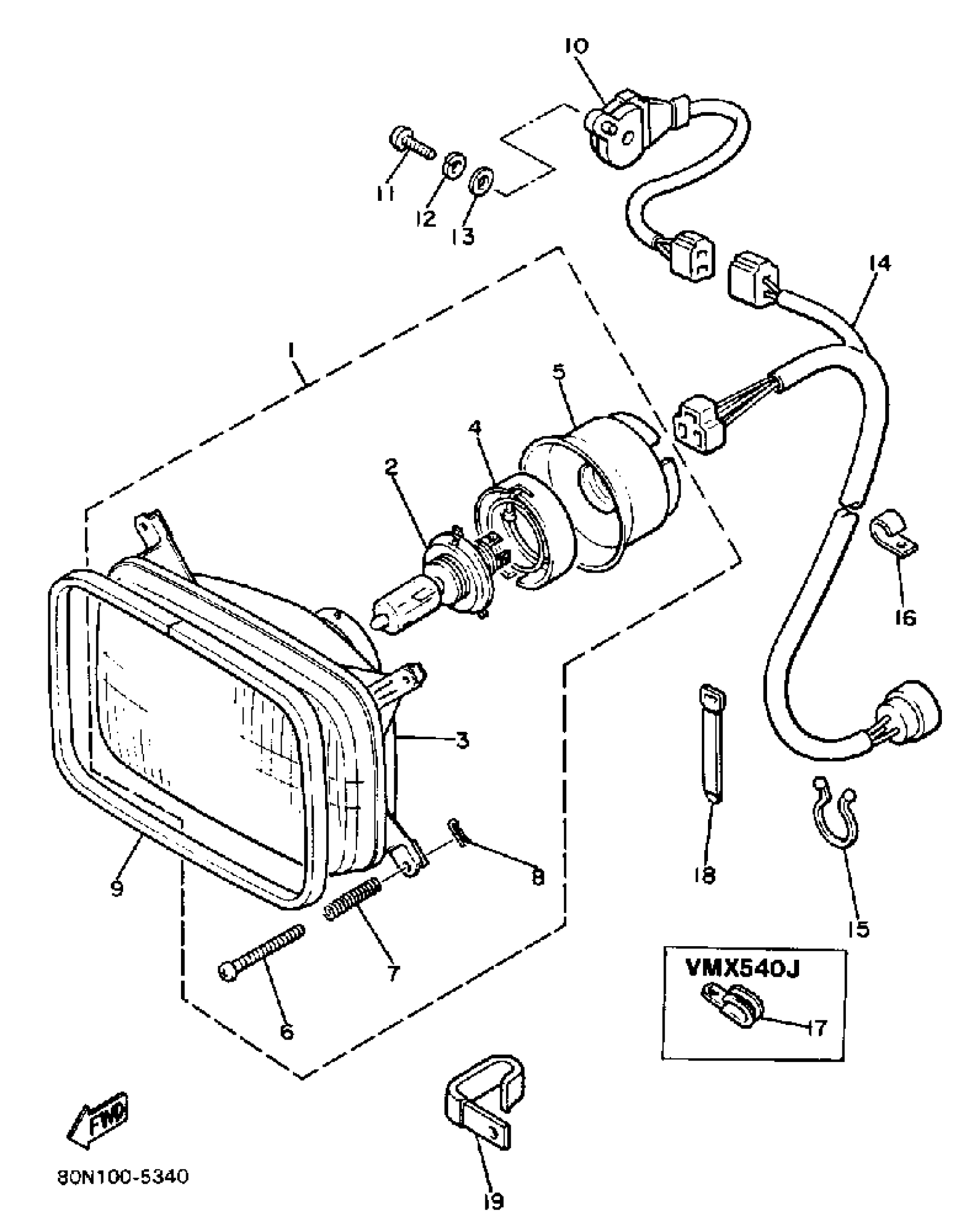

Find the part on the Headlight diagram for your 1985 Yamaha V-MAX (VMX540J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Yamaha V-MAX (VMX540J) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLIGHT UNIT ASSY

8M6-84310-00-00

1
Out of stock

2

BULB, HEADLIGHT

8V0-84314-10-00

1
Out of stock

3

LENS ASSY

8A7-84320-00-00

—

$49.02

In stock

4

HOLDER, SOCKET

8A7-84312-00-00

1
Out of stock

5

COVER, SOCKET

8A7-84397-01-00

—

$20.35

In stock

6

SCREW, ADJUSTING

8M6-84331-00-00

1

$14.80

In stock

7

SPRING, ADJUST SCREW

8A5-84332-00-00

1

$7.40

In stock

8

CLIP

8K4-84374-00-00

1

$6.82

In stock

9

DAMPER, HEADLIGHT 1

8T7-84366-00-00

1
Out of stock

10

LIGHT SWITCH ASSEMBLY (8M6-82520-00)

8M6-82520-01-00

1
Out of stock

11

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

14

CORD, HEADLIGHT

8X6-84359-00-00

1
Out of stock

15

CLAMP (3Y2)

90464-16039-00

1
Out of stock

16

CLAMP

90465-06013-00

1
Out of stock

17

CLAMP

(90465-06020-00)

1
Out of stock

18

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

19

CLAMP

90465-08028-00

1

$4.62

In stock
