1983 Yamaha VMX540G Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

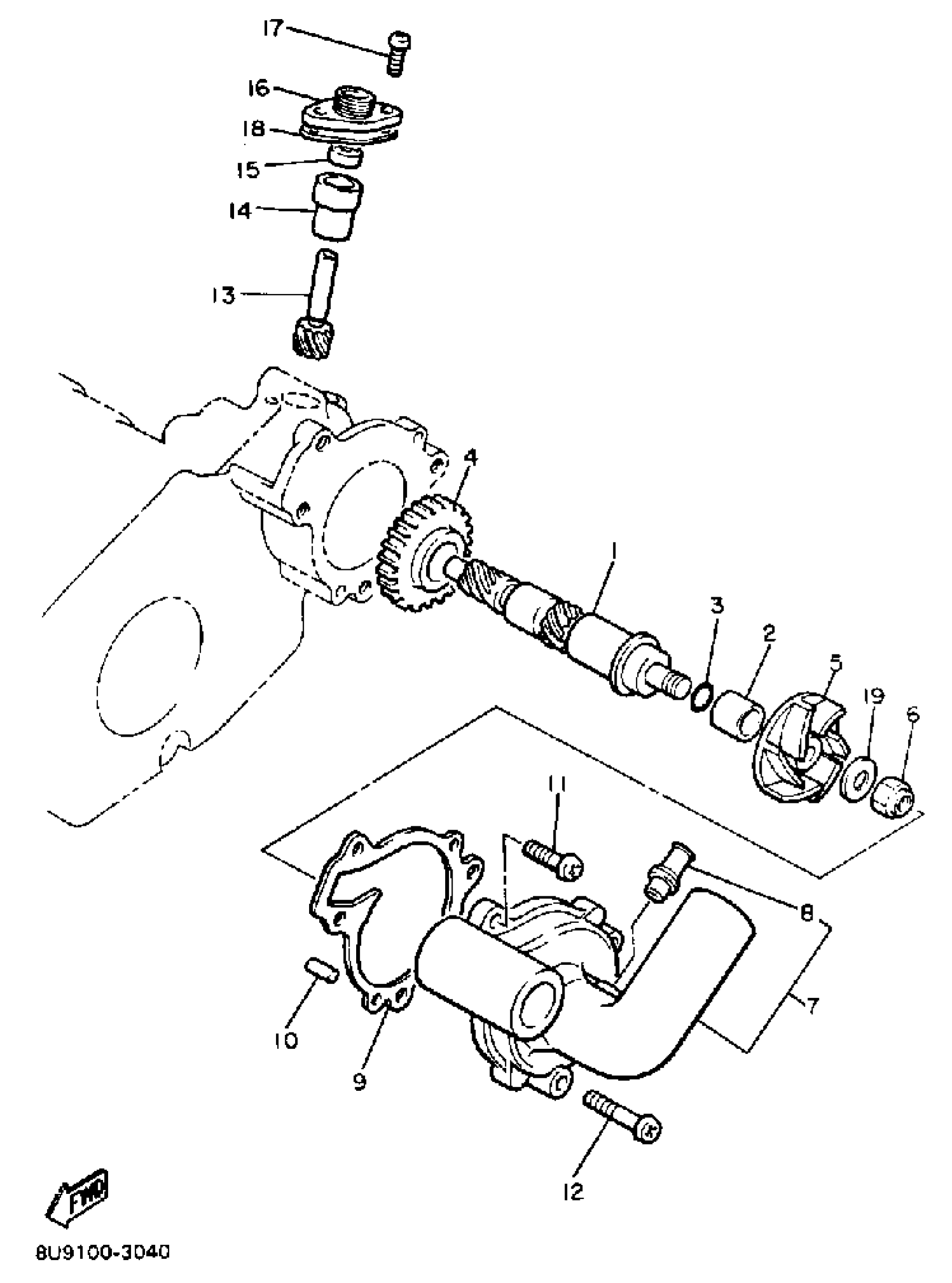

1983 Yamaha VMX540G Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, IMPELLER (8M6-12458-00)

8M6-12458-01-00

1
Out of stock

2

COLLAR

90387-102G3-00

1
Out of stock

3

O-RING (371)

93210-10197-00

1
Out of stock

4

GEAR, DRIVE (8M6-13188-00)

8M6-13188-01-00

1
Out of stock

5

IMPELLER, WATER PMP

8A7-12451-00-00

1
Out of stock

6

NUT, NYLON

95717-08300-00

1

$2.57

In stock

7

COVER, HOUSING

8M6-W1241-00-00

1
Out of stock

8

JOINT

8A7-12499-00-00

1
Out of stock

9

GASKET,HOUSING CVR

8M6-12427-02-00

1
Out of stock

10

PIN,DOWEL (603)

93604-10011-00

1

$5.10

In stock

11

SCREW, PAN

98507-06014-00

1

$6.18

In stock

12

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

13

GEAR, DRIVEN

8M6-17841-00-00

1
Out of stock

14

BUSH, DRVN GR OUTER

8A7-17843-00-00

1
Out of stock

15

OIL SEAL (6X12X4-821)

93104-06033-00

1

$6.49

In stock

16

UNAVAILABLE IN PRICE BOOK

821-17819-00-

1
Out of stock

17

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

18

GASKET

821-17818-02-00

—

$5.66

In stock

19

WASHER (8A7)

90201-08452-00

—

$4.06

In stock
