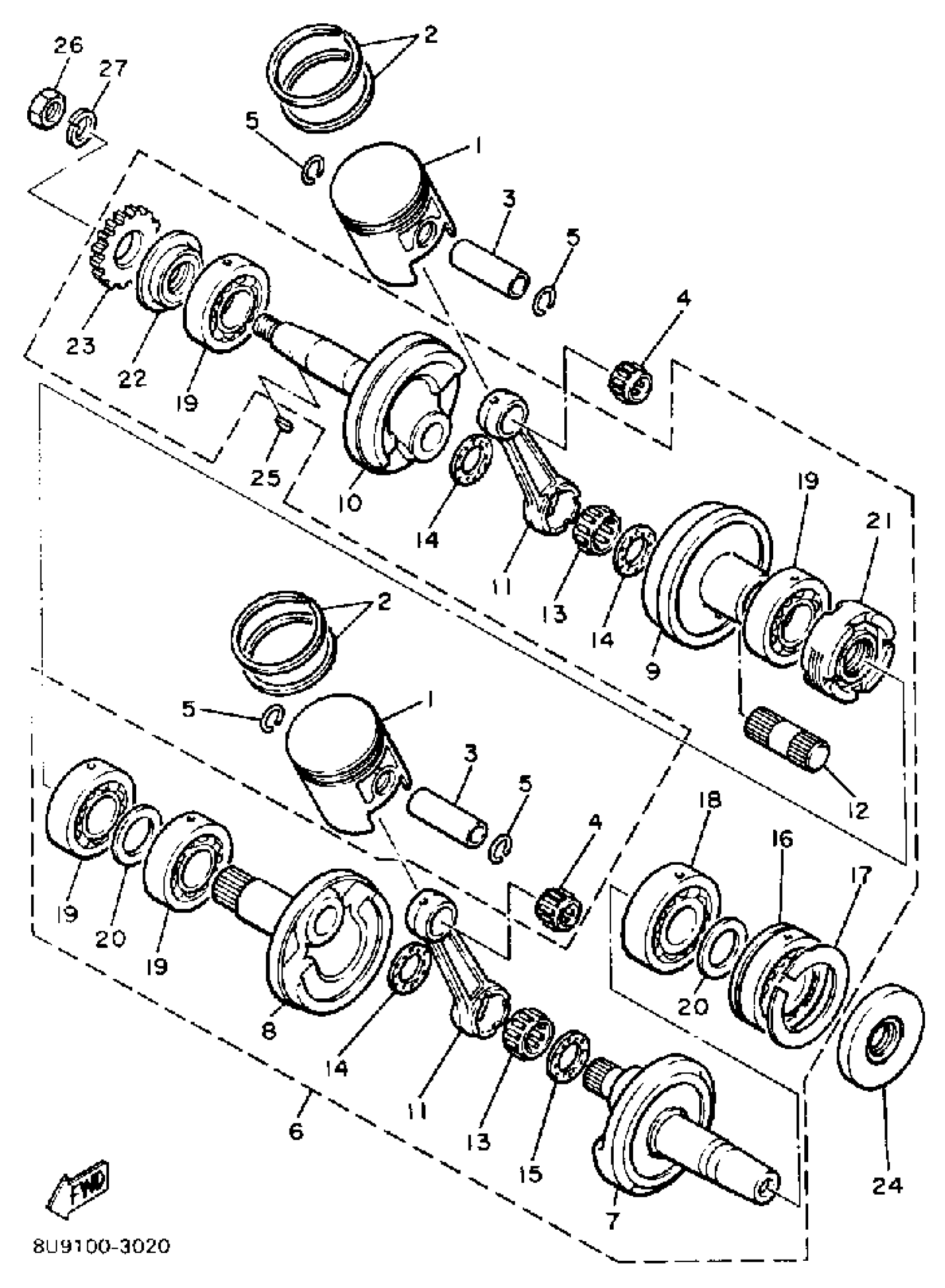

Find the part on the Crankshaft-Piston diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha VMX540G Crankshaft-Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON STD

8U9-11631-01-94

1
Out of stock

2

PISTON RING SET

8U9-11601-00-00

1
Out of stock

3

PIN, PISTON

8J0-11633-00-00

1

$32.82

In stock

4

BRG,CYL-CAL ROLLER 25G KY

93310-320G0-00

1

$40.32

In stock

5

CIRCLIP (8H0)

93450-21053-00

1

$3.43

In stock

6

CRANKSHAFT ASSEMBLY

8U9-11400-00-00

1
Out of stock

7

. CRANK 1

8U9-11412-00-00

1
Out of stock

8

. CRANK 2

8U9-11422-00-00

1
Out of stock

9

. CRANK 3

8U9-11432-00-00

1
Out of stock

10

. CRANK 4

8U9-11442-00-00

1
Out of stock

11

. ROD, CONNECTING

8U9-11651-00-00

1
Out of stock

12

. PIN, CRANK 1

8R9-11681-00-00

1
Out of stock

13

BEARING,CYL.(8AB)

93310-525S1-00

1
Out of stock

14

WASHER(8AY)

90209-25325-00

1

$17.08

In stock

15

WASHER, CRANK PIN

8AY-11685-00-00

1
Out of stock

16

BEARING

93306-30718-00

1
Out of stock

17

CIRCLIP (834)

93440-80023-00

—
Out of stock

18

BEARING

93306-30718-00

1
Out of stock

19

BEARING (8U9)

93306-20712-00

—

$69.76

In stock

20

WASHER, PLATE (8R9)

90201-357E4-00

—

$2.95

In stock

21

. SEAL, LABYRINTH 1

8U9-11515-00-00

1
Out of stock

22

. OIL SEAL, SW-TYPE

93103-35139-00

1
Out of stock

23

. GEAR, PUMP DRIVE

8U9-13178-00-00

1
Out of stock

24

OIL SEAL(8AV)

93103-35176-00

—

$43.54

In stock

25

KEY, WOODRUFF (8R9)

90280-05033-00

—
Out of stock

26

NUT

90170-16425-00

—
Out of stock

27

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
