1983 Yamaha VMX540G Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

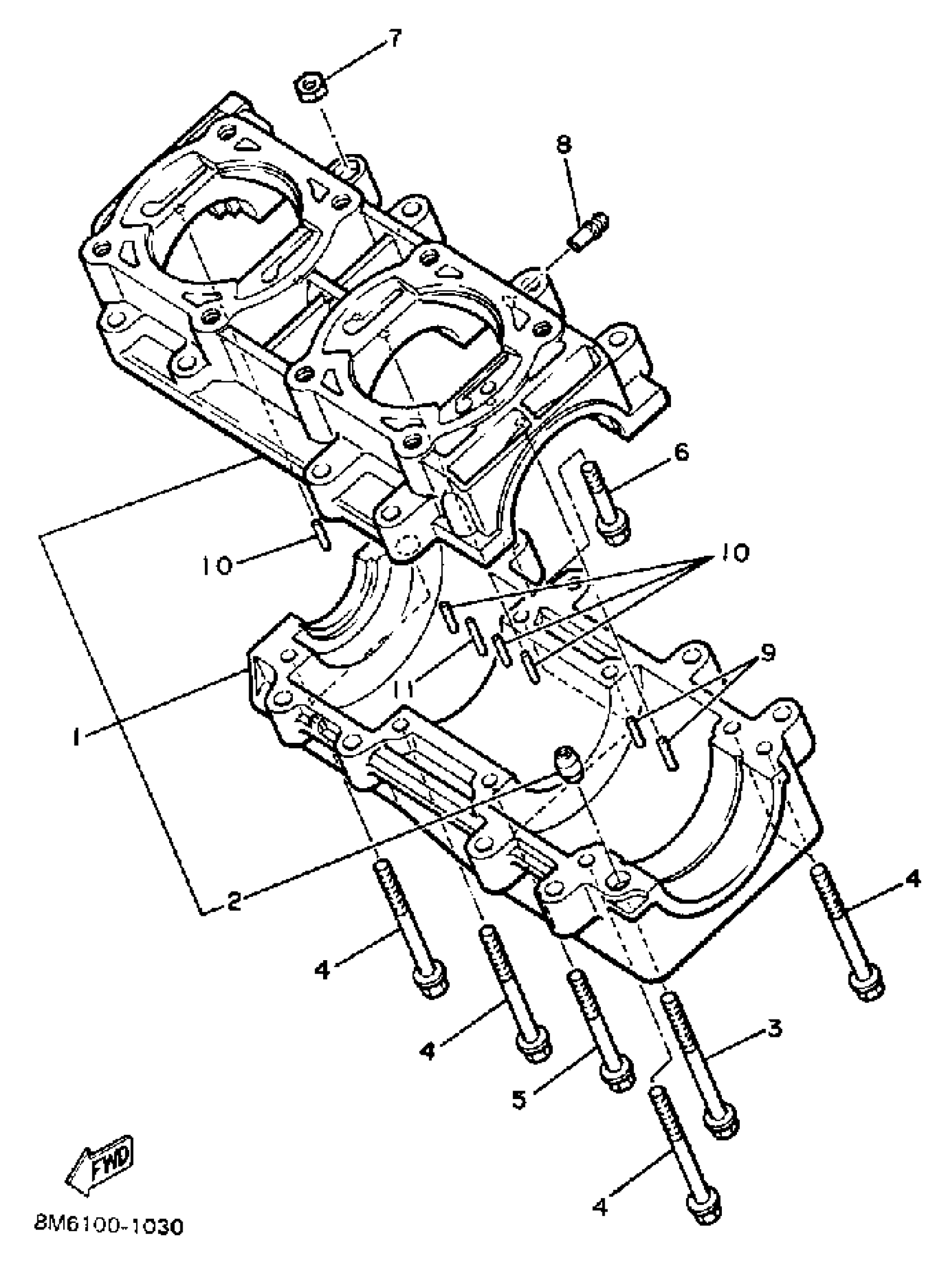

1983 Yamaha VMX540G Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

8U9-15100-00-00

1
Out of stock

2

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

3

BOLT, FLANGE(8BT)

95817-08095-00

1
Out of stock

4

BOLT, FLANGE(8BN)

95817-08085-00

1
Out of stock

5

BOLT, FLANGE

95817-08075-00

1

$3.37

In stock

6

BOLT, FLANGE

95814-08045-00

1

$3.95

In stock

7

NUT(6L2)

95333-08600-00

1

$3.20

In stock

8

JOINT, BREATHER

J38-11116-00-00

1

$2.77

In stock

9

PIN, DOWEL (8H1)

93604-07141-00

1

$1.35

In stock

10

PIN (2H7)

93603-10049-00

—
Out of stock

11

PIN, DOWEL (5X4)

93603-14179-00

—
Out of stock
