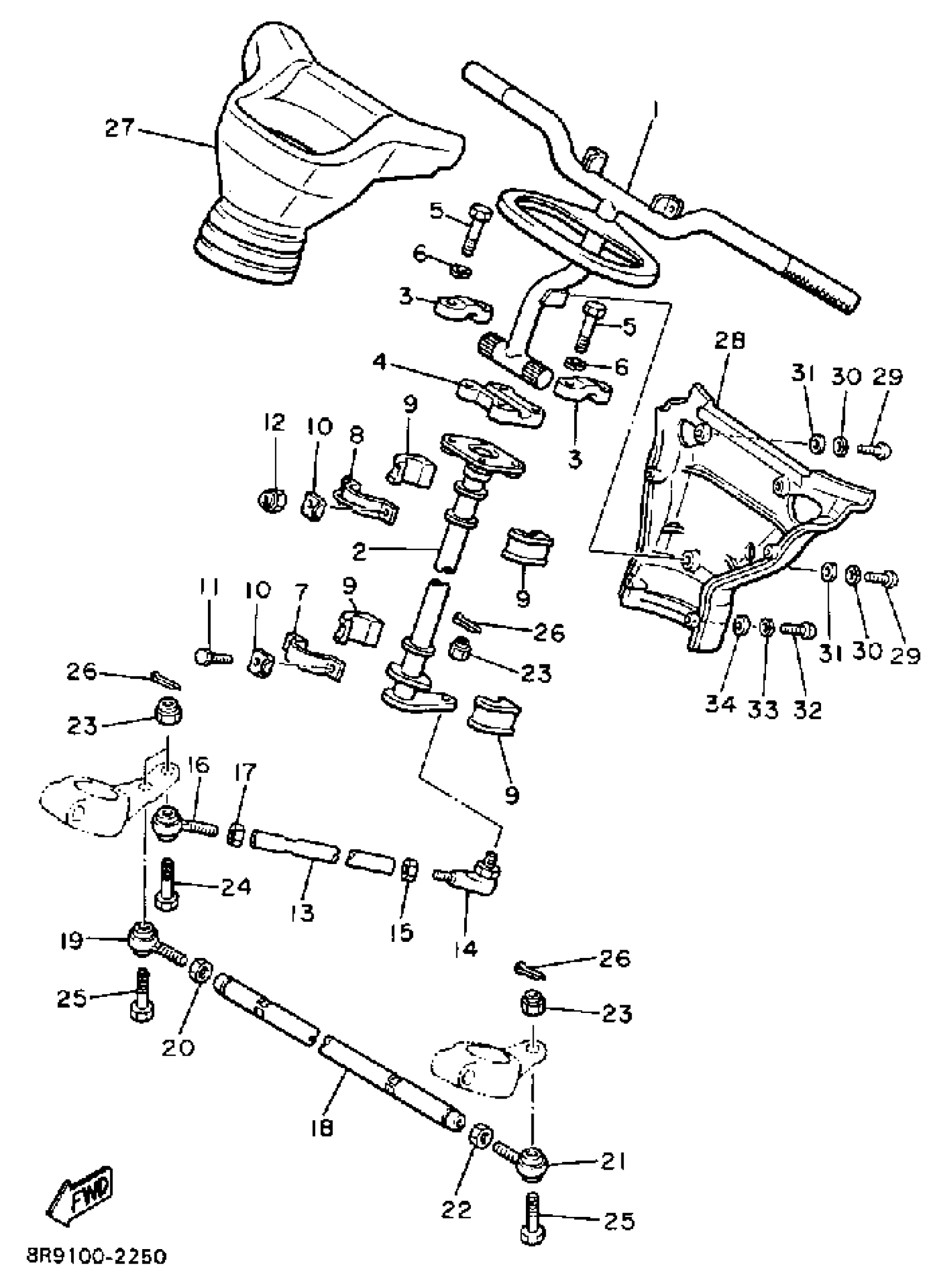

Find the part on the Steering diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha VMX540G Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

8U9-23811-00-00

1
Out of stock

2

COLUMN, STEERING 2

8M6-23813-00-00

1
Out of stock

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

1

$22.38

In stock

4

HOLDER HANDLE UPR

164-23441-01-38

1
Out of stock

5

BOLT, HEXAGON

97013-08055-00

1

$3.25

In stock

6

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

7

BRACKET, STEERING LOWER

84M-23868-00-00

—

$32.05

In stock

8

HOLDER, BEARING

84M-23872-00-00

—

$16.78

In stock

9

BEARING, STEERING

8F3-23812-00-00

1

$9.89

In stock

10

WASHER, LOCK 1

8AC-23894-01-00

1

$3.62

In stock

11

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

12

NUT, NYLON

95717-08300-00

1

$2.57

In stock

13

ROD,STEERING RELAY

85L-23821-00-00

1
Out of stock

14

JOINT, UNIVERSAL 1

86X-23841-00-00

1

$51.36

In stock

15

NUT (682)

95380-10700-00

1

$5.78

In stock

16

JOINT, UNIVERSAL 3

87S-23847-01-00

—

$44.71

In stock

17

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

18

ROD, TIE

8M6-23831-00-00

1
Out of stock

19

JOINT, UNIVERSAL 3

87S-23847-01-00

—

$44.71

In stock

20

NUT, HEXAGON (8A5)

90170-10186-00

—

$7.60

In stock

21

JOINT, UNIVERSAL 2

87S-23845-01-00

—

$45.86

In stock

22

NUT (682)

95380-10700-00

1

$5.78

In stock

23

NUT, NYLON

95707-10300-00

—

$6.68

In stock

24

BOLT, WITH HOLE

90102-10031-00

—

$15.65

In stock

25

BOLT, PIN HOLE (8M6)

90102-10044-00

—

$12.18

In stock

26

PIN, COTTER

91490-20025-00

—

$1.31

In stock

27

PAD, STEERING

8L8-23815-01-00

1
Out of stock

28

PAD KIT (8L8-23817-01)

99999-01429-00

1
Out of stock

29

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

30

WASHER(3SX)

92907-05100-00

—

$6.18

In stock

31

WASHER, PLATE 8067717800

90201-05029-00

—

$5.12

In stock

32

SCREW, PAN HEAD

98517-04012-00

—

$3.28

In stock

33

WASHER(6TA)

92907-04100-00

—

$5.98

In stock

34

WASHER(JF2)

92907-04600-00

—

$1.23

In stock
