1983 Yamaha VMX540G Steering Gate Diagram

← All diagrams

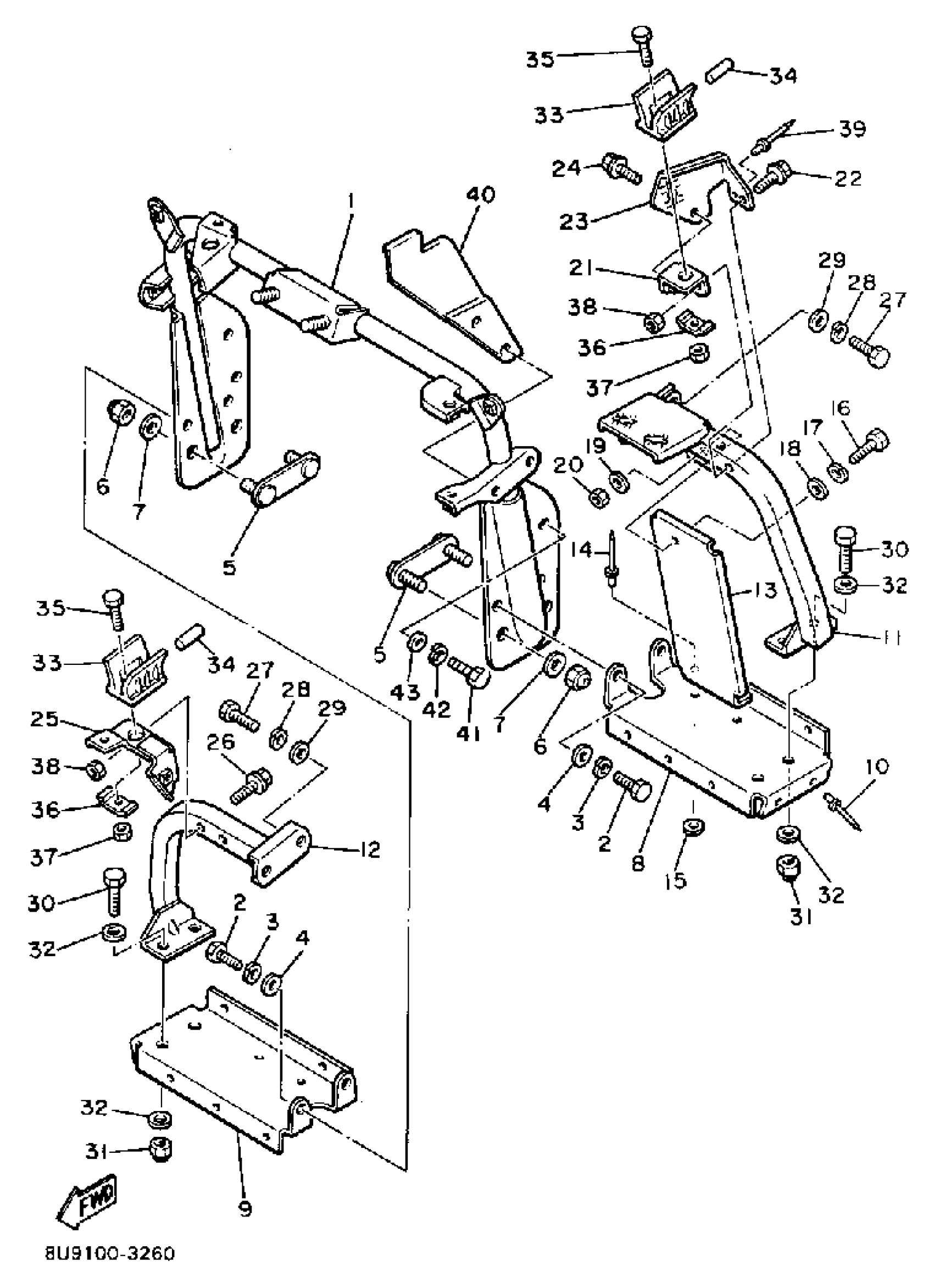

Find the part on the Steering Gate diagram for your 1983 Yamaha VMX540G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha VMX540G Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

8M6-23870-00-00

1
Out of stock

2

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

3

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

4

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

5

BRACKET 10

(8K4-23878-00-00)

1
Out of stock

6

NUT, NYLON

95717-08300-00

1

$2.57

In stock

7

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

8

BRACKET 3

8M6-23883-00-00

1
Out of stock

9

BRACKET 4

8M6-23884-00-00

1
Out of stock

10

RIVET, BLIND (8H4)

90267-48053-00

1

$2.31

In stock

11

BRACKET 5

(8R9-23885-00-00)

1
Out of stock

12

BRACKET 6

8M6-23886-00-00

1
Out of stock

13

BRACKET 1

8M6-23881-00-00

1
Out of stock

14

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

15

WASHER, PLATE

90201-04027-00

1
Out of stock

16

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

19

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

20

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

21

BRACKET 7

8M6-23887-00-00

1
Out of stock

22

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

23

BRACKET 8 (8M6-23888-00)

8M6-23888-01-00

1
Out of stock

24

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

25

BRACKET 9

8M6-23889-01-00

1
Out of stock

26

BOLT, FLANGE

95817-06030-00

—

$3.91

In stock

27

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

30

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

31

NUT, NYLON

95707-06300-00

—

$3.20

In stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

33

CLAMP 3

878-77137-01-00

1
Out of stock

34

STOPPER

878-77188-00-00

1
Out of stock

35

BOLT,HEXAGON

97017-06008-00

—
Out of stock

36

STAY 1

8M6-77125-00-00

1
Out of stock

37

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

38

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

39

RIVET, BLIND (8K2)

90267-48079-00

1
Out of stock

40

BRACKET 13

(8U9-23898-00-00)

1
Out of stock

41

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

42

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

43

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock
