2016 Yamaha V-Max (VMX17GL) Stand Footrest Diagram

← All diagrams

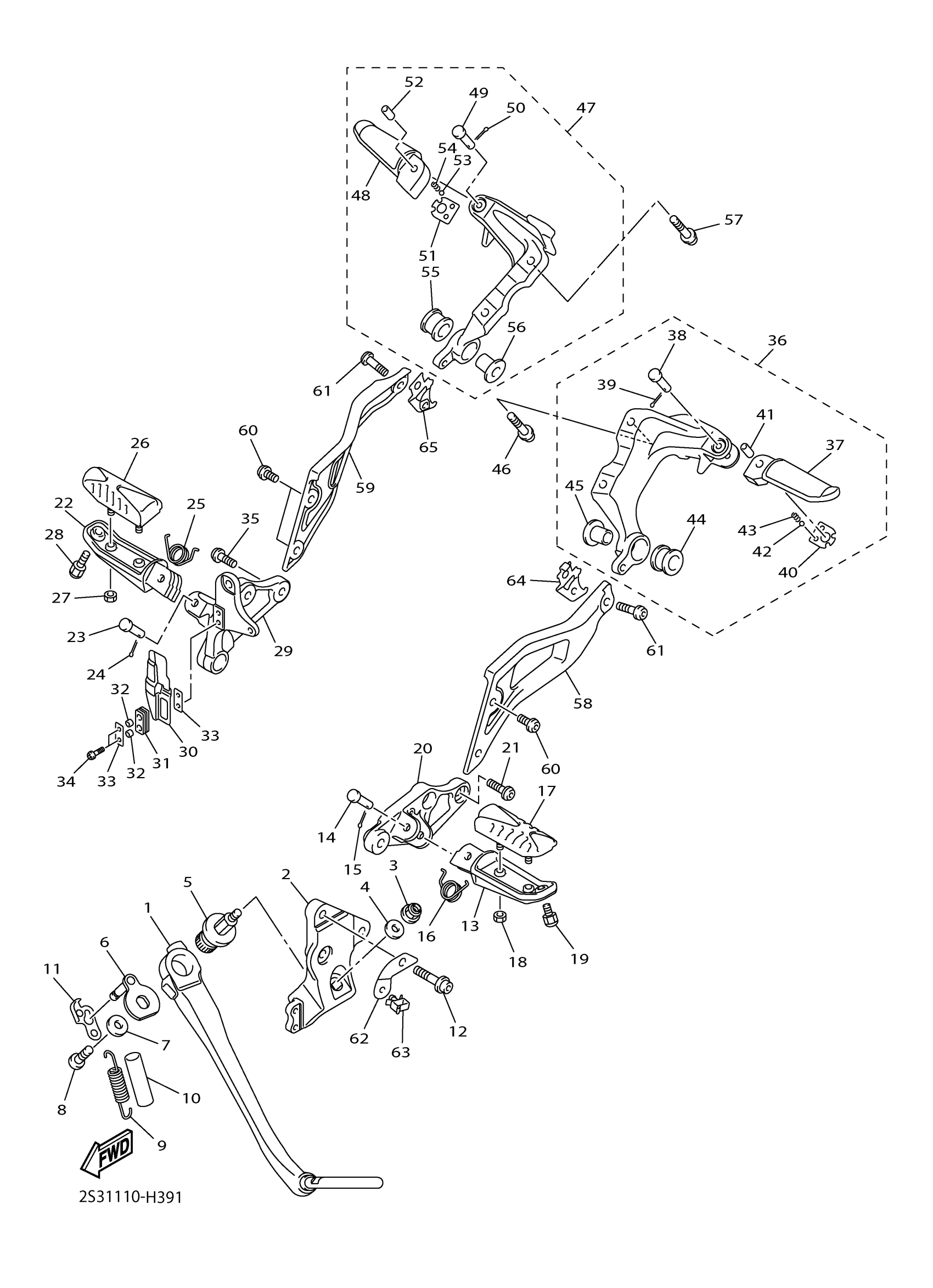

Find the part on the Stand Footrest diagram for your 2016 Yamaha V-Max (VMX17GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha V-Max (VMX17GL) Stand Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, SIDE

2S3-27311-00-00

—
Out of stock

2

BRACKET, SIDE STAND

2S3-27321-00-00

—
Out of stock

3

NUT, SELF-LOCKING

90185-10170-00

1
Out of stock

4

WASHER, PLATE(47X)

90201-101J1-00

1
Out of stock

5

GUIDE, SIDE STAND

2S3-27351-00-00

—
Out of stock

6

HOOK, SIDE STAND

2S3-27352-00-00

—
Out of stock

7

WASHER, PLATE(8AT)

90201-081R9-00

1
Out of stock

8

BOLT

90111-08029-00

1
Out of stock

9

SPRING, MAIN STAND

2S3-27116-00-00

—
Out of stock

10

HOSE (L60)

90445-197J2-00

1
Out of stock

11

LINK, SIDE STAND

2S3-27315-00-00

—
Out of stock

12

BOLT, HEXAGON SOCKET HEAD

90110-08090-00

—
Out of stock

13

FOOTREST

2S3-27451-00-00

—
Out of stock

14

PIN, CLEVIS

91702-08040-00

1
Out of stock

15

PIN, COTTER

91490-25020-00

1
Out of stock

16

SPRING, TORSION (22N)

90508-20572-00

—
Out of stock

17

COVER, FOOTREST

2S3-27413-00-00

—
Out of stock

18

NUT, U

95604-05100-00

—
Out of stock

19

BOLT

2S3-27317-10-00

—
Out of stock

20

BRACKET 2

2S3-27442-01-00

—
Out of stock

21

BOLT

90109-085G6-00

—
Out of stock

22

FOOTREST

2S3-27461-00-00

—
Out of stock

23

PIN, CLEVIS

91702-08040-00

1
Out of stock

24

PIN, COTTER

91490-25020-00

1
Out of stock

25

SPRING, TORSION (22N)

90508-20572-00

—
Out of stock

26

COVER, FOOTREST

2S3-27413-00-00

—
Out of stock

27

NUT, U

95604-05100-00

—
Out of stock

28

BOLT

2S3-27317-10-00

—
Out of stock

29

BRACKET 3

2S3-27443-01-00

1
Out of stock

30

STAY, STOP SWITCH

2S3-2144G-00-00

—
Out of stock

31

GROMMET

2S3-28187-00-00

—
Out of stock

32

COLLAR

90387-05046-00

—
Out of stock

33

PLATE, FOOTREST

2S3-27415-00-00

—
Out of stock

34

BOLT, BUTTON HEAD

92014-05020-00

—
Out of stock

35

BOLT

90109-085G6-00

—
Out of stock

36

REAR FOOTREST ASSY 1

2S3-27430-00-00

—
Out of stock

37

FOOTREST, REAR 1

5JJ-27431-10-00

—
Out of stock

38

PIN, CLEVIS (1Y8)

91701-06032-00

—
Out of stock

39

PIN, COTTER (648)

91490-20015-00

—
Out of stock

40

WASHER, SPECIAL

5JJ-27437-01-00

—
Out of stock

41

COLLAR (8H9)

90387-06697-00

—
Out of stock

42

BALL

93501-04011-00

—
Out of stock

43

SPRING, COMPRESSION (22N)

90501-12743-00

—
Out of stock

44

DAMPER, FOOTREST 2

4XV-27424-00-00

—
Out of stock

45

COLLAR

90387-08005-00

—
Out of stock

46

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

—
Out of stock

47

REAR FOOTREST ASSY 2

2S3-27440-00-00

—
Out of stock

48

FOOTREST, REAR 2

5JJ-27441-10-00

—
Out of stock

49

PIN, CLEVIS (1Y8)

91701-06032-00

—
Out of stock

50

PIN, COTTER (648)

91490-20015-00

—
Out of stock

51

WASHER, SPECIAL

5JJ-27437-01-00

—
Out of stock

52

COLLAR (8H9)

90387-06697-00

—
Out of stock

53

BALL

93501-04011-00

—
Out of stock

54

SPRING, COMPRESSION (22N)

90501-12743-00

—
Out of stock

55

DAMPER, FOOTREST 2

4XV-27424-00-00

—
Out of stock

56

COLLAR

90387-08005-00

—
Out of stock

57

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

—
Out of stock

58

PLATE 1

2S3-27445-00-00

—
Out of stock

59

PLATE 2

2S3-27446-00-00

—
Out of stock

60

SCREW(3XV)

90149-06298-00

—
Out of stock

61

SCREW(4DN)

90149-06302-00

—
Out of stock

62

BRACKET 1

2S3-2787A-00-00

—
Out of stock

63

CLAMP (1J7)

90464-16021-00

—
Out of stock

64

BRACKET 1

2S3-2172K-00-00

—
Out of stock

65

BRACKET 2

2S3-2172L-00-00

—
Out of stock
