2016 Yamaha V-MAX (VMX17GL) Fender Diagram

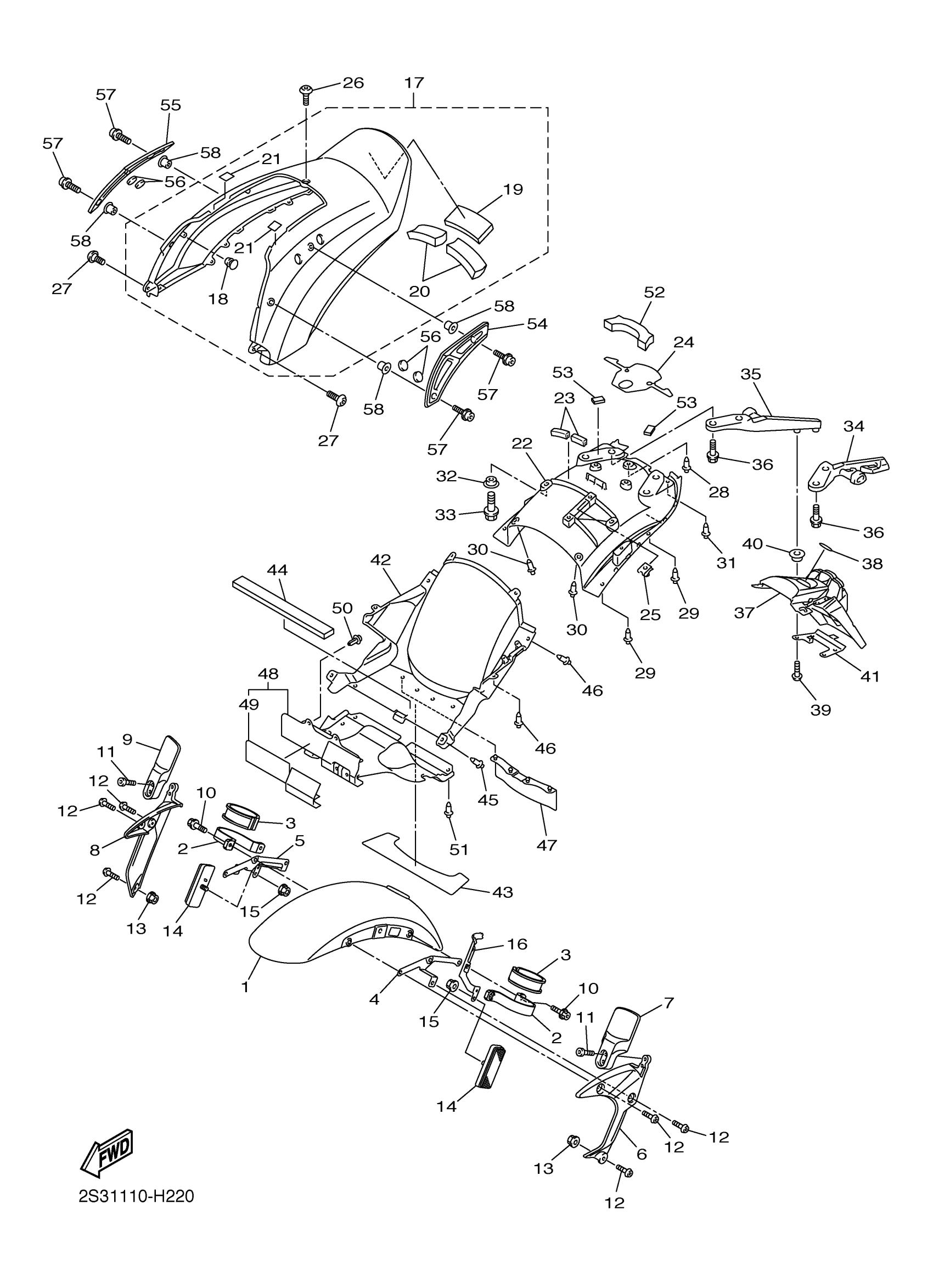

Find the part on the Fender diagram for your 2016 Yamaha V-MAX (VMX17GL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
FENDER, FRONT
2S3-21511-01-P7
—
Out of stock
6
ARM 1
2S3-23361-00-P0
—
Out of stock
8
ARM 2
2S3-23371-00-P0
1
Out of stock
15
NUT, U FLANGE
95604-05200-00
—
Out of stock
34
BRACKET, REAR STAY 2
2S3-21689-00-00
—
Out of stock
35
BRACKET 3
2S3-2161A-00-00
—
Out of stock
38
TUNING FORK MARK
4KN-2836B-10-00
—
Out of stock
54
COVER, SIDE 5
2S3-2171E-00-00
—
Out of stock
55
COVER, SIDE 6
2S3-2171X-00-00
—
Out of stock
