2011 Yamaha V-MAX (VMX17AG) Meter Diagram

← All diagrams

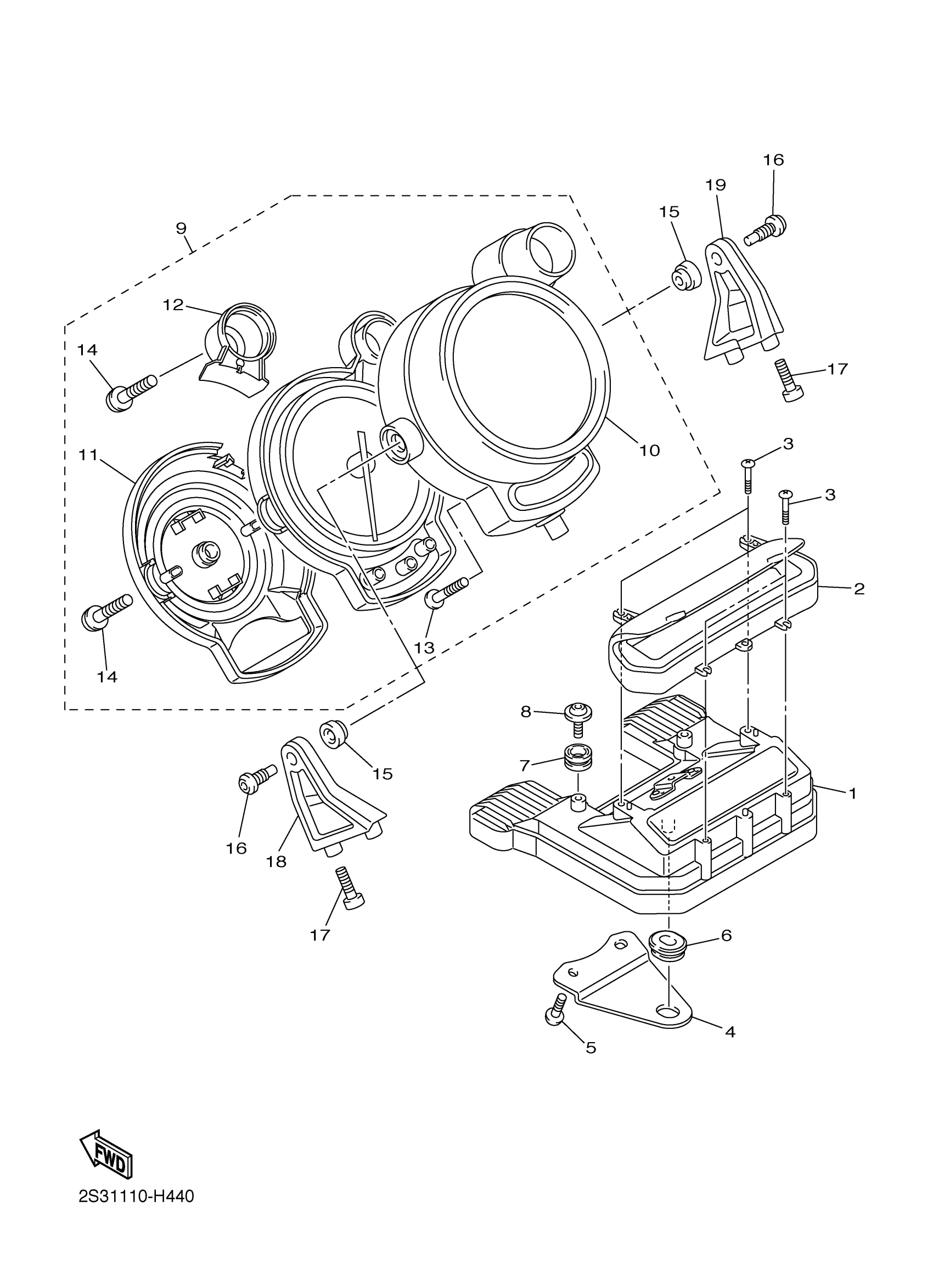

Find the part on the Meter diagram for your 2011 Yamaha V-MAX (VMX17AG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Yamaha V-MAX (VMX17AG) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER COMP.

2S3-8350A-00-00

1

$1,161.99

In stock

2

COVER, METER 2

2S3-83579-00-00

—

$26.68

In stock

3

SCREW, TAPPING

97707-30014-00

—

$0.71

In stock

4

BRACKET, METER 1

2S3-8355X-00-00

—

$7.68

In stock

5

BOLT, BUTTON HEAD

92012-06012-00

1

$2.49

In stock

6

GROMMET(4DN)

90480-01558-00

1

$3.95

In stock

7

GROMMET

90480-14017-00

1

$4.20

In stock

8

BOLT,HEX. SOCKET BUTTON

90111-06122-00

1

$4.25

In stock

9

SPEEDOMETER ASSY

2S3-83580-01-00

—

$1,042.46

In stock

10

CASE, METER UPPER

2S3-8353E-00-00

1

$376.12

In stock

11

COVER, TACHOMETER

2S3-83508-00-00

1

$256.71

In stock

12

COVER

2S3-8369W-00-00

—

$78.85

In stock

13

SCREW, TAPPING

4AS-83616-10-00

—

$2.15

In stock

14

SCREW, TAPPING

2S3-83616-00-00

—

$6.02

In stock

15

GROMMET

90480-11014-00

1

$5.32

In stock

16

BOLT,HEX. SOCKET BUTTON

90111-08068-00

—

$4.49

In stock

17

BOLT (33M)

91312-06014-00

—

$4.74

In stock

18

STAY, PLATE

2S3-23486-00-00

—

$89.18

In stock

19

STAY, PLATE

2S3-23487-00-00

—

$89.22

In stock
