2011 Yamaha V-MAX (VMX17AG) Electrical 3 Diagram

← All diagrams

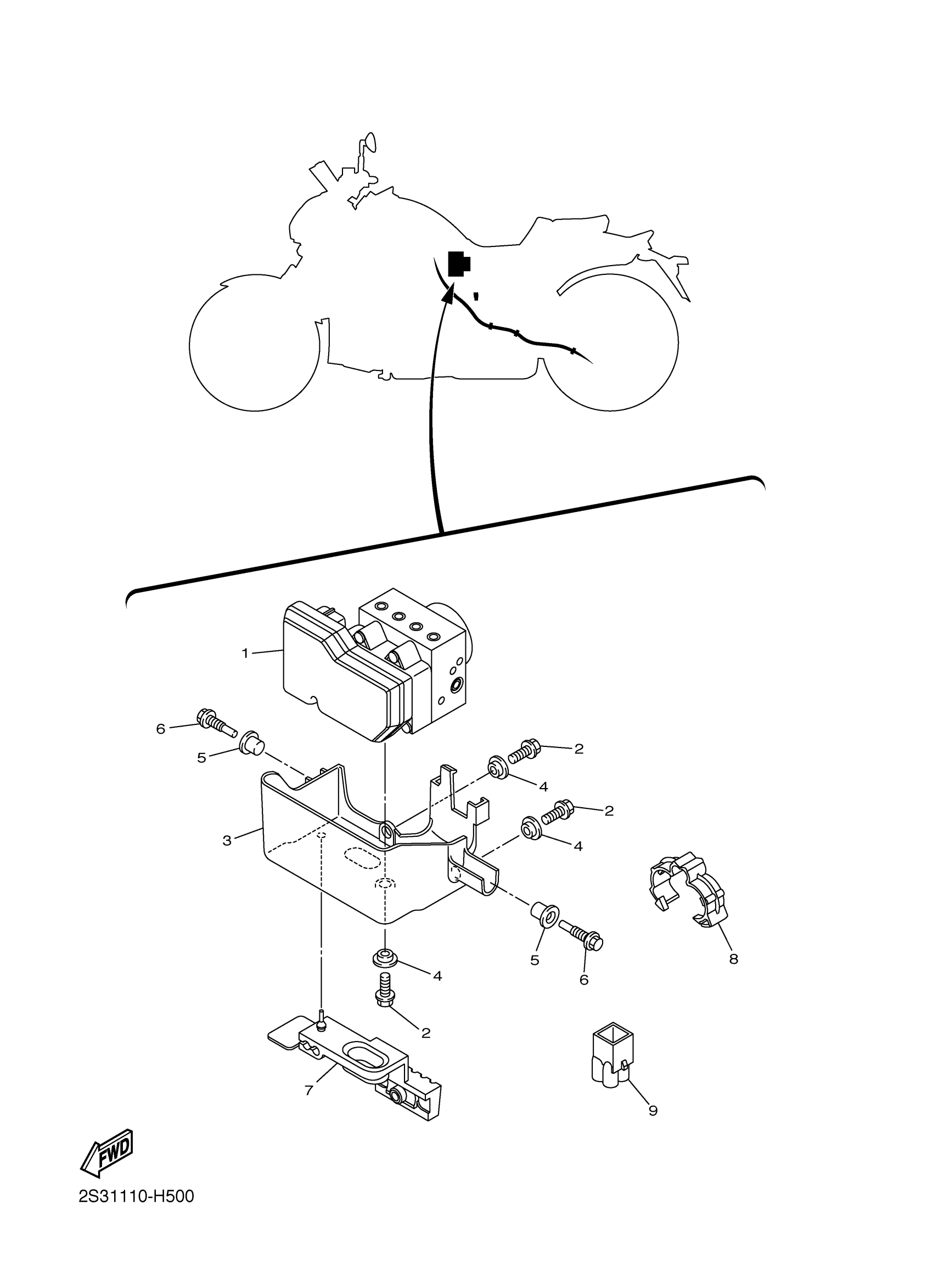

Find the part on the Electrical 3 diagram for your 2011 Yamaha V-MAX (VMX17AG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Yamaha V-MAX (VMX17AG) Electrical 3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HYDRAULIC UNIT ASSY

2S3-85930-18-00

1
Out of stock

2

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

3

BOX

2S3-2160E-00-00

—

$28.31

In stock

4

COLLAR

90387-06130-00

1

$7.23

In stock

5

DAMPER

2S3-82176-00-00

—

$3.91

In stock

6

BOLT

90109-08197-00

—

$6.17

In stock

7

DAMPER

2S3-85823-00-00

—

$20.20

In stock

8

CLAMP

90464-12013-00

1

$6.37

In stock

9

CONNECTOR

3YA-82378-00-00

—

$9.78

In stock
